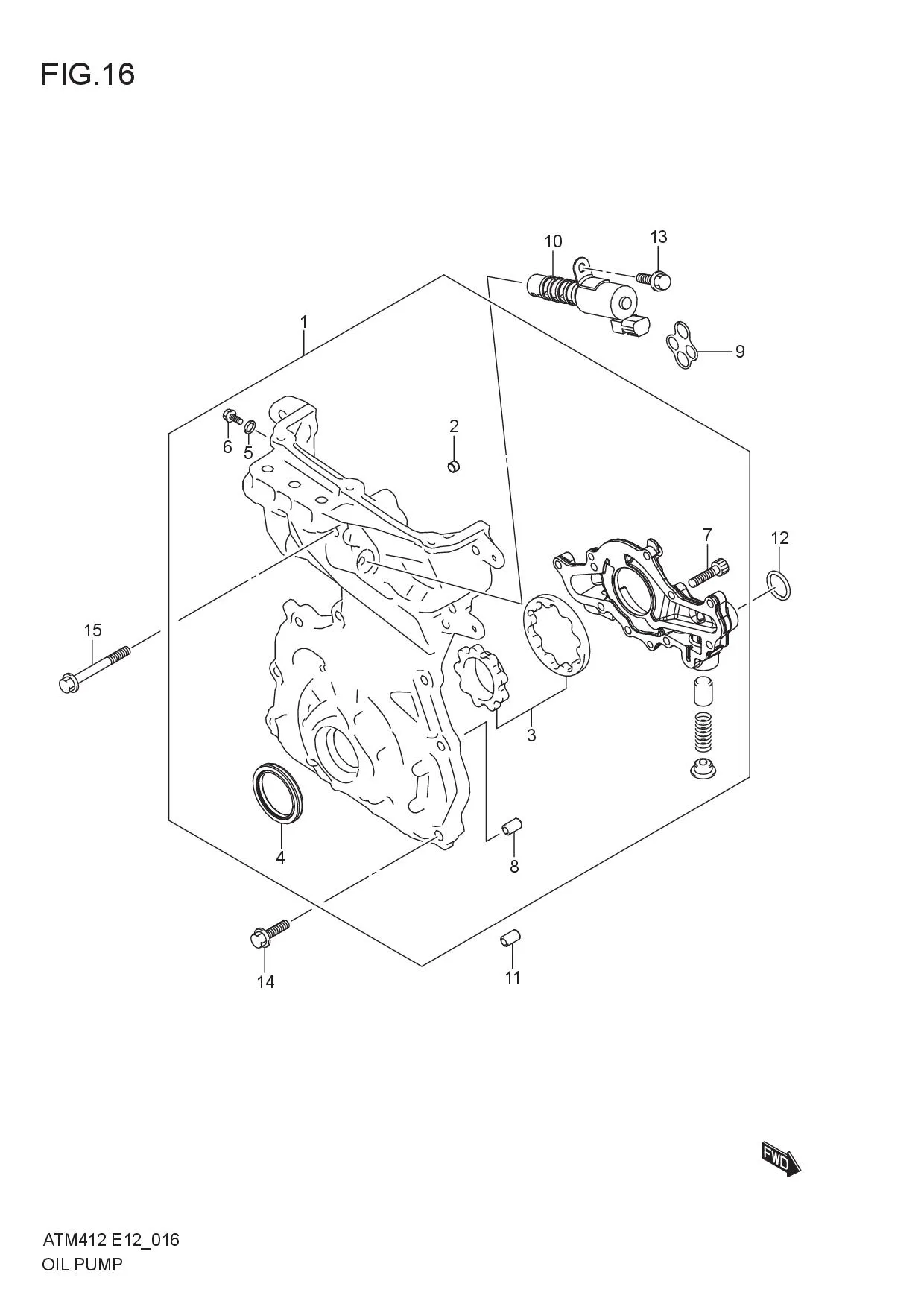

OIL PUMP

OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16100M68P02-000
SUB: 16100M68P01-000		 PUMP ASSY, OIL 1 Rp1.471.500
2 16116-69GE0-000
SUB: 16116B69GE0N000		 •FILTER, OIL GALLERY 3 Rp66.000
3 16130M83P00-000 •ROTOR SET, OIL PUMP 1 Rp275.500
4 16141M68K00-000 •SEAL, CRANKSHAFT FR OIL (41X53X6) 1 Rp53.500
5 09168-08016-000
SUB: 09168B08016N000		 •GASKET (8•2X14X1) 1 Rp25.000
6 01550-0816A-000
SUB: 01550B0816AN000		 •BOLT 1 Rp6.000
7 07130-0625A-000
SUB: 07130B0625AN000		 •BOLT 9 Rp3.500
8 09206-06005-000
SUB: 09206B06005N000		 •PIN (4X6X11) 2 Rp14.500
9 16118M74LB0-000 O RING, OIL PUMP CASE 1 Rp11.500
10 16550-58MA0-000
SUB: 16550B58MA0N000		 VALVE, OIL CONTROL 1 Rp695.500
11 09206-06005-000
SUB: 09206B06005N000		 PIN (4X6X11) 2 Rp14.500
12 16119M68K00-000 O RING, OIL GALLERY (D:2.5,ID:16.6) 1 Rp7.000
13 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
14 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 13 Rp4.000
15 01550-0885A-000 BOLT 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
