IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKET SETCYLINDER HEADCYLINDEROIL PANCRANK SHAFTCAM SHAFT/VALVECAM CHAINENGINE MOUNTINGINTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPE/FUEL INJECTOROIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

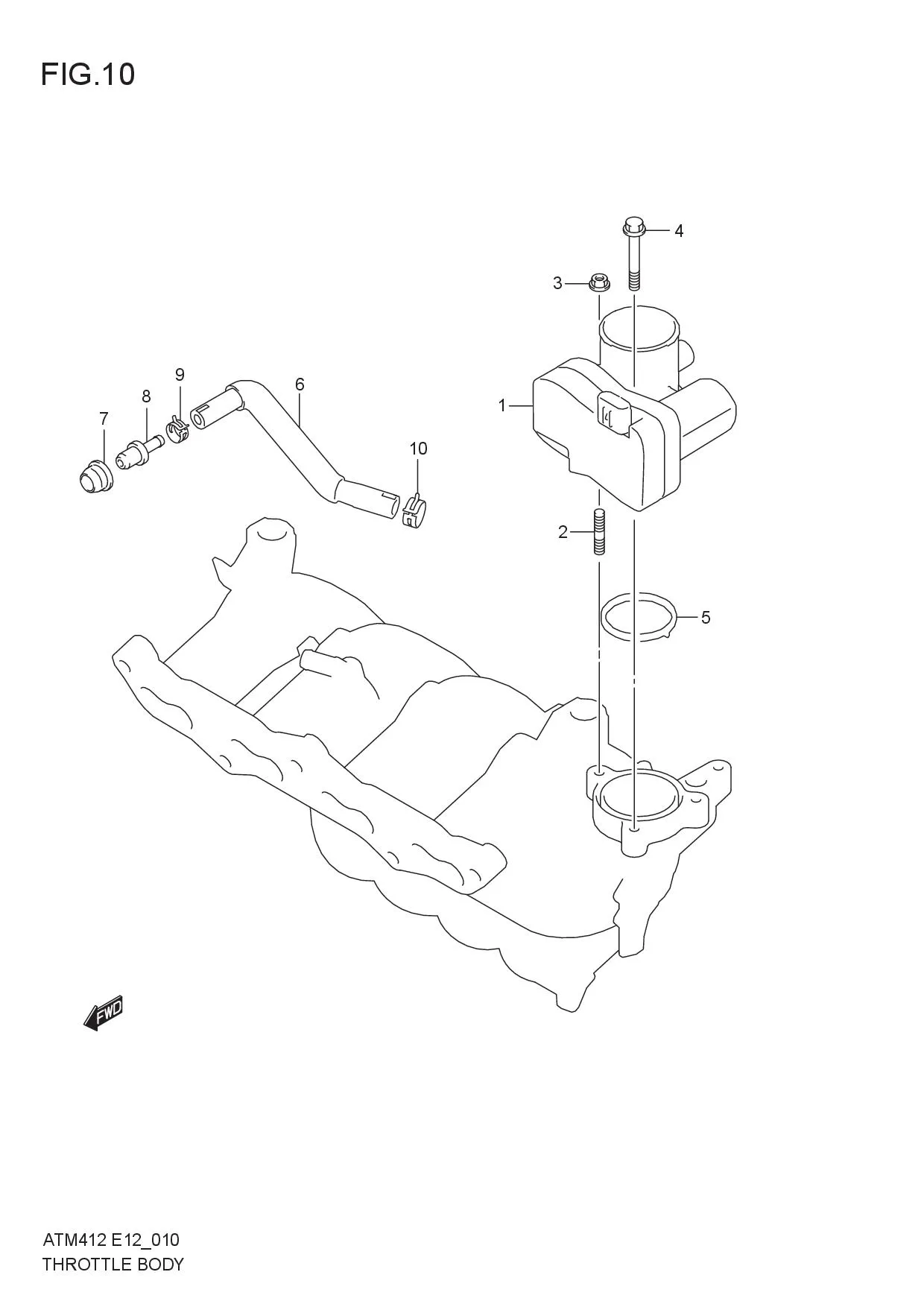

THROTTLE BODY

THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400M68P10-000
SUB: 13400M68P00-000		 BODY ASSY, THROTTLE 1 Rp1.836.000
2 01421-0620A-000
SUB: 01421B0620AN000		 STUD BOLT 2 Rp3.500
3 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000
4 01550-0645A-000 BOLT 1 Rp13.000
5 13421M68P00-000 GASKET, THROTTLE BODY 1 Rp45.000
6 11193M68P00-000 HOSE, PCV 1 Rp31.000
7 11198M79F00-000 SEAL, PCV VALVE 1 Rp16.500
8 18118-60M00-000 VALVE, PCV 1 Rp177.000
9 09401M13L04-000 CLIP 2 Rp6.000
10 09401M15418-000 CLIP, PCV HOSE 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
