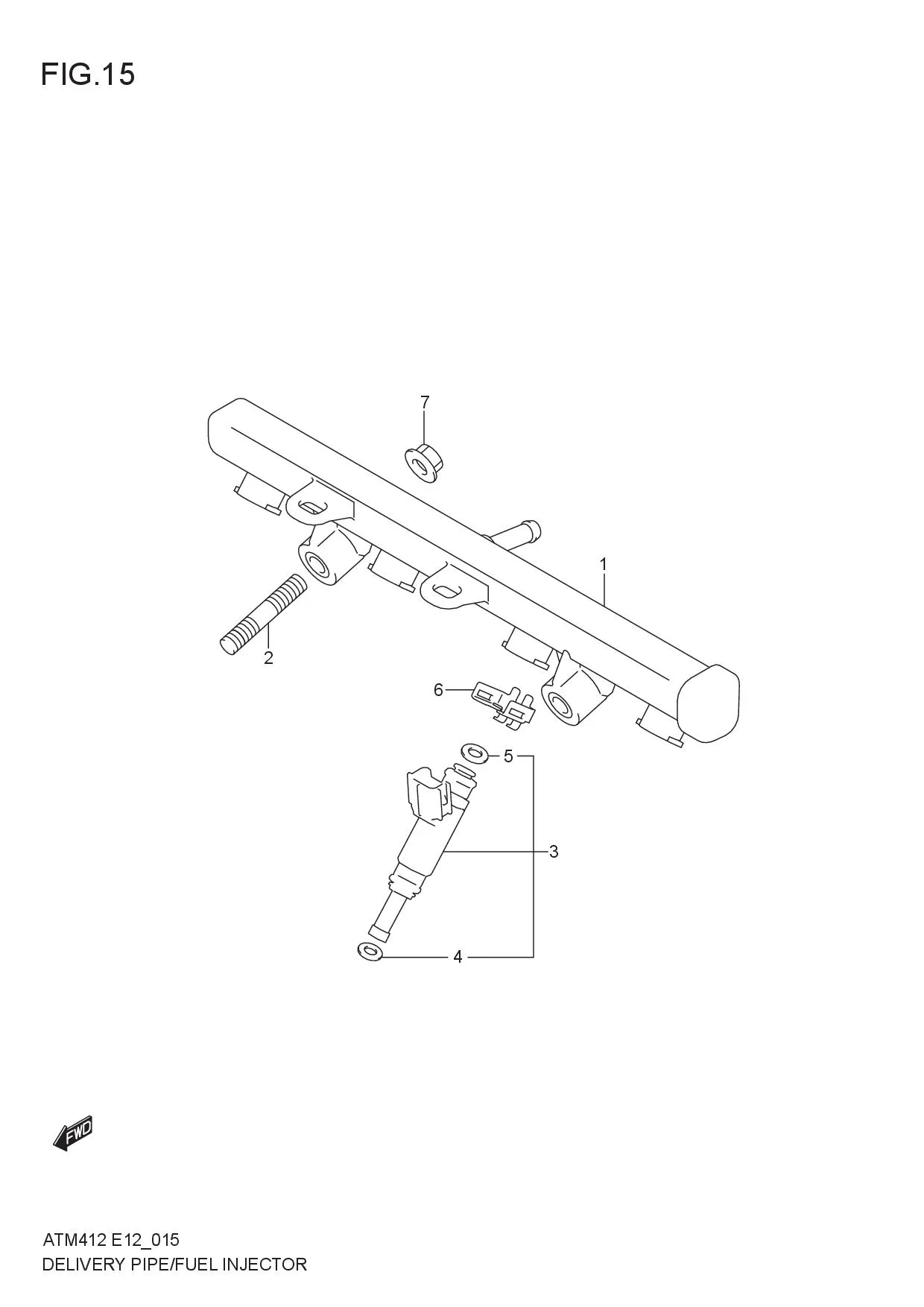

DELIVERY PIPE/FUEL INJECTOR

DELIVERY PIPE/FUEL INJECTOR
No No. Part Description Qty Price Per Pcs Remarks
1 15730M68P00-000 PIPE, FUEL DELIVERY 1 Rp224.500
2 01421-0830A-000 BOLT, DELIVERY PIPE 2 Rp16.500
3 15710M68P02-000
SUB: 15710M68P00-000		 INJECTOR ASSY, FUEL 4 Rp529.500
4 15716M68P01-000
SUB: 15716M68P00-000		 •O RING 4 Rp31.500
5 15717M68P00-000 •O RING 4 Rp18.500
6 15715-82M00-000 CLIP,FUEL INJECTOR 4 Rp30.500
7 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
