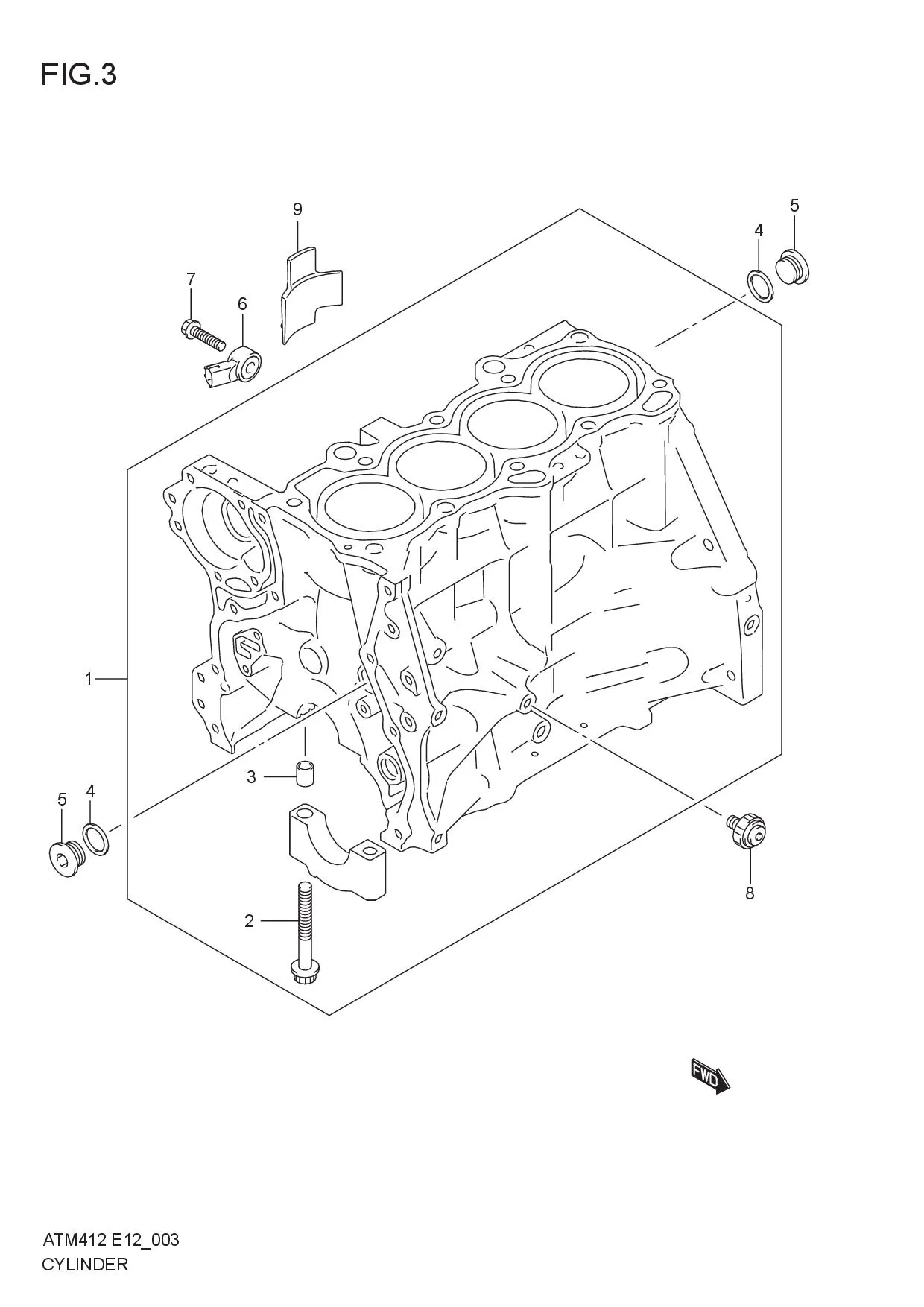

CYLINDER

CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11200M83K41-000 BLOCK ASSY, CYLINDER 1 Rp10.345.000
2 11261M58M01-000
SUB: 11261M58M00-000		 •BOLT, CRANK BEARING CAP 10 Rp17.000
3 04211M13189-000 •PIN 5 Rp9.000
4 11216M68K10-000 GASKET, M18 PLUG 2 Rp8.000
5 11119M79G10-000 PLUG (18X8) 2 Rp11.500
6 18640M68P00-000 SENSOR ASSY, KNOCK 1 Rp186.000
7 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 1 Rp3.500
8 37820M68K00-000 SWITCH ASSY, OIL PRESSURE 1 Rp199.500
9 11215M69L00-000
SUB: 11215M83P00-000		 SPACER, WATER JACKET 1 Rp23.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
