IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKET SETCYLINDER HEADCYLINDEROIL PANCRANK SHAFTCAM SHAFT/VALVECAM CHAINENGINE MOUNTINGINTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPE/FUEL INJECTOROIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

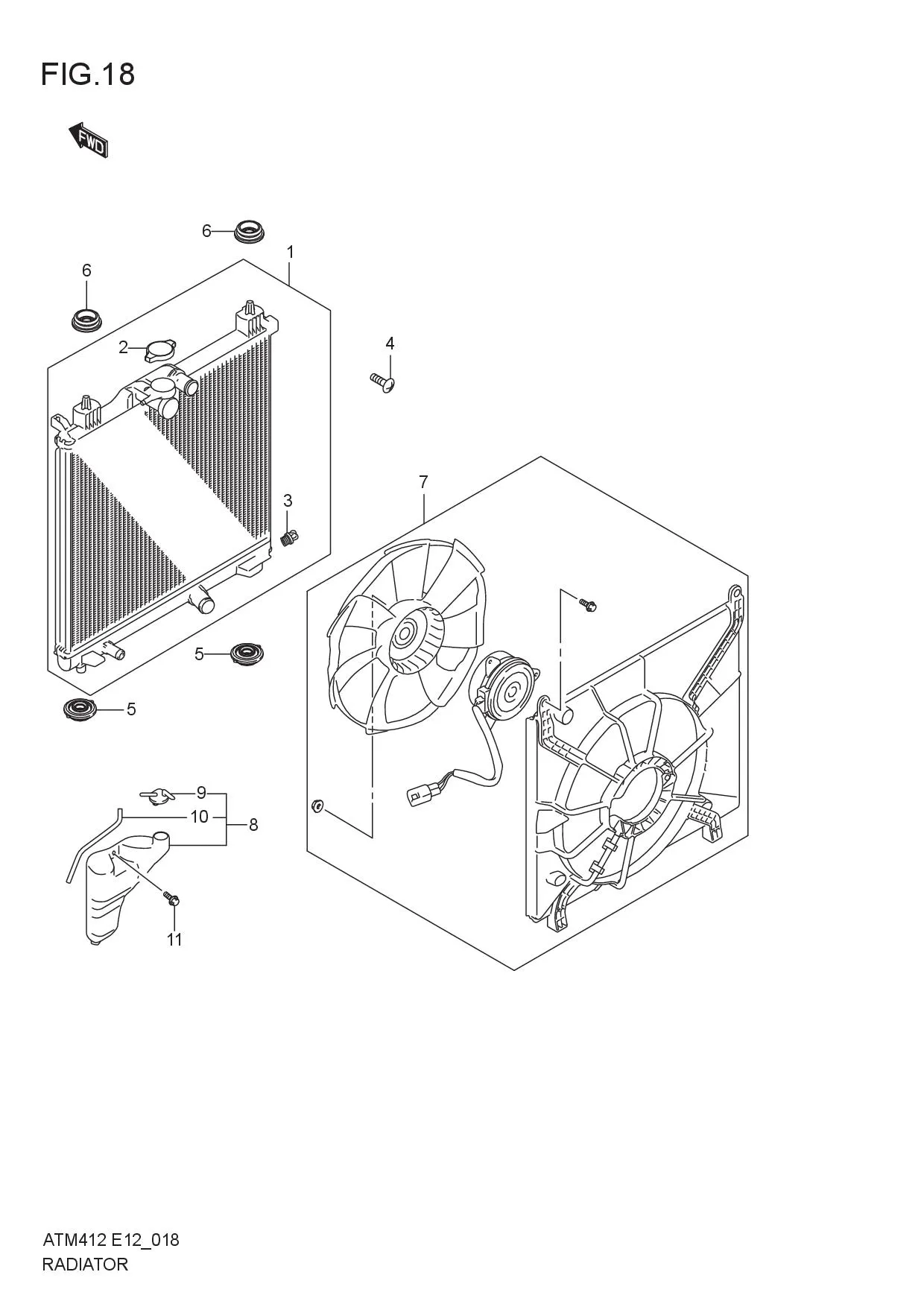

RADIATOR

RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1 17700M66R00-000 RADIATOR ASSY 1 Rp1.028.000
2 17920M77P00-000 •CAP, RADIATOR 1 Rp103.500
3 17751M63210-000 •DRAIN PULG ASSY 1 Rp9.000
4 09122-76003-000 SCREW (6X16) 4 Rp15.000
5 17878M68P00-000 MOUNT, RDTR SUPPORT LWR 2 Rp17.000
6 17879M66R00-000 MOUNT, RDTR SUPPORT UPR 2 Rp9.500
7 17100M66R00-000 FAN ASSY, ENGINE COOLING 1 Rp1.741.500
8 17930M81P01-000 TANK, WATER RESERVE 1 Rp98.000
9 17932-76G00-000
SUB: 17932B76G00N000		 •CAP, WATER RESERVE TANK 1 Rp5.500
10 09352M70111-260 •HOSE 1 Rp16.000
11 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
