Preview Engine Transmission Electrical Suspension Body

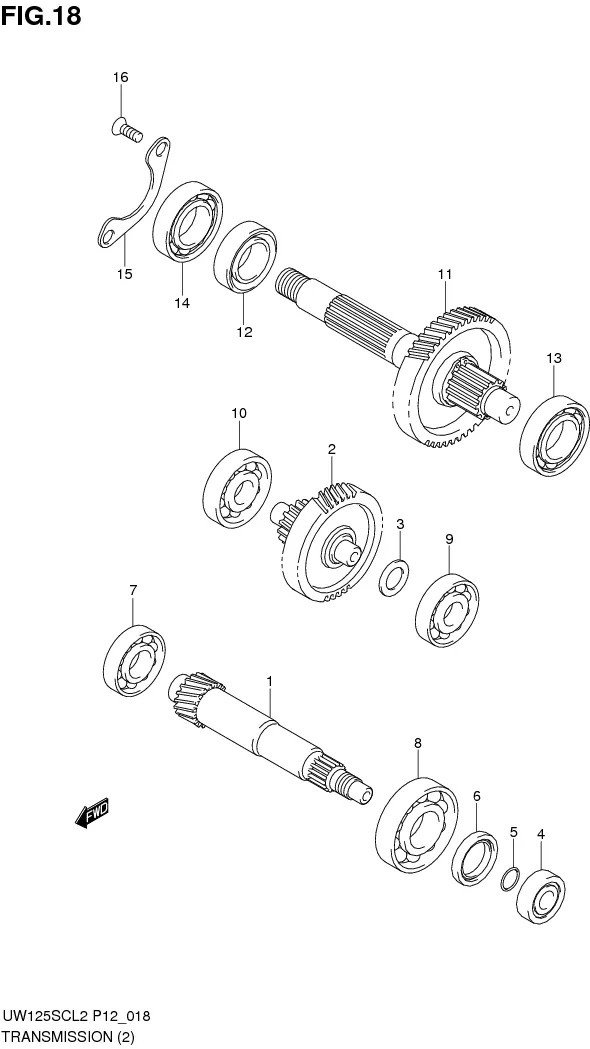

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	24131-41H00-000 SUB: 24131B41H00N000	SHAFT, DRIVE	1	Rp139.000
2	24150-13H00-000 SUB: 24150B13H00N000	SHAFT, IDLE	1	Rp184.500
3	09181-12167-000 SUB: 09181B12167N000	SHIM (12X20X1)	1	Rp8.500	LH
4	09262-10017-000 SUB: 09262B10017N000	BEARING (10X26X8)	1	Rp36.500	LH
5	09280-10016-000	O RING (D:1.9,ID:9.8)	1	Rp19.500
6	09283B20060N000	OIL SEAL (20X28X5)	1	-
7	08110-60020-000 SUB: 08110B60020N000	BEARING	1	Rp43.000	RH
8	09262-20160-000 SUB: 09262B20160N000	BEARING (20X47X14)	1	Rp50.500
9	08113B62017N000	BEARING	1	-	LH
10	08113B62017N000	BEARING	1	-	RH
11	24140-13H20-000 SUB: 24140B13H20N000	SHAFT COMP,REAR AXLE	1	Rp253.000
12	64841B28E00N000	SEAL, AXLE SHAFT OIL	1	Rp18.500
13	08110B62030N000	BEARING	1	Rp44.500	LH
14	09262-22036-000 SUB: 09262B22036N000	BEARING	1	Rp88.500	RH
15	24751-09J00-000 SUB: 24751B07900N000	RETAINER, AXLE SHAFT BEARING	1	Rp13.500
16	02122-0616A-000 SUB: 02122B0616AN000	SCREW	2	Rp3.500
