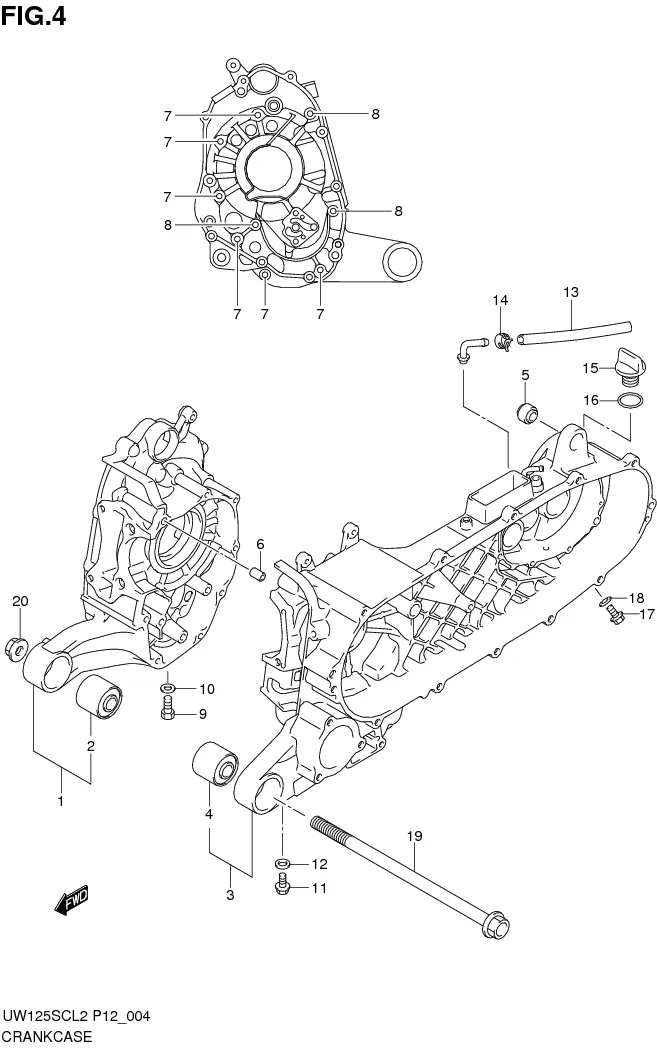

FIG.4 CRANKCASE

FIG.4 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 12200B46G20N000
CRANKSHAFT ASSY 1 -
2 12161-46G50-000
SUB: 12161B46G00N000
CONNROD 1 Rp87.000
3 12210-46G00-0A0 PIN, CRANK 1 Rp142.500
4 12221-46G01-000
SUB: 12221B46G01N000
CRANKSHAFT RH 1 Rp207.000
5 DISCONTINUE
SUB: 12260B46G20N000
CRANKSHAFT LH 1 -
6 09263-28034-0B0
SUB: 09263B28034N0B0
BEARING (28X34X17) 1 Rp43.000
7-3 DISCONTINUE
SUB: 09181-35103-000
SHIM (35X42X0.6) 1 -
7-17 09181-35125-000 SHIM (35X42X1.3) 1 Rp22.500
7-4 DISCONTINUE
SUB: 09181-35026-000
SHIM (35X42X0.65) 1 -
7-5 09181-35104-000 SHIM (35X42X0.7) 1 Rp10.500
7-6 09181-35105-000 SHIM (35X42X0.75) 1 Rp10.000
7-7 DISCONTINUE
SUB: 09181-35106-000
SHIM (35X42X0.8) 1 -
7-8 DISCONTINUE
SUB: 09181-35107-000
SHIM (35X42X0.85) 1 -
7-9 DISCONTINUE
SUB: 09181-35108-000
SHIM (35X42X0.9) 1 -
7-10 DISCONTINUE
SUB: 09181-35109-000
SHIM (35X42X0.95) 1 -
7-11 09181-35110-000 SHIM (35X42X1) 1 Rp34.000
7-12 09181-35113-000 SHIM (35X42X1.05) 1 Rp10.500
7-13 09181-35116-000 SHIM (35X42X1.1) 1 Rp28.000
7-14 09181-35118-000 SHIM (35X42X1.15) 1 Rp22.500
7-15 DISCONTINUE
SUB: 09181-35120-000
SHIM (35X42X1.2) 1 -
7-16 DISCONTINUE
SUB: 09181-35123-000
SHIM (35X42X1.25) 1 -
7-2 09181-35025-000 SHIM (35X42X0.55) 1 Rp18.000
7-1 09181-35101-000 SHIM (35X42X0.5) 1 Rp14.500
7 01547-0655A-000
SUB: 01547B0655AN000
BOLT 6 Rp7.500
8 09262-25L02-000
SUB: 09262B25165N000
BEARING 1 Rp73.500
9 09262-35088-000
SUB: 09262B35088N000
BEARING 1 Rp88.500
10 09283-22033-000
SUB: 09283B22033N000
OIL SEAL (22X32X6.5) 1 Rp73.000
11 09283B25095N000 OIL SEAL (25X42X6) 1 -
12 12111B46G11N0F0000 PISTON 1 Rp47.600
13 12140-46G10-000
SUB: 12140B46G10N000
RING SET, PISTON 1 Rp42.500
14 12151-20G00-000
SUB: 12151B20G00N000
PIN, PISTON 1 Rp18.000
15 09381-14001-000
SUB: 09381B14001N000
CIRCLIP 2 Rp2.500
16 09280-14011-000 O RING (D:2.5,ID:13.8) 1 Rp7.500
17 01550-0812A-000
SUB: 01550B0812AN000
PLUG 1 Rp3.500
18 09168-08016-000 GASKET (8.2X14X1) 1 Rp25.000
19 09103-12046-000
SUB: 64711B09G00N000
BOLT, ENG MTG (L:204) 1 Rp21.500
20 08319-3112A-000
SUB: 08319B3112AN000
NUT 1 Rp7.000
