HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 AIR CLEANERFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

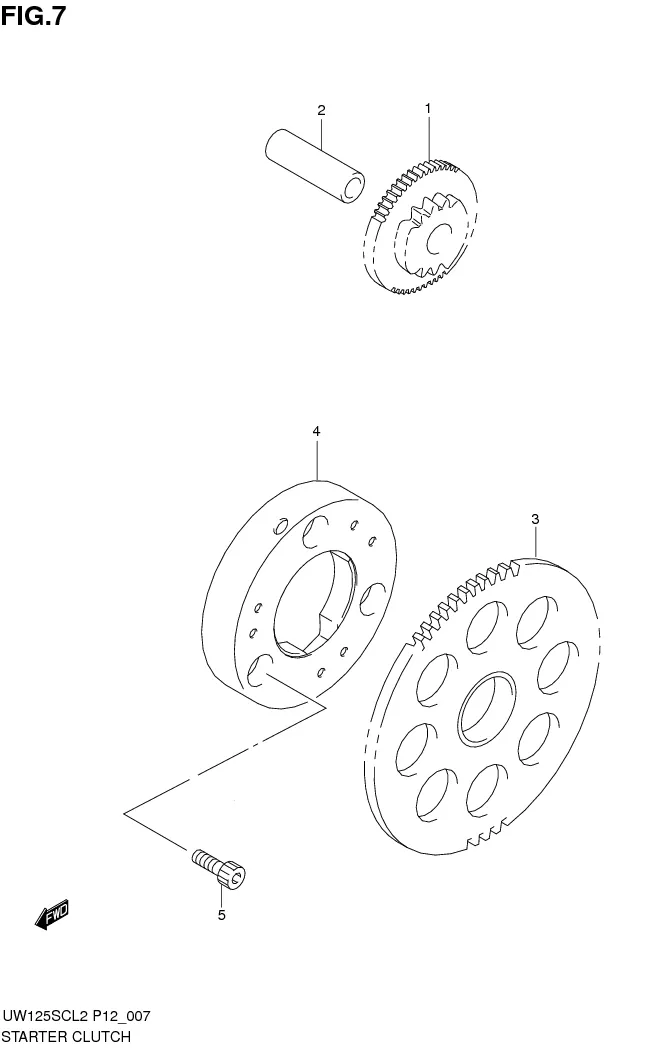

FIG.7 STARTER CLUTCH

FIG.7 STARTER CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 12611-46G20-000
SUB: 12611-46G00-000		 GEAR, STARTER IDLE 1 Rp74.500
2 09206-13007-000
SUB: 09206B13007N000		 PIN 1 Rp35.500
3 12620-46G10-000
SUB: 12620B46G10N000		 GEAR COMP,STARTER CLUTCH 1 Rp145.500
4 12630-41H00-000
SUB: 12630B41H00N000		 CLUTCH,STARTER ONE WAY 1 Rp250.000
5 07130-0612A-000
SUB: 07130B0612AN000		 BOLT 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
