HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 AIR CLEANERFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

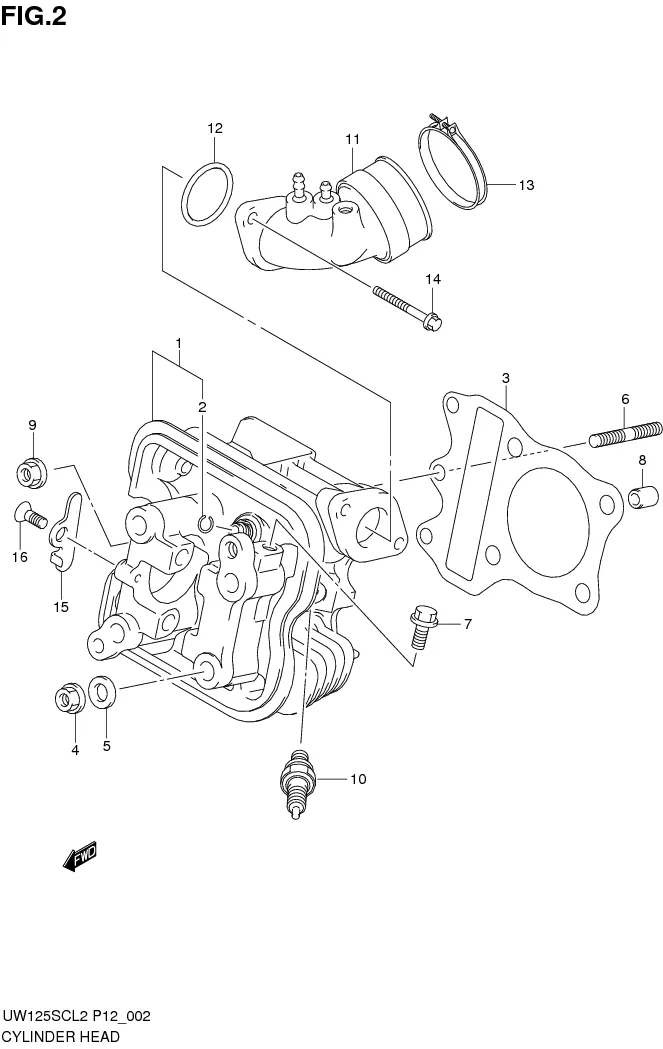

FIG.2 CYLINDER HEAD

FIG.2 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11110B13H20N000		 HEAD, CYLINDER 1 -
2 09381-10004-000
SUB: 09381B10004N000		 ?CIRCLIP 2 Rp3.000
3 11141-46G10-000
SUB: 11141B46G10N000		 GASKET, CYLINDER HEAD 1 Rp20.500
4 08316-1008A-000
SUB: 08316B1008AN000		 NUT 4 Rp3.500
5 09160-08121-000
SUB: 09160-08120-000		 WASHER (8.5X18X2) 4 Rp6.500
6 01421-0630B-000
SUB: 01421B0630AN000		 STUD BOLT 1 Rp3.500
7 01547-0610A-000
SUB: 01547B0610AN000		 PLUG 1 Rp3.000
8 04211-11129-000
SUB: 04211B11129N000		 PIN 2 Rp2.000
9 08316-1006A-000
SUB: 08316B1006AN000		 NUT 3 Rp2.000
10-1 09482-00710-000
SUB: 09482-00710L000		 SPARK PLUG (C6HSA) 1 Rp24.500
10-2 09482-00810-000
SUB: 09482-00810L000		 SPARK PLUG (U20FS-U) 1 Rp18.500
11 13110-13H00-000
SUB: 13110B13H00N000		 PIPE, INTAKE 1 Rp284.000
12 09280-28005-000
SUB: 09280B28005N000		 O RING (D:2.4,ID:27.7) 1 Rp4.000
13 DISCONTINUE
SUB: 13170B13H00N000		 CLAMP, INTAKE PIPE 1 -
14 01547-0630A-000
SUB: 01547B0630AN000		 BOLT 2 Rp6.500
15 12862-33G00-000
SUB: 12862B33G00N000		 RETAINER, CAMSHAFT 1 Rp23.500
16 02122-0612A-000
SUB: 02122B0612AN000		 SCREW 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
