HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 AIR CLEANERFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

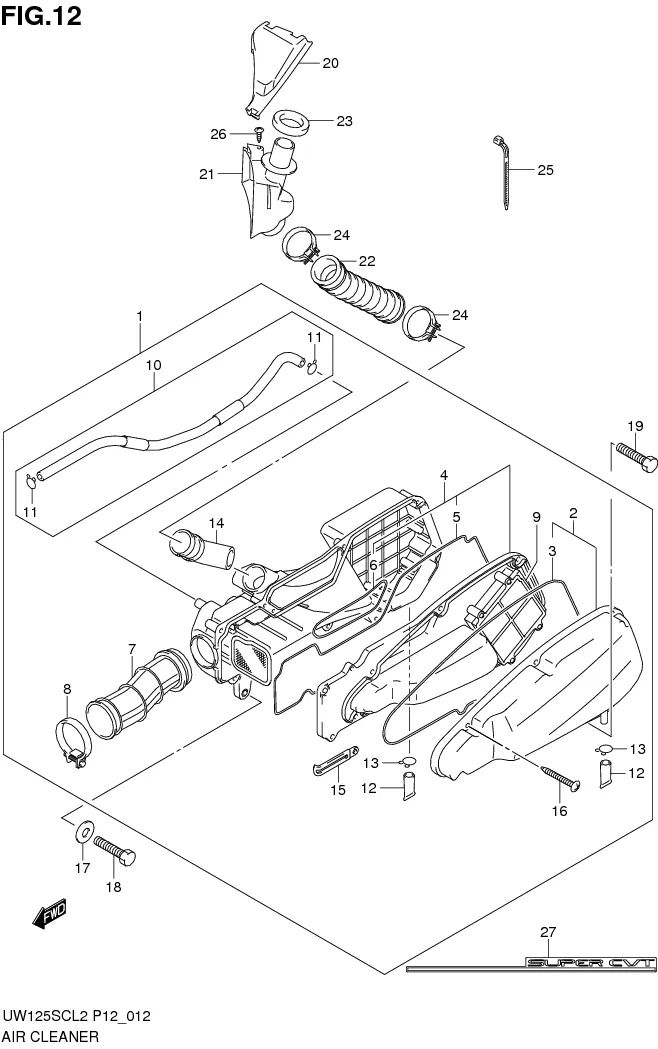

FIG.12 AIR CLEANER

FIG.12 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-13H10-000
SUB: 13700B13H10N000		 CLEANER ASSY, AIR 1 Rp403.000
2 13740-13H00-000
SUB: 13740B13H00N000		 ?CAP, AIR CLEANER 1 Rp64.500
3 13746-13H00-000
SUB: 13746B13H00N000		 ??GASKET, CAP 1 Rp8.500
4 13780-13H10-000
SUB: 13780B13H10N000		 ?FILTER ASSY, AIR CLEANER 1 Rp78.500
5 13786-13H00-000
SUB: 13786B13H00N000		 ??GASKET, FILTER A 1 Rp9.500
6 13787-13H00-000
SUB: 13787B13H00N000		 ??GASKET, FILTER B 1 Rp5.500
7 13881-13H00-000
SUB: 13881B13H00N000		 ?TUBE, OUTLET 1 Rp35.500
8 13826-46G01-000
SUB: 09402B48208N000		 ?CLAMP 1 Rp12.000
9 13810-13H10-000
SUB: 13810B13H10N000		 ?TRAP, FLAME 1 Rp17.500
10 13850-13H10-000
SUB: 13850B13H10N000		 ?TUBE, BREATHER 1 Rp27.500
11 09401-14301-000
SUB: 09401B14301N000		 ??CLIP 2 Rp4.500
12 13871-10J00-000
SUB: 13871B10J00N000		 ?PLUG, DRAIN 2 Rp4.000
13 13824-18910-000
SUB: 13824B18910N000		 ?CLIP 2 Rp3.500
14 13895-13H01-000
SUB: 13895B13H01N000		 ?TUBE, INLET 1 Rp18.500
15 09404-06429-000
SUB: 09404B06429N000		 ?CLAMP (L:45) 1 Rp15.000
16 03541-0530B-000
SUB: 03541B0530BN000		 ?SCREW 10 Rp3.500
17 09160-06153-000
SUB: 09160B06153N000		 WASHER (6.5X16X1.2) 1 Rp5.500
18 01547-0625A-000
SUB: 01547B0625BN000		 BOLT 1 Rp6.500
19 01547-0625A-000
SUB: 01547B0625BN000		 BOLT 1 Rp6.500
20 13895-13H00-000
SUB: 13895B13H00N000		 COVER, INLET 1 Rp17.500
21 13892-13H10-000
SUB: 13892B13H10N000		 DUCT, AIR CLEANER INLET 1 Rp36.500
22 13893-13H01-000
SUB: 13893B13H01N000		 JOINT, INLET 1 Rp35.000
23 13896-13H00-000
SUB: 13896B13H00N000		 CUSHION, CLEANER INLET 1 Rp11.500
24 09402-44208-000
SUB: 09402B44208N000		 CLAMP 2 Rp8.000
25 09407-18402-000 CLAMP (L:165) 1 Rp8.000
26 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 1 Rp3.500
27-1 68166-13H00-000
SUB: 68166B13H00N000		 TAPE, CAP AIR CLEANER 1 Rp8.500
27-2 68166B13H10N000 TAPE, CAP AIR CLEANER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
