HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 AIR CLEANERFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

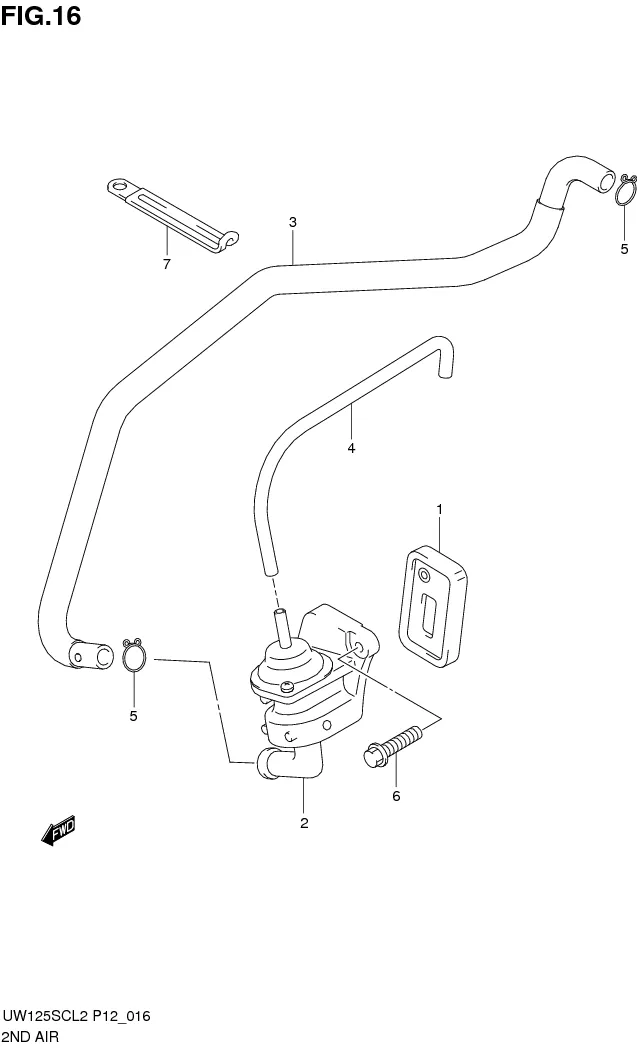

FIG.16 2ND AIR

FIG.16 2ND AIR
No No. Part Description Qty Price Per Pcs Remarks
1 18450-13H10-000
SUB: 18450B13H10N000		 VALVE ASSY, 2ND AIR REED 1 Rp61.000
2 18510-13H11-000
SUB: 18510B13H11N000		 VALVE ASSY, AIR CUT 1 Rp132.000
3 18711-13H10-000
SUB: 18711B13H10N000		 HOSE 2ND AIR CLEANER 1 Rp50.000
4 18762-13H20-000
SUB: 18762B13H20N000		 HOSE 2ND AIR VACUUM 1 Rp17.000
5 09401-15101-000
SUB: 09401B15101N000		 CLIP 2 Rp3.000
6 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500
7 DISCONTINUE
SUB: 09404B06435N000		 CLAMP (L:135) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
