HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 AIR CLEANERFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

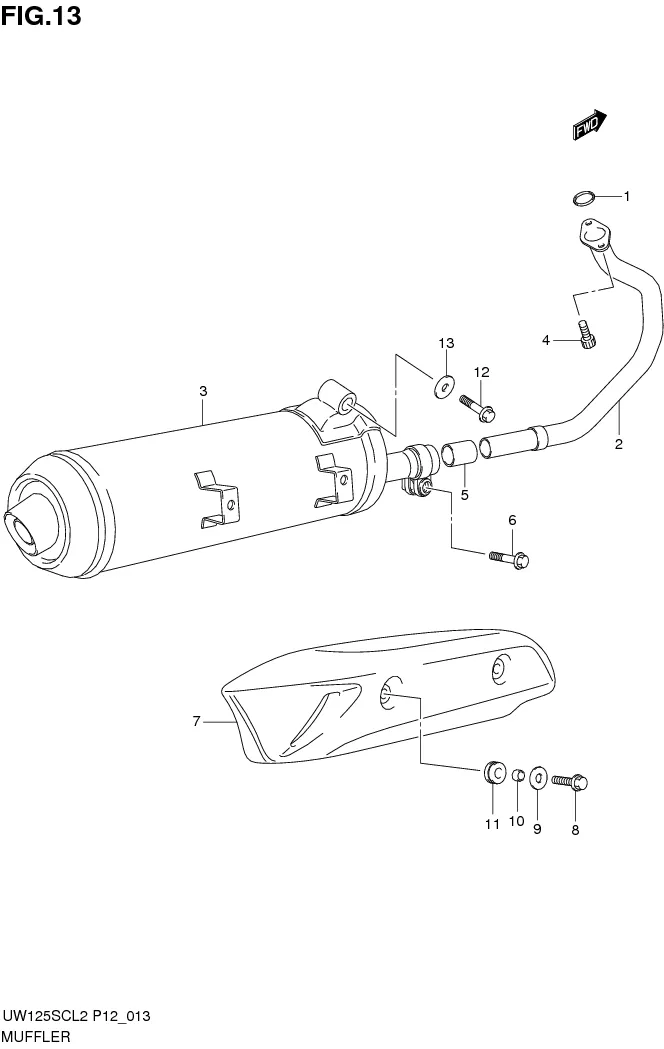

FIG.13 MUFFLER

FIG.13 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-09D10-000
SUB: 14181B09D10N000		 GASKET, EXH PIPE 1 Rp9.000
2 DISCONTINUE
SUB: 14150B13H00N000		 PIPE, EXHAUST 1 -
3 DISCONTINUE
SUB: 14310B13H10N000		 BODY, MUFFLER 1 -
4 07130-0820A-000
SUB: 07130B0820AN000		 BOLT 2 Rp4.000
5 14771-08G00-000 CONNECTOR, MUFFLER 1 Rp86.500
6 01550-0835B-000
SUB: 01550B0835BN000		 BOLT 1 Rp4.500
7 14781-13HB0-000
SUB: 14781B13HB0N000		 COVER, MUFFLER 1 Rp73.000
8 01547-0620B-000
SUB: 01547B0620BN000		 BOLT 2 Rp6.500
9 09160B06151N000 WASHER (6.5X18X1) 2 -
10 09180-06350-000
SUB: 09180B06350N000		 SPACER (6.5X9X9.5) 2 Rp5.000
11 09320-08503-000
SUB: 09320B08503N000		 CUSHION 2 Rp9.000
12 01550-0845B-000
SUB: 01550B0845BN000		 BOLT 3 Rp6.500
13 08322M0108A-000
SUB: 08322-0108B-000		 WASHER 3 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
