HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 AIR CLEANERFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

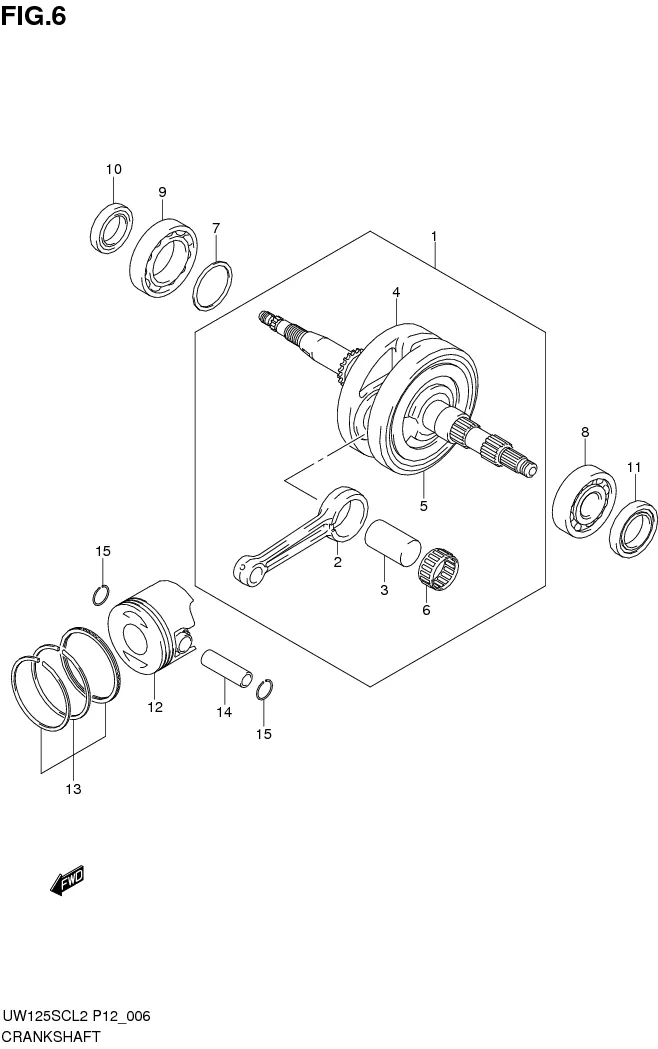

FIG.6 CRANKSHAFT

FIG.6 CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 12200B46G20N000		 CRANKSHAFT ASSY 1 -
2 12161-46G50-000
SUB: 12161B46G00N000		 CONNROD 1 Rp87.000
3 12210-46G00-0A0 PIN, CRANK 1 Rp142.500
4 12221-46G01-000
SUB: 12221B46G01N000		 CRANKSHAFT RH 1 Rp207.000
5 DISCONTINUE
SUB: 12260B46G20N000		 CRANKSHAFT LH 1 -
6 09263-28034-0B0
SUB: 09263B28034N0B0		 BEARING (28X34X17) 1 Rp43.000
7-10 DISCONTINUE
SUB: 09181-35109-000		 SHIM (35X42X0.95) 1 -
7-17 09181-35125-000 SHIM (35X42X1.3) 1 Rp22.500
7-16 DISCONTINUE
SUB: 09181-35123-000		 SHIM (35X42X1.25) 1 -
7-15 DISCONTINUE
SUB: 09181-35120-000		 SHIM (35X42X1.2) 1 -
7-14 09181-35118-000 SHIM (35X42X1.15) 1 Rp22.500
7-13 09181-35116-000 SHIM (35X42X1.1) 1 Rp28.000
7-12 09181-35113-000 SHIM (35X42X1.05) 1 Rp10.500
7-11 09181-35110-000 SHIM (35X42X1) 1 Rp34.000
7-8 DISCONTINUE
SUB: 09181-35107-000		 SHIM (35X42X0.85) 1 -
7-1 09181-35101-000 SHIM (35X42X0.5) 1 Rp14.500
7-2 09181-35025-000 SHIM (35X42X0.55) 1 Rp18.000
7-3 DISCONTINUE
SUB: 09181-35103-000		 SHIM (35X42X0.6) 1 -
7-4 DISCONTINUE
SUB: 09181-35026-000		 SHIM (35X42X0.65) 1 -
7-5 09181-35104-000 SHIM (35X42X0.7) 1 Rp10.500
7-6 09181-35105-000 SHIM (35X42X0.75) 1 Rp10.000
7-7 DISCONTINUE
SUB: 09181-35106-000		 SHIM (35X42X0.8) 1 -
7-9 DISCONTINUE
SUB: 09181-35108-000		 SHIM (35X42X0.9) 1 -
8 09262-25L02-000
SUB: 09262B25165N000		 BEARING 1 Rp73.500 LH
9 09262-35088-000
SUB: 09262B35088N000		 BEARING 1 Rp88.500 RH
10 09283-22033-000
SUB: 09283B22033N000		 OIL SEAL (22X32X6.5) 1 Rp73.000 RH
11 09283B25095N000 OIL SEAL (25X42X6) 1 - LH
12 12111B46G11N0F0000 PISTON 1 Rp47.600
13 12140-46G10-000
SUB: 12140B46G10N000		 RING SET, PISTON 1 Rp42.500
14 12151-20G00-000
SUB: 12151B20G00N000		 PIN, PISTON 1 Rp18.000
15 09381-14001-000
SUB: 09381B14001N000		 CIRCLIP 2 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
