HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 AIR CLEANERFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

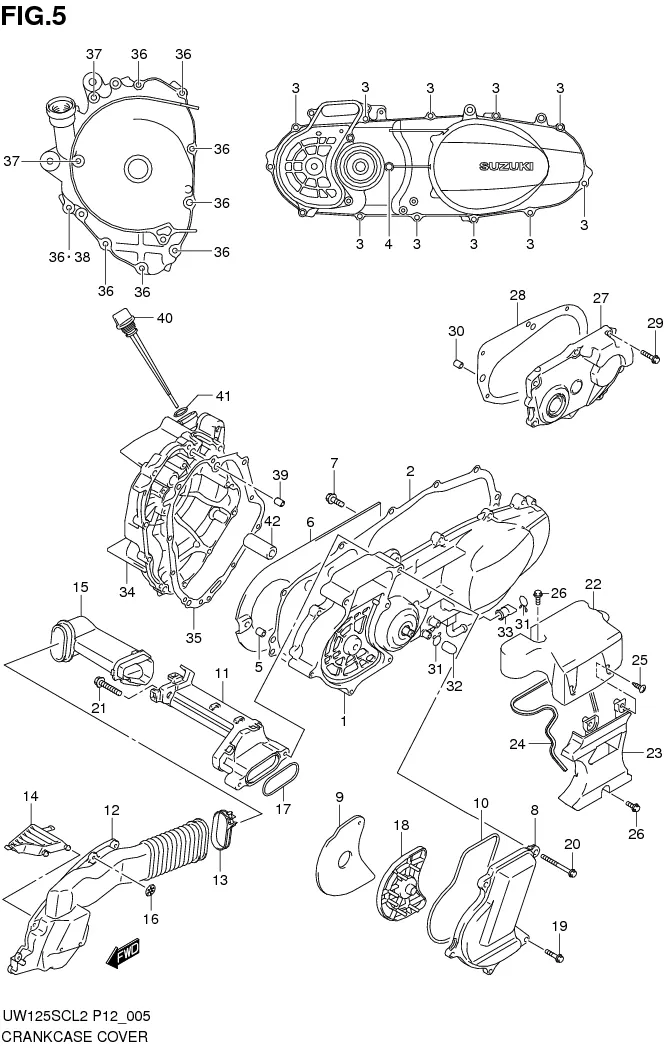

FIG.5 CRANKCASE COVER

FIG.5 CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11340-13H50-000
SUB: 11340B13H50N000		 COVER, CLUTCH 1 Rp457.000
2 11482-41H10-000
SUB: 11482B41H10N000		 GASKET, CLUTCH COVER 1 Rp43.000
3 01547-0625A-000
SUB: 01547B0625BN000		 BOLT 10 Rp6.500
4 01547-0630A-000
SUB: 01547B0630BN000		 BOLT 1 Rp6.500
5 09206-08008-000
SUB: 09206B08008N000		 PIN 2 Rp4.000
6 11346-46G00-000
SUB: 11346B46G00N000		 PLATE, CLUTCH COVER AIR INTAKE 1 Rp24.500
7 01547-0610A-000
SUB: 01547B0612AN000		 BOLT 3 Rp3.000
8 DISCONTINUE
SUB: 11381B46G00N000		 COVER, BELT COOLING 1 -
9 11382-13H00-000
SUB: 11382B13H00N000		 FILTER, BELT COOLING 1 Rp6.500
10 11383-46G00-000
SUB: 11383B46G00N000		 O RING, BELT COOLING COVER 1 Rp8.000
11 DISCONTINUE
SUB: 11410B13H10N000		 DUCT, BELT COOLING 1 -
12 DISCONTINUE
SUB: 11414B13H10N000		 DUCT, BELT COOLING NO.4 1 -
13 DISCONTINUE
SUB: 11416B13H10N000		 CLAMP, BELT COOLING DUCT 1 -
14 11417-13H10-000
SUB: 11417B13H10N000		 LOUVER, BELT COOLING DUCT 1 Rp11.500
15 DISCONTINUE
SUB: 11419B13H10N000		 DUCT, BELT COOLING NO.3 1 -
16 09148-03010-000
SUB: 09148B03010N000		 NUT 9 Rp5.500
17 11385-46G00-000
SUB: 11385B46G00N000		 O RING, BELT COOLING DUCT 1 Rp4.000
18 11386-46G00-000
SUB: 11386B46G00N000		 PLATE, BELT COOLING COVER 1 Rp9.500
19 01547-0620B-000
SUB: 01547B0620BN000		 BOLT 2 Rp6.500
20 01547-0665A-000
SUB: 01547B0665BN000		 BOLT 4 Rp7.500
21 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 1 Rp3.500
22 11361-13H00-000
SUB: 11361B13H00N000		 COVER, BOLT COOLING DUCT NO.1 1 Rp12.000
23 11362-13H00-000
SUB: 11362B13H00N000		 COVER, BELT COOLING DUCT NO.2 1 Rp13.500
24 11363-46G00-000 MOLD, BELT COOLING DUCT COVER 1 Rp13.000
25 03141-0516B-000 SCREW 2 Rp3.500
26 01547-0616A-000
SUB: 01547B0616AN000		 BOLT 3 Rp6.500
27 11431-46G00-000
SUB: 11431B46G00N000		 COVER, GEAR BOX 1 Rp248.000
28 11484-46G10-000
SUB: 11484B46G10N000		 GASKET, GEAR BOX COVER 1 Rp14.500
29 01547-0625A-000
SUB: 01547B0625AN000		 BOLT 7 Rp6.500
30 09206-08008-000
SUB: 09206B08008N000		 PIN 2 Rp4.000
31 11344-13H00-000
SUB: 11344B13H00N000		 CLIP 2 Rp3.000
32 11345-13H00-000
SUB: 11345B13H00N000		 PLUG, WATER DRAIN 1 Rp6.500
33 11345-13H10-000
SUB: 11345B13H10N000		 PLUG, WATER DRAIN 1 Rp4.500
34 DISCONTINUE
SUB: 11351B46G01N000		 COVER, CRANKSHAFT RH 1 -
35 11483-46G10-000
SUB: 11483B46G10N000		 GASKET, CRANKSHAFT COVER RH 1 Rp21.500
36 01547-0630A-000
SUB: 01547B0630AN000		 BOLT 8 Rp6.500
37 01547-0660A-000
SUB: 01547B0660AN000		 BOLT 2 Rp7.500
38 09168-06026-000 GASKET (6.4X11.5X0.8) 1 Rp20.000
39 09206-08008-000
SUB: 09206B08008N000		 PIN 2 Rp4.000
40 DISCONTINUE
SUB: 11971B13H00N000		 GAUGE, OIL LEVEL 1 -
41 09280-17003-000
SUB: 09280-17003L000		 O RING (D:3.1,ID:16.8) 1 Rp2.000
42 11347-46G00-000
SUB: 11347B46G00N000		 SPACER, AIR INTAKE PLATE 1 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
