HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 AIR CLEANERFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

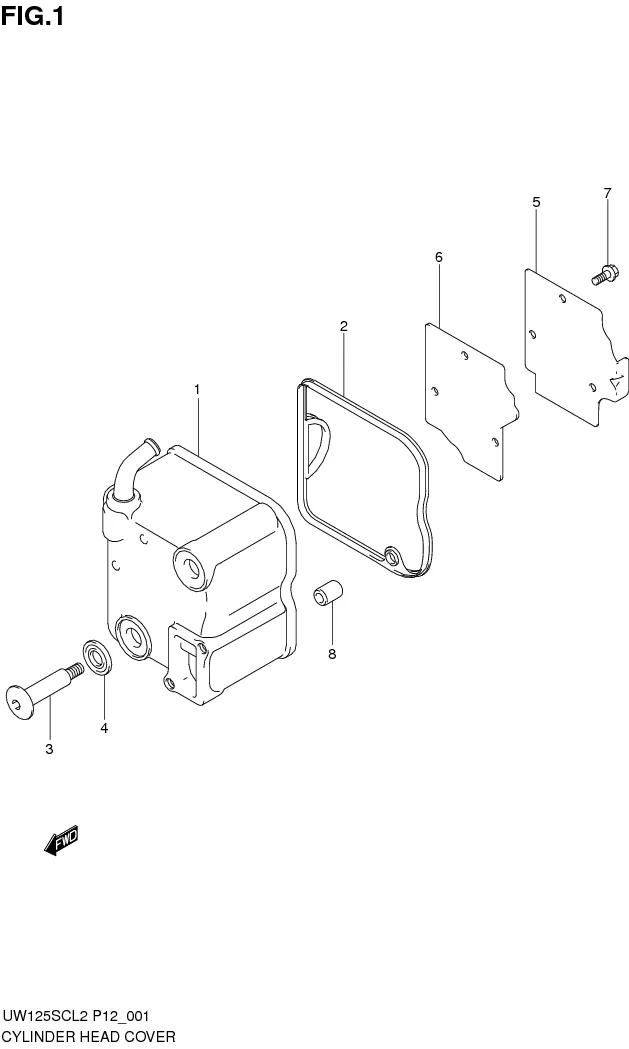

FIG.1 CYLINDER HEAD COVER

FIG.1 CYLINDER HEAD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11170-13H00-000
SUB: 11170B13H00N000		 COVER, CYLINDER HEAD 1 Rp100.000
2 11173-46G10-000
SUB: 11173B46G10N000		 GASKET, CYLINDER HEAD COVER 1 Rp35.500
3 09106-07011-000
SUB: 09106B07011N000		 BOLT (7X37) 2 Rp8.000
4 11191-27E40-000
SUB: 11191B27E40N000		 WASHER, HEAD COVER 2 Rp13.000
5 11176-33G50-000
SUB: 11176B33G50N000		 PLATE, BREATHER 1 Rp6.500
6 DISCONTINUE
SUB: 11177B13H10N000		 GASKET, BREATHER PLATE 1 -
7 01550-0510A-000
SUB: 01550B0510AN000		 BOLT 3 Rp3.500
8 09206-08008-000
SUB: 09206B08008N000		 PIN 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
