GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.301A (1-C-7) STARTING MOTOR FIG.303A (1-C-8) MAGNETO FIG.310A (1-C-9) BATTERY FIG.312A (1-C-10) ELECTRICAL FIG.330A (1-C-11) SPEEDOMETER FIG.333A (1-D-9) HEADLAMP FIG.334A (1-C-12) TURNSIGNAL LAMP FIG.339A (1-C-13) REAR COMBINATION LAMP FIG.350A (1-C-14) WIRING HARNESS FIG.352A (1-C-15) LOCK SET FIG.355A (1-D-2) HANDLE SWITCH

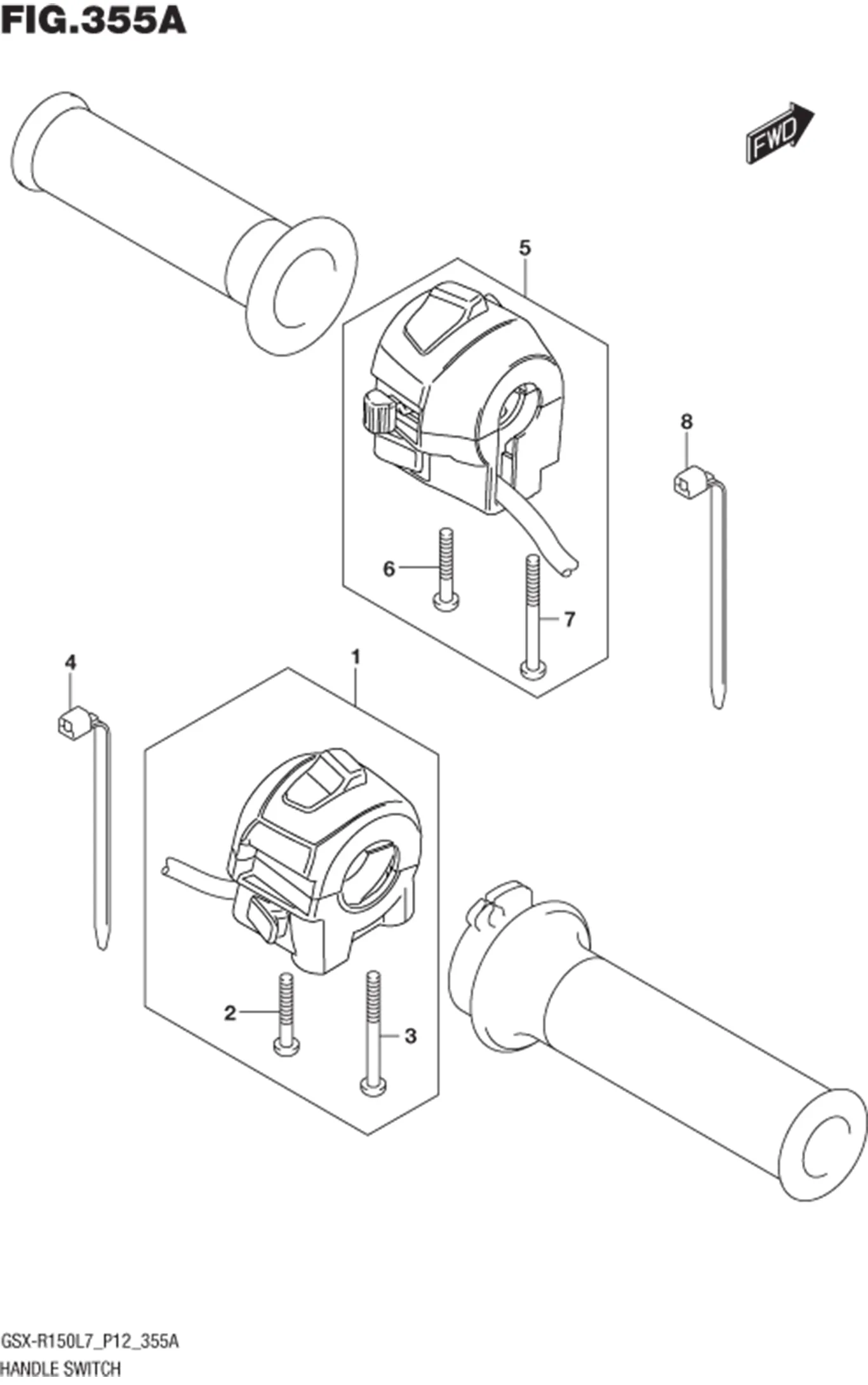

FIG.355A (1-D-2) HANDLE SWITCH

FIG.355A (1-D-2) HANDLE SWITCH

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	37200-23K03-000 SUB: 37200-23K00-000	SWITCH ASSY, HANDLE RH	1	Rp215.000
	02112-0530B-000 SUB: 02112B0530BN000	SCREW	1	Rp5.500
	02112-0545B-000	SCREW	1	Rp21.500
	37400-23K00-000	SWITCH ASSY, HANDLE LH	1	Rp226.000
	DISCONTINUE SUB: 02112-0520B-000	SCREW	1	-
	02112-0540B-000	SCREW	1	Rp22.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
