  5. FIG.339A (1-C-13) REAR COMBINATION LAMP

GSXS-150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.301A (1-C-7) STARTING MOTORFIG.303A (1-C-8) MAGNETOFIG.310A (1-C-9) BATTERYFIG.312A (1-C-10) ELECTRICALFIG.330A (1-C-11) SPEEDOMETERFIG.333A (1-D-9) HEADLAMPFIG.334A (1-C-12) TURNSIGNAL LAMPFIG.339A (1-C-13) REAR COMBINATION LAMPFIG.350A (1-C-14) WIRING HARNESSFIG.352A (1-C-15) LOCK SETFIG.355A (1-D-2) HANDLE SWITCH

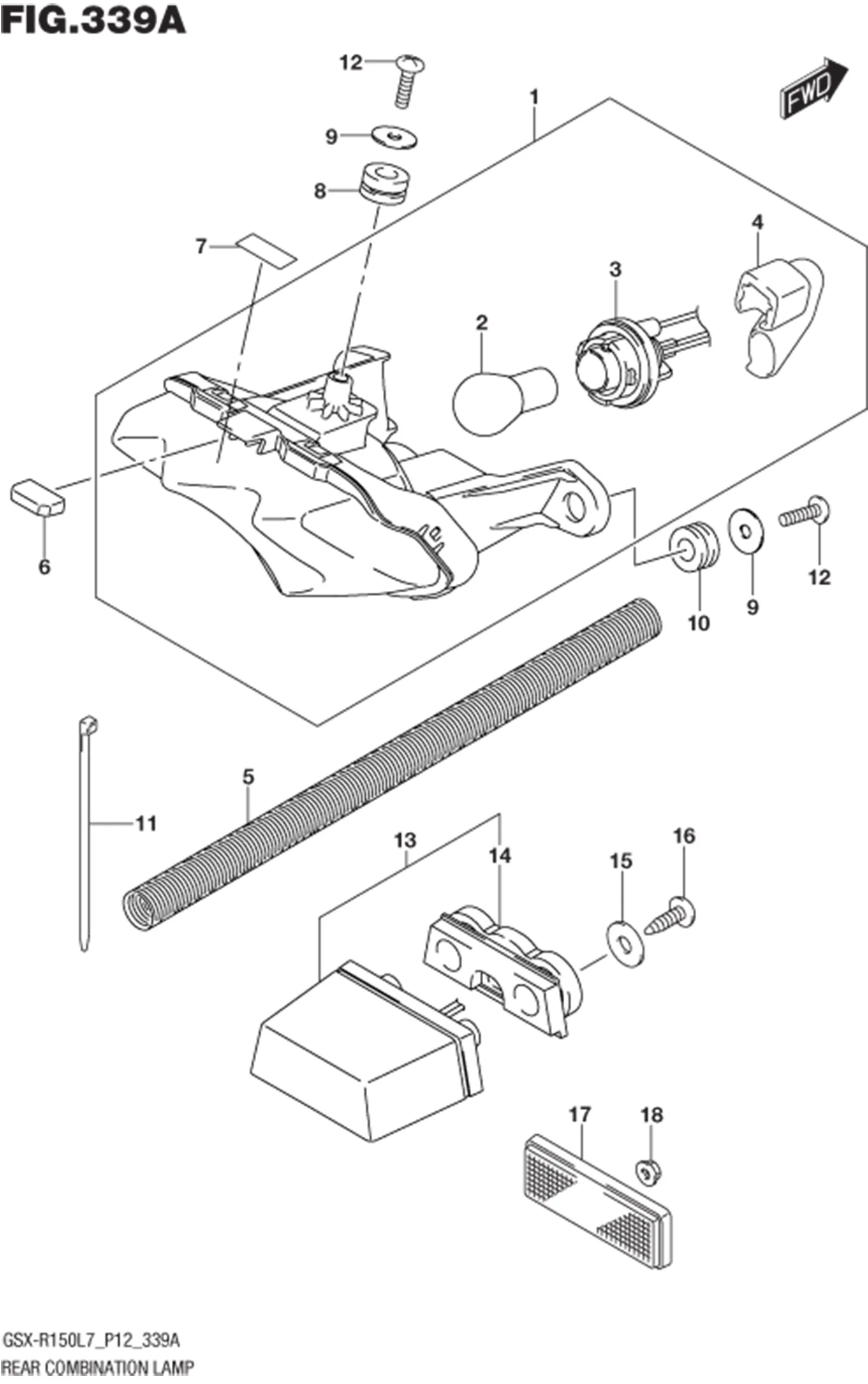

FIG.339A (1-C-13) REAR COMBINATION LAMP

FIG.339A (1-C-13) REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
35710-23K00-000 LAMP ASSY, REAR COMBINATION 1 Rp116.500
35718-23K00-000 CORD ASSY 1 Rp70.500
35650-23K00-000 TUBE BREATH 1 Rp12.000
35693-23K00-000 PROTECTOR TUBE 1 Rp7.500
35781-23K00-000 CUSHION, REAR COMB LAMP 1 Rp4.000
09160-05050-000
SUB: 09160B05050N000		 WASHER (5.5X18X1) 3 Rp5.500
09320-09016-000 CUSHION 2 Rp4.000
35910-23K00-000 LAMP ASSY, LICENSE 1 Rp137.000
35913-23K00-000 RUBBER 1 Rp50.500
09160-05050-000
SUB: 09160B05050N000		 WASHER (5.5X18X1) 2 Rp5.500
35970-28G00-000 REFLECTOR ASSY, REAR 1 Rp14.500
43252-65D00-000
SUB: 43252B65D00N000		 4 Rp130.000
3 09471-12083-000 BULB (12V,21/5W) 2 Rp62.000
3 08316-1005A-000 NUT 2 Rp2.500
25 03541-0516A-000 SCREW 1 Rp3.500
26 36990-25G00-000
SUB: 09407-11401-000		 CLAMP 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
