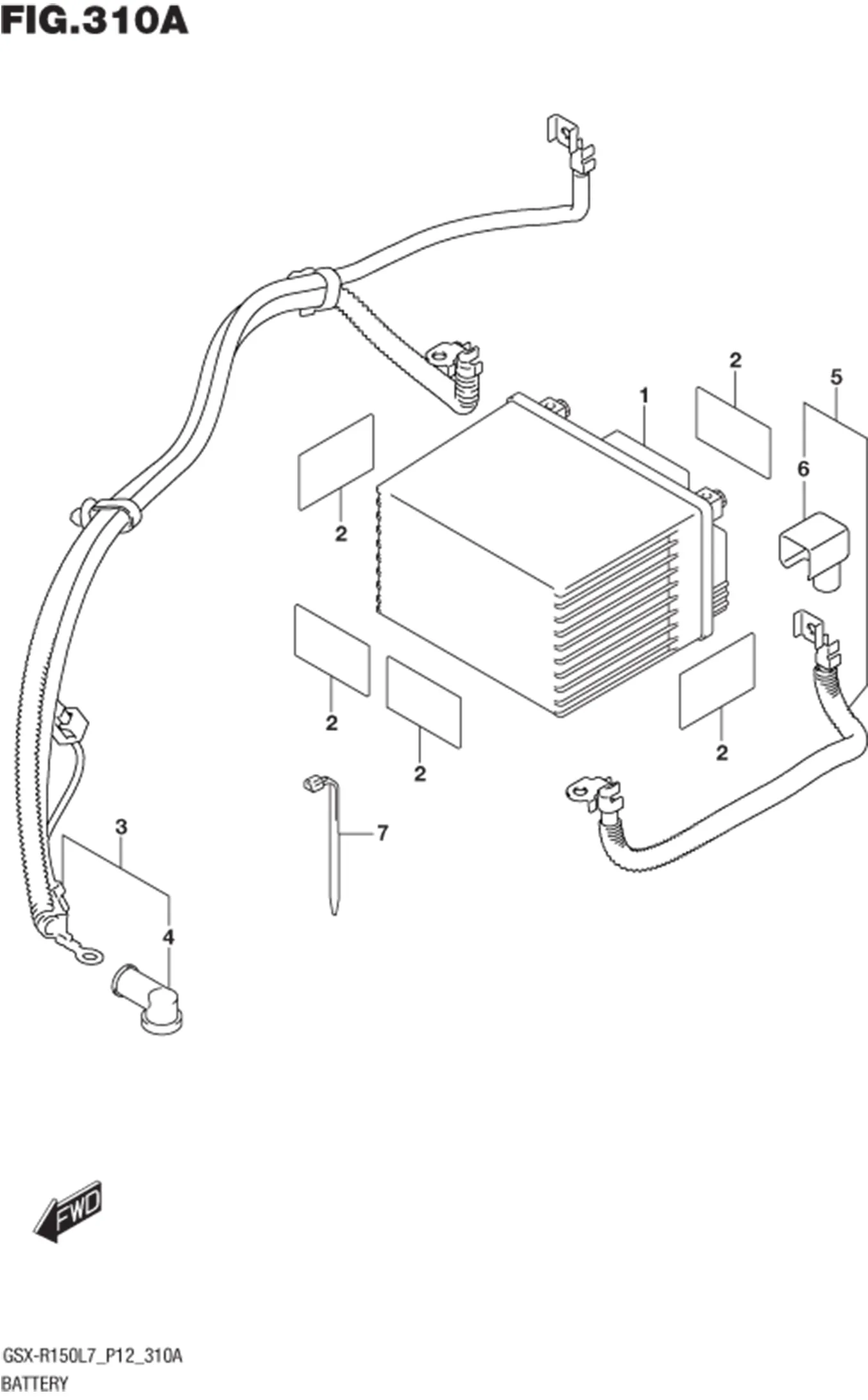

FIG.310A (1-C-9) BATTERY

FIG.310A (1-C-9) BATTERY

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	33610-25G30-000 SUB: 33610B25G30N000	BATTERY (GS GTZ6V)	1	Rp602.500
	33810-23K00-000	WIRE, STARTER MOTOR	1	Rp69.000
	33820-23K00-000	WIRE, BATTERY PLUS	1	Rp27.000
	33624-23K00-000	CAP	1	Rp15.000
	45700-60810-000 SUB: 45706-60A00-000		2	Rp204.000
	09103-12048-000		2	Rp56.000
	45261-65D01-000		2	Rp446.500
13	08310-0012A-000 SUB: 08310-00123L000	NUT	2	Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
