GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.301A (1-C-7) STARTING MOTOR FIG.303A (1-C-8) MAGNETO FIG.310A (1-C-9) BATTERY FIG.312A (1-C-10) ELECTRICAL FIG.330A (1-C-11) SPEEDOMETER FIG.333A (1-D-9) HEADLAMP FIG.334A (1-C-12) TURNSIGNAL LAMP FIG.339A (1-C-13) REAR COMBINATION LAMP FIG.350A (1-C-14) WIRING HARNESS FIG.352A (1-C-15) LOCK SET FIG.355A (1-D-2) HANDLE SWITCH

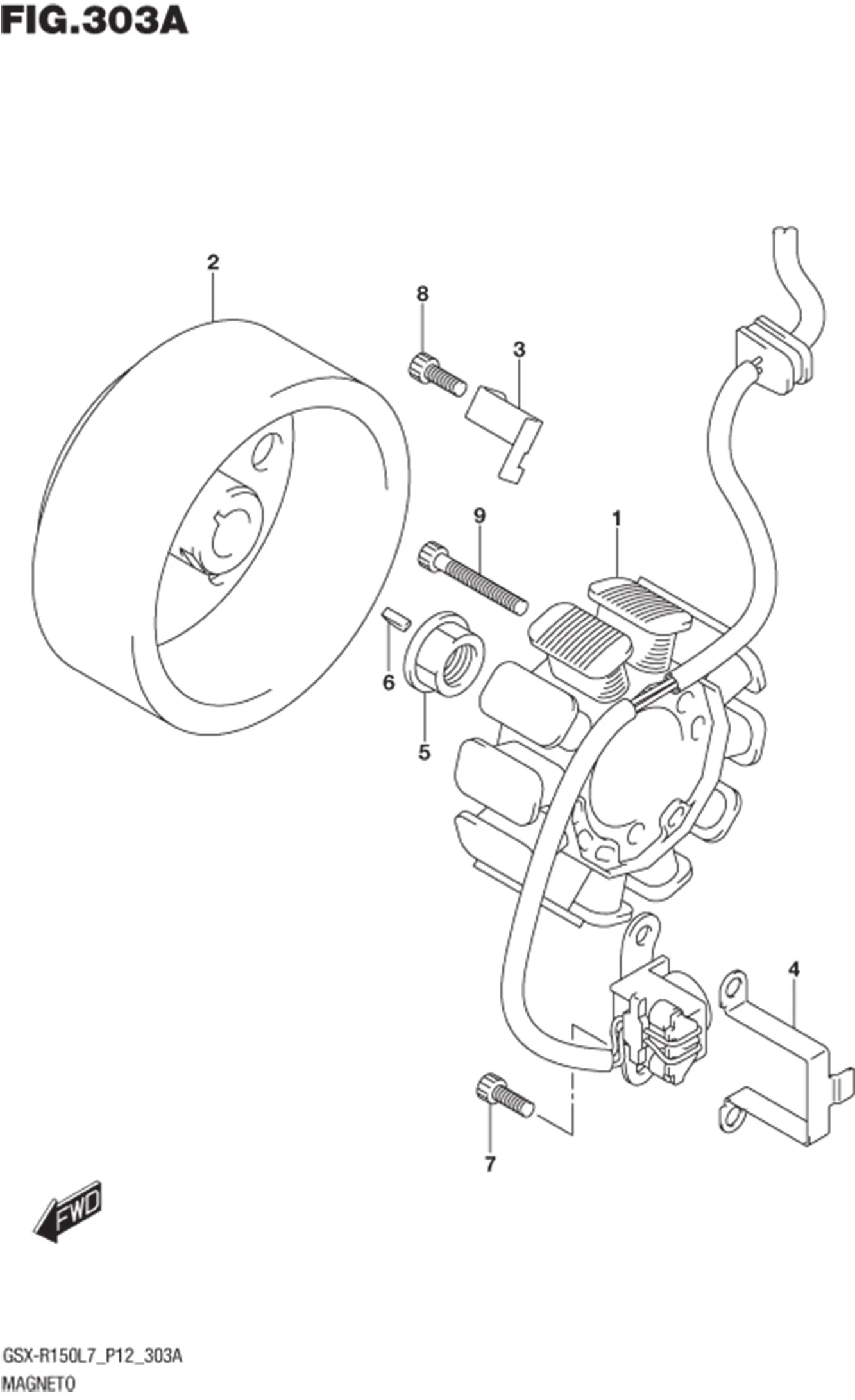

FIG.303A (1-C-8) MAGNETO

FIG.303A (1-C-8) MAGNETO

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	32101-12K11-000 SUB: 32101-12K10-000	STATOR ASSY	1	Rp458.000
	32102-12K10-000	ROTOR ASSY	1	Rp415.500
	32371-12K00-000	CLAMP, MAGNET LEAD	1	Rp4.500
	DISCONTINUE SUB: 32371B16H00N000	CLAMP, MAGNET LEAD	1	-
	09159-14037-000	NUT	1	Rp6.500
	09420-03008-000	KEY	1	Rp12.000
	07130-0512A-000	BOLT	2	Rp4.000
	07130-0512A-000	BOLT	1	Rp4.000
	07130-0535A-000	BOLT	3	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
