GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.301A (1-C-7) STARTING MOTOR FIG.303A (1-C-8) MAGNETO FIG.310A (1-C-9) BATTERY FIG.312A (1-C-10) ELECTRICAL FIG.330A (1-C-11) SPEEDOMETER FIG.333A (1-D-9) HEADLAMP FIG.334A (1-C-12) TURNSIGNAL LAMP FIG.339A (1-C-13) REAR COMBINATION LAMP FIG.350A (1-C-14) WIRING HARNESS FIG.352A (1-C-15) LOCK SET FIG.355A (1-D-2) HANDLE SWITCH

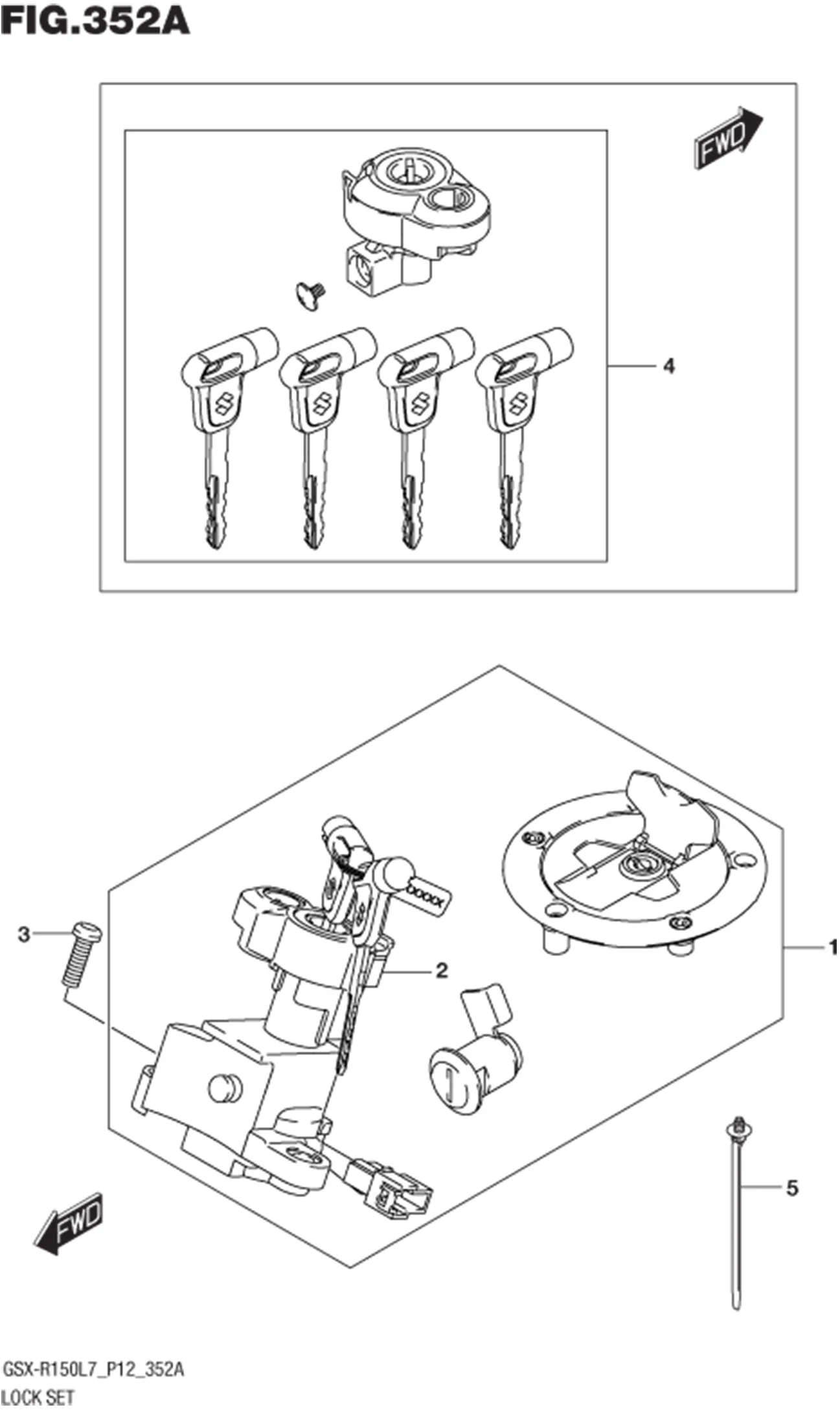

FIG.352A (1-C-15) LOCK SET

FIG.352A (1-C-15) LOCK SET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	37101-23823-000 SUB: 37101-23820-000	LOCK SET	1	Rp729.000
	37100-23K01-000 SUB: 37100-23K00-000	LOCK ASSY, STEERING	1	Rp327.000
	37152-17K00-000 SUB: 09119-08100-000	BOLT (8X20)	2	Rp29.500
	37155-23810-000	SHUTTER SET	1	Rp238.500
	09407-17403-000	CLAMP (L:154)	1	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
