GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.301A (1-C-7) STARTING MOTOR FIG.303A (1-C-8) MAGNETO FIG.310A (1-C-9) BATTERY FIG.312A (1-C-10) ELECTRICAL FIG.330A (1-C-11) SPEEDOMETER FIG.333A (1-D-9) HEADLAMP FIG.334A (1-C-12) TURNSIGNAL LAMP FIG.339A (1-C-13) REAR COMBINATION LAMP FIG.350A (1-C-14) WIRING HARNESS FIG.352A (1-C-15) LOCK SET FIG.355A (1-D-2) HANDLE SWITCH

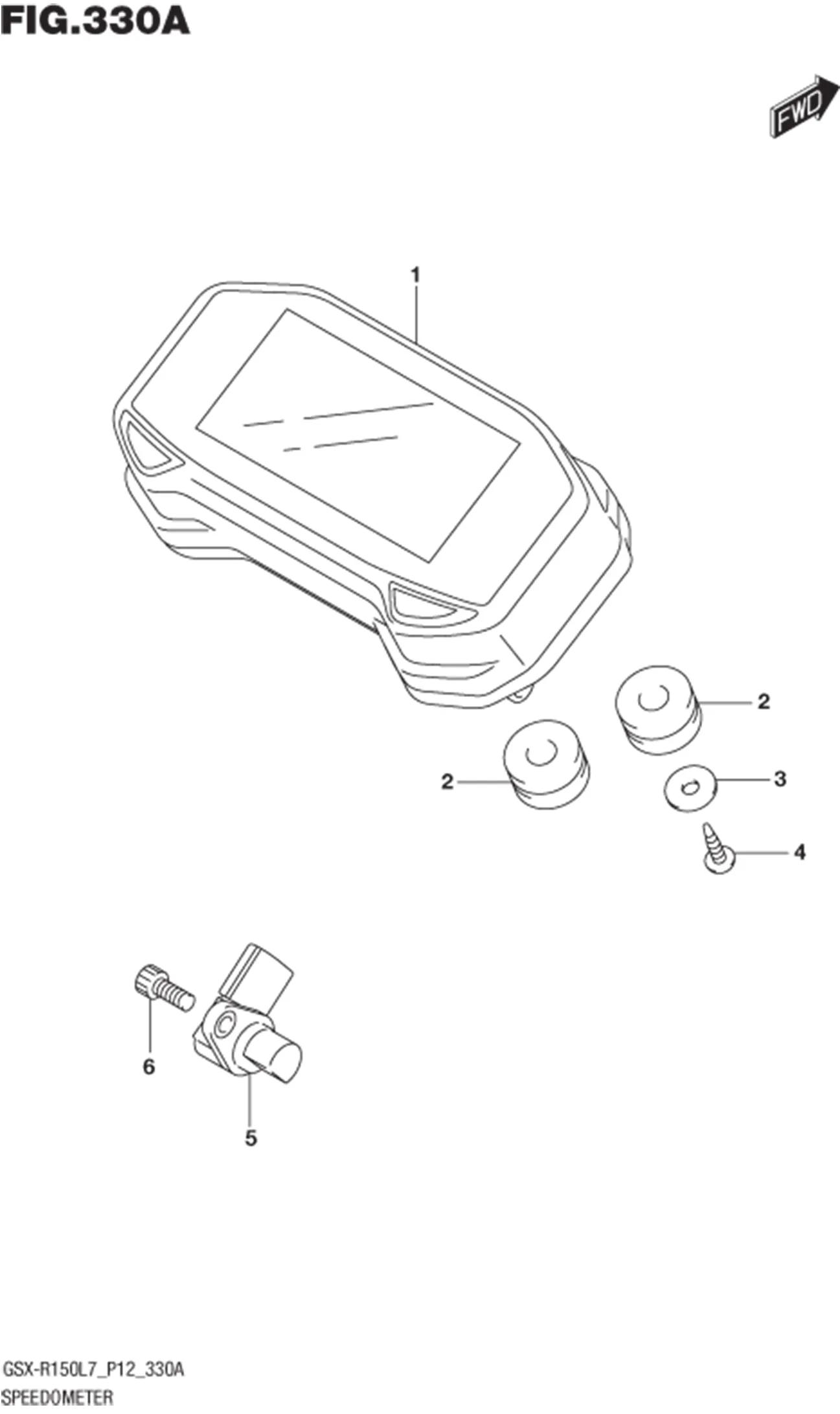

FIG.330A (1-C-11) SPEEDOMETER

FIG.330A (1-C-11) SPEEDOMETER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	34100-12K11-000 SUB: 34100-12K10-000	SPEEDOMETER	1	Rp741.000
	34189-30H30-000	CUSHION, SPEEDOMETER	3	Rp4.500
	09160-04026-000 SUB: 09160B04026N000	WASHER (4.5X16X1.2)	1	Rp10.500
	03541-0416A-000	SCREW	1	Rp3.500
	34990-12K00-000	SENSOR, SPEED	1	Rp109.500
	07130-0512A-000 SUB: 07130B0512BN000	BOLT	1	Rp4.000
	DISCONTINUE SUB: 45112-60A00-000		2	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
