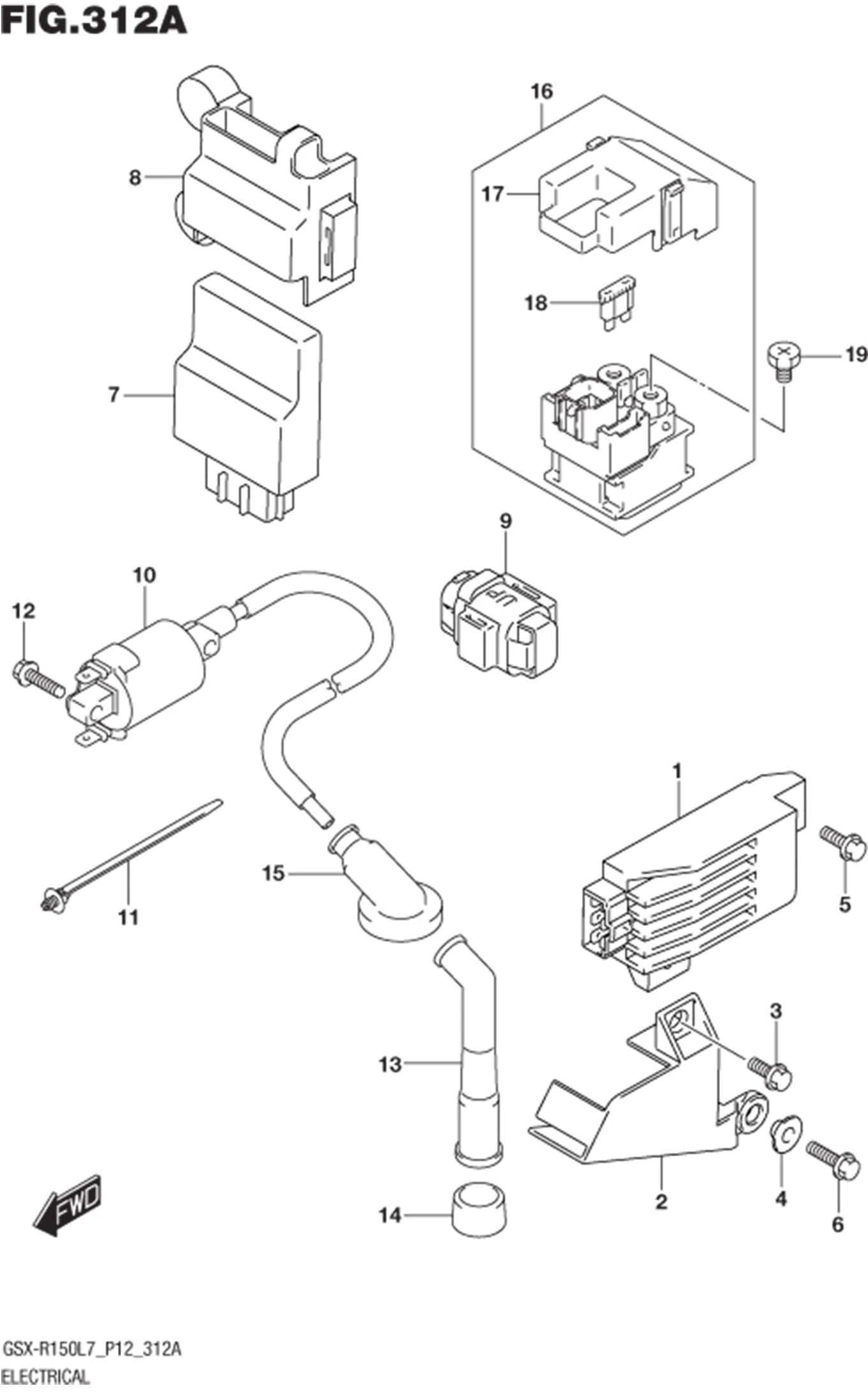

FIG.312A (1-C-10) ELECTRICAL

FIG.312A (1-C-10) ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
32800-23K00-000 RECTIFIER ASSY 1 Rp691.500
32832-23K00-000 PLATE, RECTFIER 1 Rp9.000
09111-06054-000 BOLT (6X14.6) 1 Rp6.500
09180-06325-000
SUB: 09180B06325N000		 SPACER (6.2X8.4X6.9) 1 Rp5.500
32920-23K32-000
SUB: 32920-23K30-000		 CONTROL UNIT, FI 1 Rp666.500
32942-23K00-000 PROTECTOR, FI CONTROL UNIT 1 Rp12.500
33960B27G00N000 SENSOR ASSY, FUEL CUT 1 Rp127.000
33410-40J10-000 COIL ASSY, IGNITION 1 Rp78.000
09407-17403-000 SCREW 1 Rp3.500
33510-25G00-000
SUB: 33510B25G00N000		 CAP, SPARK PLUG 1 Rp43.000
33541-25G00-000
SUB: 33541B25G00N000		 SEAL, SPARK PLUG 1 Rp9.000
33542-25G10-000
SUB: 33542B25G10N000		 SEAL, HIGH TENSION CORD 1 Rp17.500
31800-47E01-000
SUB: 31800-47E00-000		 RELAY ASSY, STARTING MOTOR 1 Rp710.000
31861-47E00-000
SUB: 31861B47E00N000		 COVER 1 Rp7.000
09481-20102-000 FUSE (20A) 2 Rp7.000
09128-06013-000
SUB: 09128B06013N000		 SCREW (6X8) 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
