GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.301A (1-C-7) STARTING MOTOR FIG.303A (1-C-8) MAGNETO FIG.310A (1-C-9) BATTERY FIG.312A (1-C-10) ELECTRICAL FIG.330A (1-C-11) SPEEDOMETER FIG.333A (1-D-9) HEADLAMP FIG.334A (1-C-12) TURNSIGNAL LAMP FIG.339A (1-C-13) REAR COMBINATION LAMP FIG.350A (1-C-14) WIRING HARNESS FIG.352A (1-C-15) LOCK SET FIG.355A (1-D-2) HANDLE SWITCH

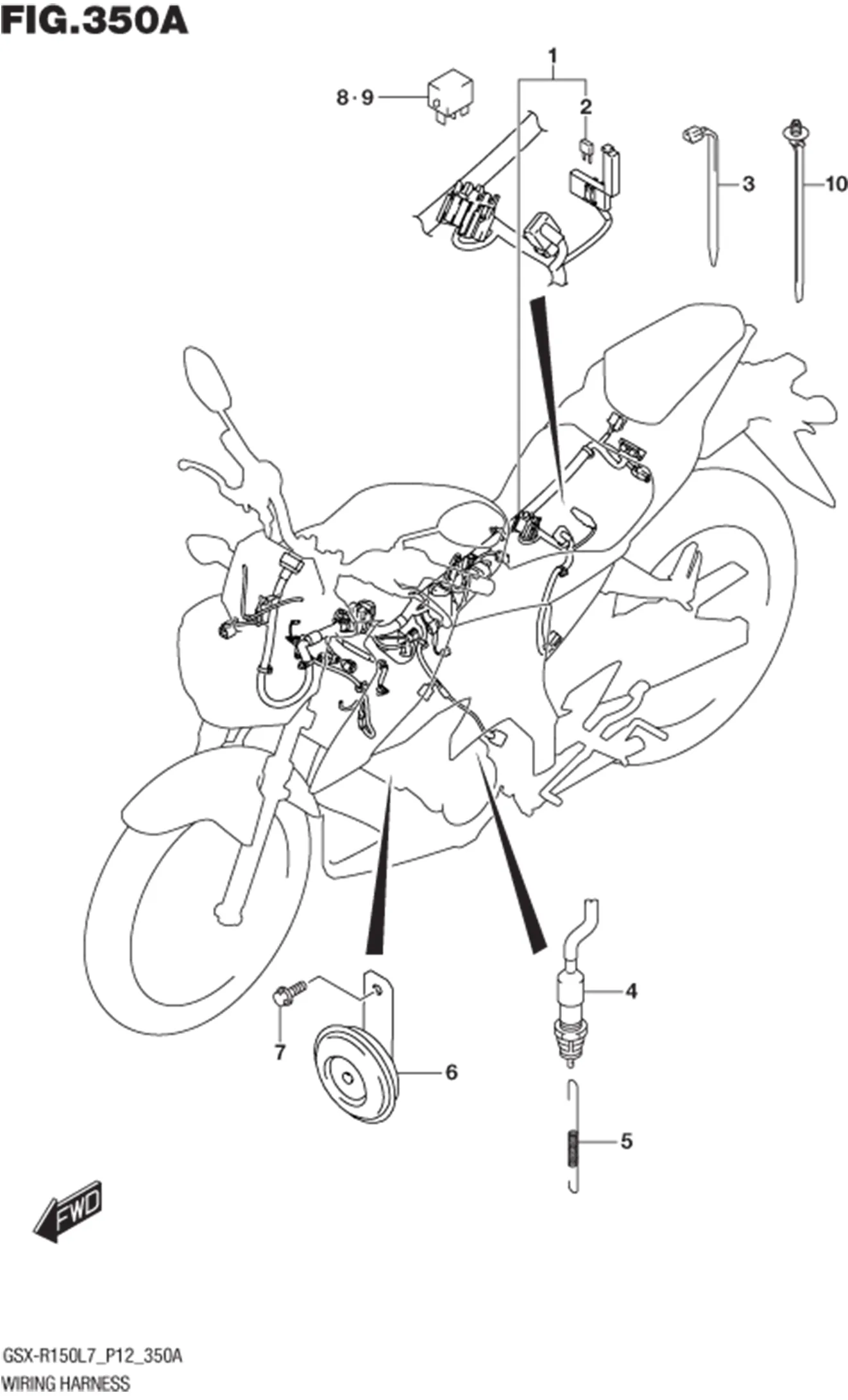

FIG.350A (1-C-14) WIRING HARNESS

FIG.350A (1-C-14) WIRING HARNESS

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	36610-23K00-000	HARNESS, WIRING	1	Rp1.000.000
	37740-12K10-000	SWITCH ASSY, STOP LAMP	1	Rp34.500
	43232-34J00-000	SPRING, STOP LAMP SWITCH	1	Rp4.500
	38500-23K00-000	HORN ASSY	1	Rp61.000
	01550-0612A-000	BOLT	1	Rp3.500
	38860-33J00-000	RELAY	1	Rp35.500
	38860-33J00-000	RELAY	1	Rp35.500
	09407-17403-000	CLAMP (L:154)	1	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
