GSXS-150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.301A (1-C-7) STARTING MOTORFIG.303A (1-C-8) MAGNETOFIG.310A (1-C-9) BATTERYFIG.312A (1-C-10) ELECTRICALFIG.330A (1-C-11) SPEEDOMETERFIG.333A (1-D-9) HEADLAMPFIG.334A (1-C-12) TURNSIGNAL LAMPFIG.339A (1-C-13) REAR COMBINATION LAMPFIG.350A (1-C-14) WIRING HARNESSFIG.352A (1-C-15) LOCK SETFIG.355A (1-D-2) HANDLE SWITCH

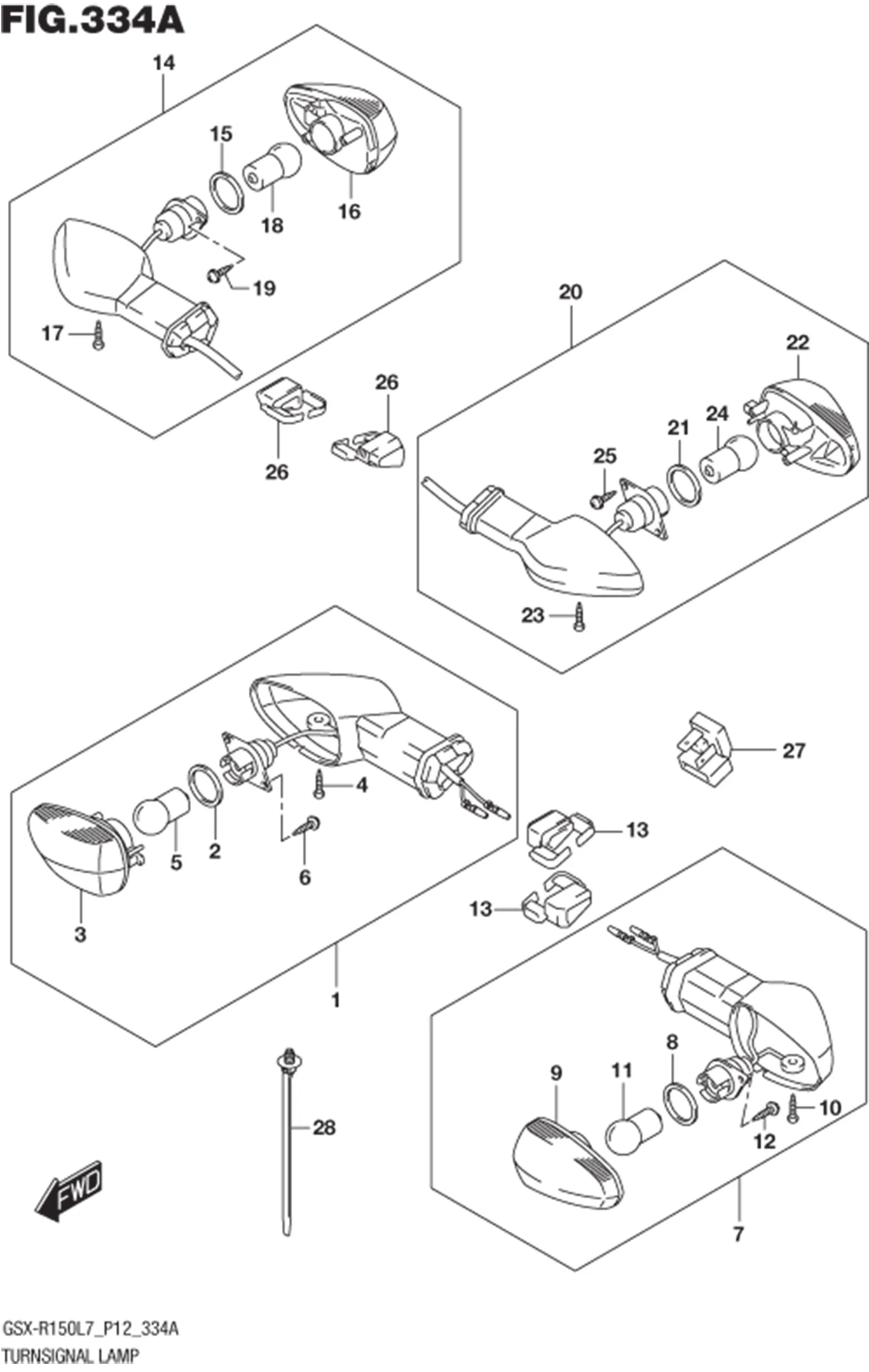

FIG.334A (1-C-12) TURNSIGNAL LAMP

FIG.334A (1-C-12) TURNSIGNAL LAMP
No No. Part Description Qty Price Per Pcs Remarks
35634-34J11-000
SUB: 35634-34J10-000		 LAMP UNIT 1 Rp70.500
DISCONTINUE
SUB: 09407M19401-000		 1 -
02162-0612B-000
SUB: 02162-06123-000		 2 Rp16.000
09407-17403-000 CLAMP 1 Rp3.500
38610-23J40-000
SUB: 38610-23J10-000		 RELAY ASSY, TURNSIGNAL 1 Rp48.000
35629-34J10-000 PLATE, REAR TURNSIGNAL 2 Rp7.000
35623-34J40-000
SUB: 35623-34J20-000		 SCREW 2 Rp9.500
09471-12226-000 BULB (12V,10W) 1 Rp47.000
35623-34J10-000 SCREW 1 Rp7.000
35614-34J11-000
SUB: 35614-34J10-000		 LAMP UNIT 1 Rp70.500
35613-34J00-000 GASKET 1 Rp29.500
35604-34J22-000
SUB: 35604-34J20-000		 LAMP ASSY, REAR TURNSIGNAL LH 1 Rp131.500
35623-34J40-000
SUB: 35623-34J20-000		 SCREW 2 Rp9.500
09471-12226-000 BULB (12V,10W) 1 Rp47.000
35623-34J10-000 SCREW 1 Rp7.000
35601-34J22-000
SUB: 35601-34J20-000		 LAMP ASSY, FRONT TURNSIGNAL RH 1 Rp131.500
35613-34J00-000 GASKET 1 Rp29.500
35603-34J22-000
SUB: 35603-34J20-000		 LAMP ASSY, REAR TURNSIGNAL RH 1 Rp131.500
35629-34J10-000 PLATE, TURNSIGNAL 2 Rp7.000
35623-34J40-000
SUB: 35623-34J20-000		 SCREW 2 Rp9.500
09471-12226-000 BULB (12V,10W) 1 Rp47.000
35623-34J10-000 SCREW 1 Rp7.000
35634-34J11-000
SUB: 35634-34J10-000		 LAMP UNIT 1 Rp70.500
35613-34J00-000 GASKET 1 Rp29.500
35602-34J22-000
SUB: 35602-34J20-000		 LAMP ASSY, FRONT TURNSIGNAL LH 1 Rp131.500
35623-34J40-000
SUB: 35623-34J20-000		 SCREW 2 Rp9.500
09471-12226-000 BULB (12V,10W) 1 Rp47.000
35623-34J10-000 SCREW 1 Rp7.000
35614-34J11-000
SUB: 35614-34J10-000		 LAMP UNIT 1 Rp70.500
35613-34J00-000 GASKET 1 Rp29.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
