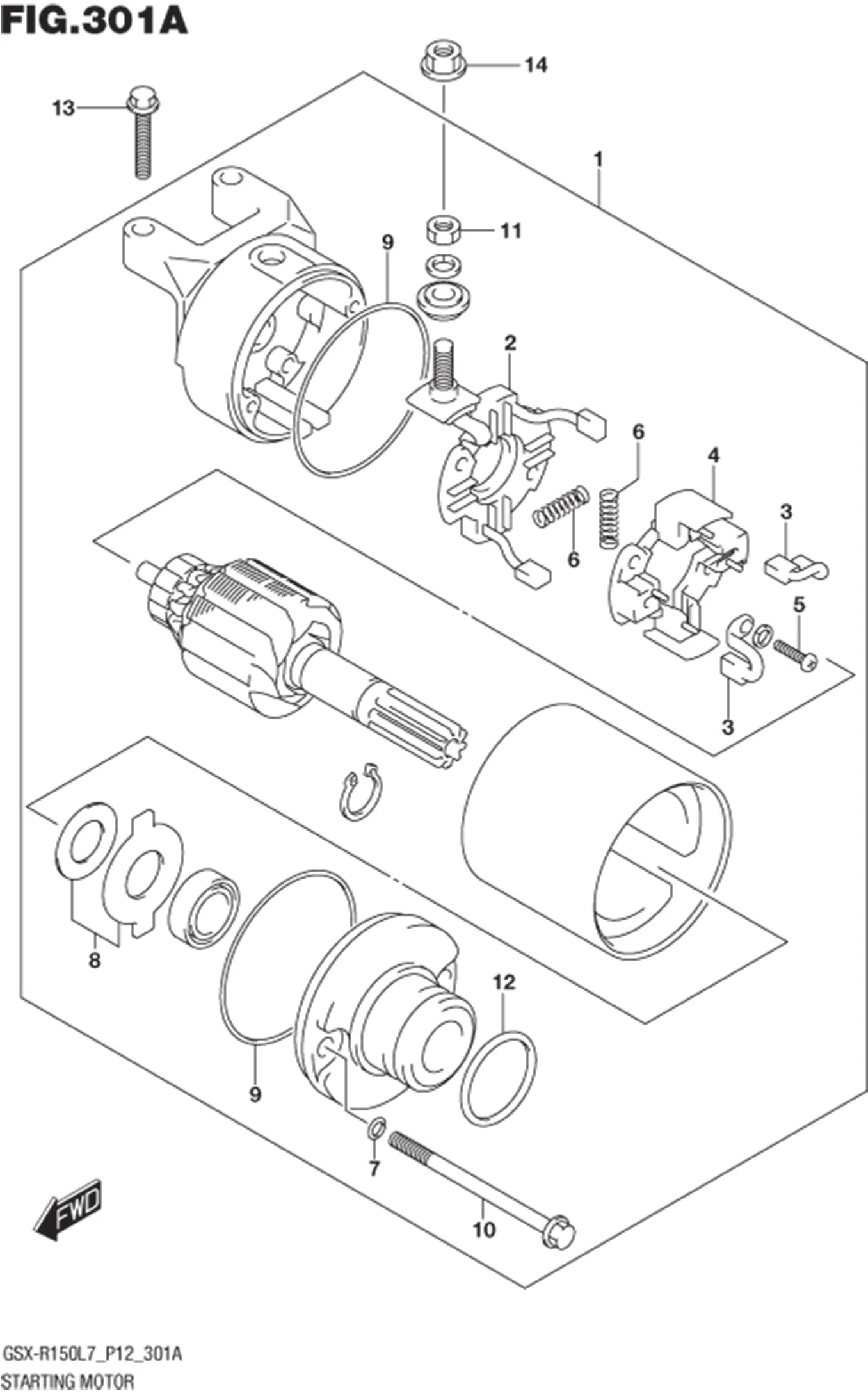

FIG.301A (1-C-7) STARTING MOTOR

FIG.301A (1-C-7) STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
31100-12K02-000
SUB: 31100-12K00-000		 MOTOR ASSY, STARTING 1 Rp386.000
31130-12K00-000 BRUSH TERMINAL SET 1 Rp82.000
31132-12K00-000 BRUSH HOLDER SET 2 Rp42.500
31133-12K00-000 HOLDER,BRUSH 1 Rp36.500
31134-12K00-000 SCREW 2 Rp9.000
31135-05530-000 SPRING 4 Rp4.000
31156-12K00-000 O RING 2 Rp9.000
31170-12K00-000 WASHER SET 1 Rp26.500
31264-05530-000 O RING 2 Rp15.500
31281-12K00-000 BOLT 2 Rp35.500
08310-12K00-000 NUT 1 Rp8.500
09280-12K00-000 O RING 1 Rp22.500
01547-0625A-000 BOLT 2 Rp6.500
DISCONTINUE
SUB: 39312B65D00N000		 1 -
DISCONTINUE
SUB: 39312-60B11L000		 1 -
23 09407-12404-000 CLAMP (L:140) 1 Rp19.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
