GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.41 ENGINE ELECTRICALFIG.42 STARTING MOTORFIG.43 GENERATORFIG.44 BATTERYFIG.45 SPEEDOMETERFIG.46 HEADLAMPFIG.47 FOG LAMPFIG.48 ROOM LAMPFIG.49 REAR LAMPFIG.50 WIRING HARNESSFIG.51 ELECTRICAL CONTROLFIG.52 LOCK SETFIG.53 FRONT WINDOW WIPERFIG.54 WINDOW WASHERFIG.55 REAR WINDOW WIPERFIG.56 RADIO

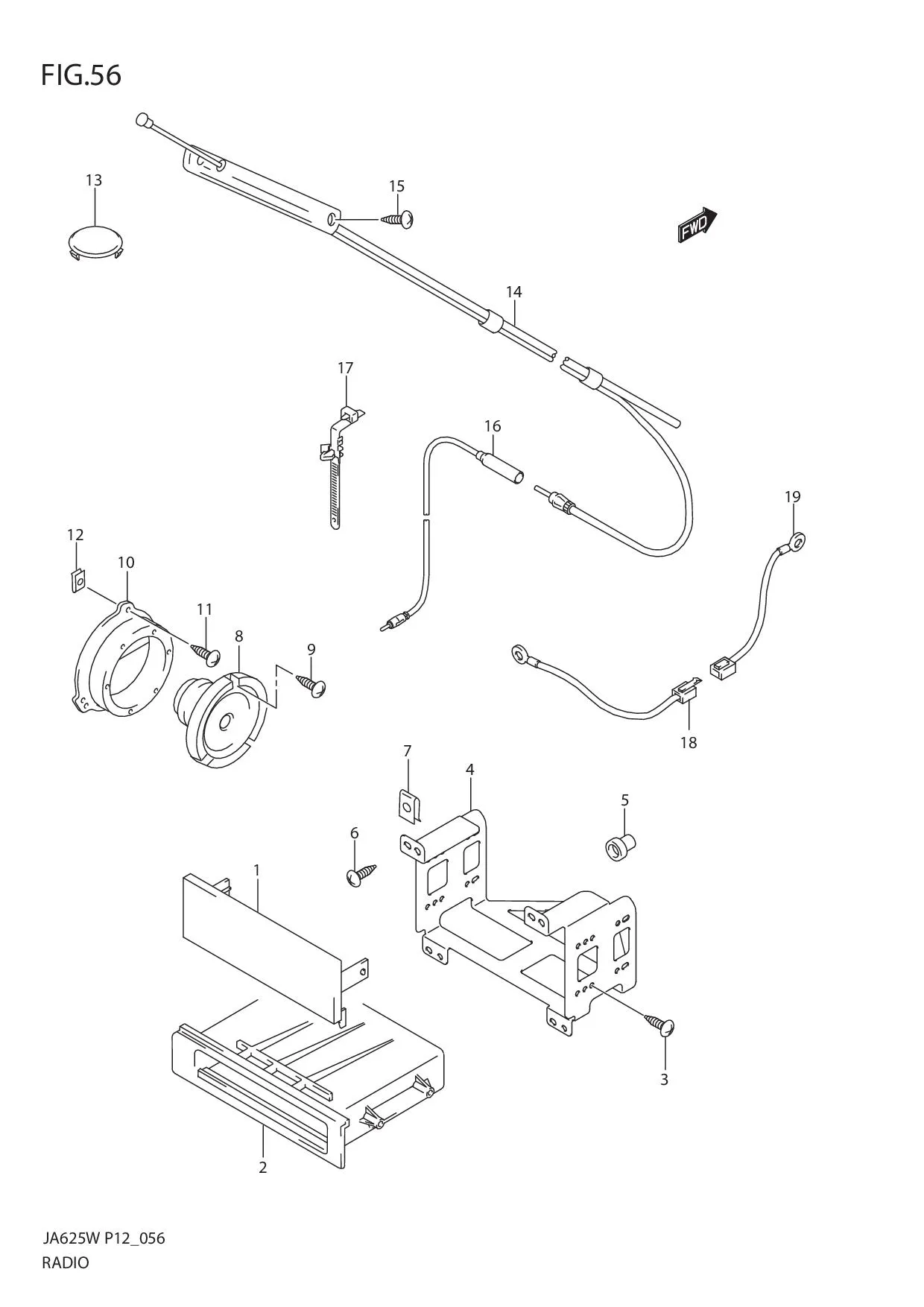

FIG.56 RADIO

FIG.56 RADIO
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 39161-74G00-000		 COVER, RADIO HOLE 1 -
2 39182-77M10-000
SUB: 39182-70E50-000		 POCKET, TUNER 1 Rp38.000
3 03241-0512A-000
SUB: 03242-05123-000		 SCREW 4 Rp3.500
4 DISCONTINUE
SUB: 39321-50J11-000		 BRACKET, TUNER 1 -
5 DISCONTINUE
SUB: 34955-60E00-000		 BUSH 1 -
6 03141-0516B-000
SUB: 03142-05123-000		 SCREW 4 Rp3.500
7 09148-05045-000
SUB: 09148B05045N000		 NUT 4 Rp4.000
8 DISCONTINUE
SUB: 39102-63G12LG01		 SPEAKER ASSY 4 -
9 03141-0516B-000
SUB: 03142-05163-000		 SCREW 12 Rp3.500
10 DISCONTINUE
SUB: 39350-82D00-000		 BRACKET, FRONT SPEAKER 4 -
11 03241-0616C-000
SUB: 03242-06163-000		 SCREW 12 Rp17.000
12 71851M70F00-000
SUB: 09148M06007-000		 NUT 12 Rp4.000
13 DISCONTINUE
SUB: 39239-50J00-000		 CAP, TWEETER HOLE 2 -
14 39250-67D00-000 ANTENNA ASSY 1 Rp924.500
15 09129-04003-000 SCREW (4X12) 2 Rp18.500
16 DISCONTINUE
SUB: 39270-50J00-000		 FEEDER, PILLAR ANTENNA 1 -
17 09407-12404-000 CLAMP (L:140) 1 Rp19.500
18 DISCONTINUE
SUB: 39312B65D00N000		 WIRE, NOISE SUPPRESSOR 1 -
19 DISCONTINUE
SUB: 39312-60B11L000		 WIRE, NOISE SUPPRESSOR 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
