GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.41 ENGINE ELECTRICALFIG.42 STARTING MOTORFIG.43 GENERATORFIG.44 BATTERYFIG.45 SPEEDOMETERFIG.46 HEADLAMPFIG.47 FOG LAMPFIG.48 ROOM LAMPFIG.49 REAR LAMPFIG.50 WIRING HARNESSFIG.51 ELECTRICAL CONTROLFIG.52 LOCK SETFIG.53 FRONT WINDOW WIPERFIG.54 WINDOW WASHERFIG.55 REAR WINDOW WIPERFIG.56 RADIO

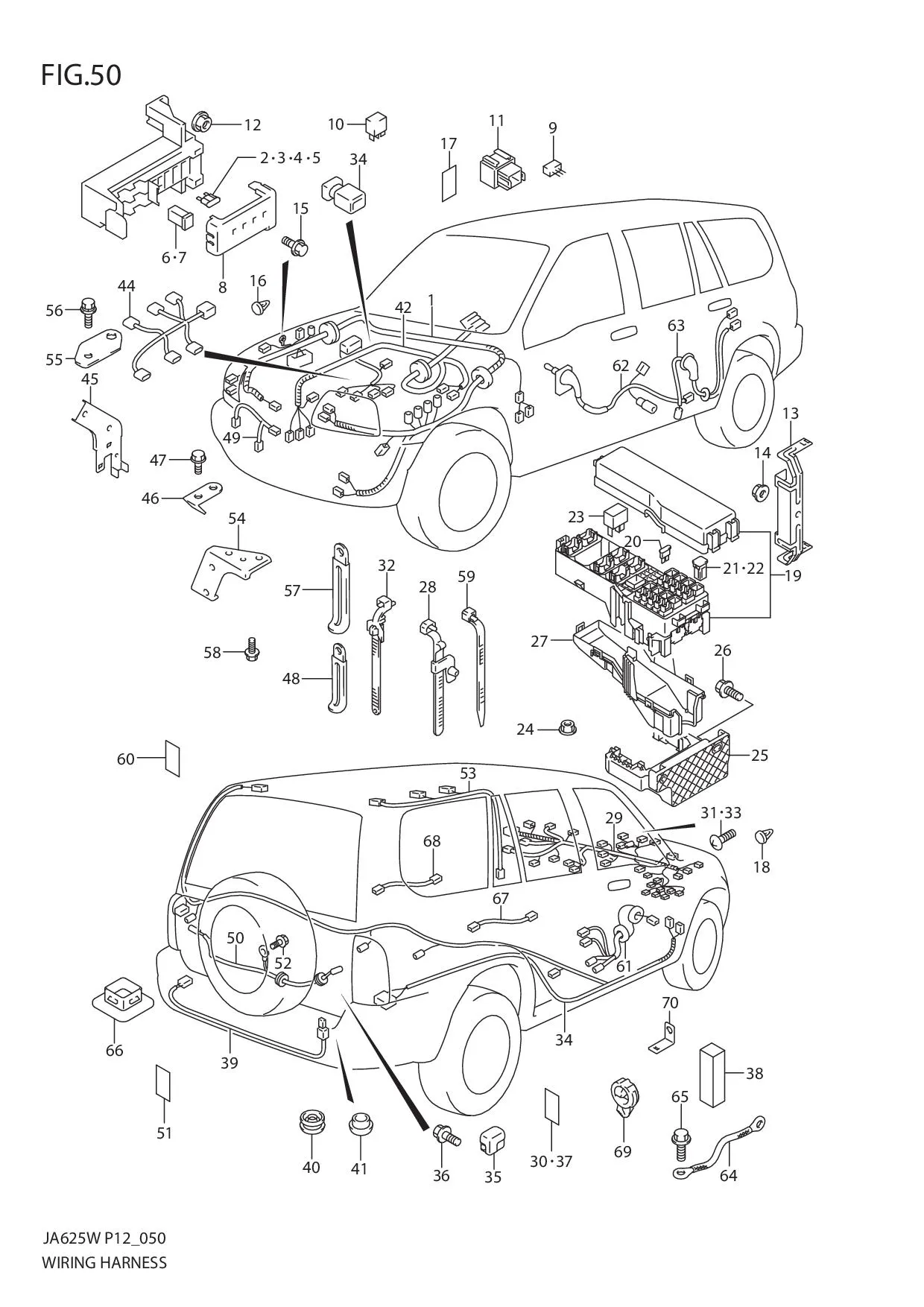

FIG.50 WIRING HARNESS

FIG.50 WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 36601-54JA1-000		 HARNESS ASSY, WIRING MAIN 1 -
2 09481-10501-000
SUB: 09481M10501-000		 •FUSE (10A) 5 Rp12.000
3 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 4 Rp12.000
4 09481-20501-000 •FUSE (20A) 3 Rp14.500
5 09481-25501-000 •FUSE (25A) 3 Rp14.000
6 09481-30401-000 •FUSE (30A) 1 Rp42.000
7 09481-40401-000 •FUSE (40A) 1 Rp49.500
8 36717-50J00-000 •COVER, FUSE BOX 1 Rp85.000
9 DISCONTINUE
SUB: 33459-61B10-000		 •DIODE 1 -
10 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY 8 Rp47.000
11 38610-84F21-000 •RELAY, TURN SIGNAL & 4 WAY 1 Rp683.500
12 08316-1006A-000
SUB: 08316-10063L000		 NUT 3 Rp2.000
13 DISCONTINUE
SUB: 36614-65D00-000		 BRACKET, MAIN HARNESS CONNECTOR 1 -
14 08316-1006A-000
SUB: 08316-10063L000		 NUT 1 Rp2.000
15 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 4 Rp14.000
16 09148-05042-000 NUT 1 Rp17.500
17 36930M82000-000
SUB: 36930M82010-000		 COVER 3 Rp6.500
18 DISCONTINUE
SUB: 09409-07320-000		 CAP 3 -
19 DISCONTINUE
SUB: 36740-52J10-000		 BOC ASSY, MAIN FUSE 1 -
20 09481-15101-000 •FUSE (15A) 7 Rp12.000
21 09481-20501-000 •FUSE (20A) 2 Rp14.500
22 09481M60401-000 •FUSE (60A) 4 Rp66.000
23 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY 2 Rp47.000
24 08361-3506A-000 NUT 2 Rp4.000
25 36737-50J00-000 BRACKET, MAIN FUSE BOX, LH 1 Rp307.000
26 02162-0612B-000
SUB: 02162-06123-000		 SCREW 2 Rp16.000
27 36749-50J00-000 COVER, MAIN FUSE BOX UNDER 1 Rp237.500
28 DISCONTINUE
SUB: 36990-52D00-000		 CLAMP, AMIN HARNESS 1 -
29 DISCONTINUE
SUB: 36602-54J70-000		 HARNESS ASSY, WIRING INSTRUMENT PANEL 1 -
30 36930M82000-000
SUB: 36930M82010-000		 COVER, FLOOR HARNESS 1 Rp6.500
31 02142-0616B-000
SUB: 02142B06163N000		 SCREW 1 Rp5.500
32 09407-12404-000 CLAMP (L:140) 1 Rp19.500
33 03541-0516A-000
SUB: 03541B05163N000		 SCREW 2 Rp3.500
34 DISCONTINUE
SUB: 36603B54J30N000		 HARNESS ASSY, WIRING FLOOR 1 -
35 DISCONTINUE
SUB: 33459-82000-000		 •DIODE 1 -
36 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 1 Rp14.000
37 36930M82000-000
SUB: 36930M82010-000		 COVER, HARNESS 1 Rp6.500
38 DISCONTINUE
SUB: 76551-52D00-000		 PAD 1 -
39 DISCONTINUE
SUB: 36840B52D00N000		 WIRE, FUEL 1 -
40 09250-30002-000
SUB: 09250-30010-000		 CAP (OD:40) 1 Rp5.500
41 DISCONTINUE
SUB: 09250-35003-000		 CAP (OD:45) 1 -
42 DISCONTINUE
SUB: 36605B54J50N000		 HARNESS ASSY, WIRING ENGINE 1 -
43 33553-52E00-000 •FILTER, NOISE SUPPRESSOR 1 Rp431.500
44 DISCONTINUE
SUB: 36670-67D01-000		 HARNESS ASSY, INJECTION 1 -
45 DISCONTINUE
SUB: 36995-67D20-000		 BRACKET, ENGINE HARNESS 1 -
46 DISCONTINUE
SUB: 36995B77E21N000		 BRACKET, HARNESS 1 -
47 02162-0612B-000
SUB: 02162-06123-000		 SCREW 1 Rp16.000
48 DISCONTINUE
SUB: 09404-08420-000		 CLAMP (L:120) 3 -
49 36895-52J00-000 WIRE, OIL PRESSURE SWITCH 1 -
50 DISCONTINUE
SUB: 36845B65D01N000		 WIRE, BACK DOOR 1 -
51 36930M82000-000
SUB: 36930M82010-000		 COVER 1 Rp6.500
52 DISCONTINUE
SUB: 09139-05028-000		 SCREW (5X14) 1 -
53 DISCONTINUE
SUB: 36820-54J00-000		 WIRE, ROOM LAMP 1 -
54 DISCONTINUE
SUB: 36995-77E00-000		 BRACKET, ENGINE HARNESS 1 -
55 DISCONTINUE
SUB: 36995-77E90-000		 BRACKET, ENGINE HARNESS 4 -
56 DISCONTINUE
SUB: 01550B06123N000		 BOLT 5 -
57 DISCONTINUE
SUB: 09404B06433N000		 CLAMP, ENGINE HARNESS 4 -
58 DISCONTINUE
SUB: 01550B06123N000		 BOLT 3 -
59 36990-25G00-000
SUB: 09407-14403L000		 CLAMP, OIL PRESSURE 1 Rp13.000
60 36930M82000-000
SUB: 36930M82010-000		 COVER 1 Rp6.500
61 DISCONTINUE
SUB: 36756B52JC0N000		 WIRE, FRONT DOOR RH 1 -
62 DISCONTINUE
SUB: 36757B52J40N000		 WIRE, FRONT DOOR LH 1 -
63 DISCONTINUE
SUB: 36751B52D10N000		 WIRE, REAR DOOR 2 -
64 DISCONTINUE
SUB: 39312B77E10N000		 WIRE, HORN GROUND 1 -
65 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 1 Rp14.000
66 75411-60A00-000 CAP, TAIL MEMBER LOWER 1 Rp48.500
67 DISCONTINUE
SUB: 36611B50J00N000		 WIRE, CONSOLE 1 -
68 DISCONTINUE
SUB: 36611-50J10-000		 WIRE, CONSOLE 1 -
69 09403-35301-000 CLAMP, COMB SWITCH & IGNITION WIRE 1 Rp19.000
70 DISCONTINUE
SUB: 36737-80E00-000		 BRACKET, FLOOR HARNESS 1 -
