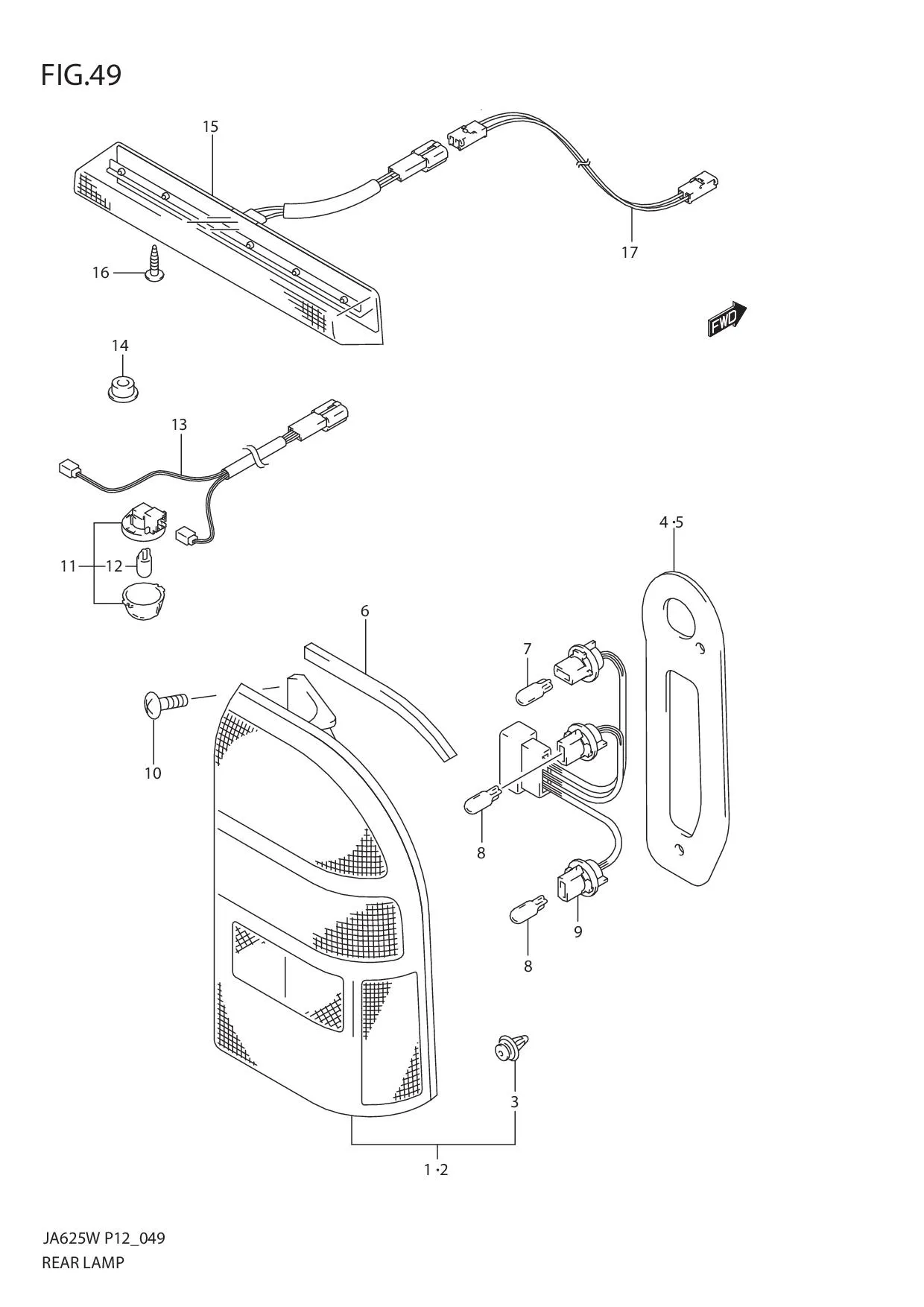

FIG.49 REAR LAMP

FIG.49 REAR LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35650-65D10-000 LAMP UNIT, RR COMBINATION RH 1 Rp1.901.000
2 35670-65D10-000 LAMP UNIT, RR COMBINATION LH 1 Rp1.901.000
3 71812-78F00-000
SUB: 71812B78F00N000		 •CLIP 4 Rp9.000
4 DISCONTINUE
SUB: 35657-65D00-000		 GASKET, LAMP UNIT RH 1 -
5 DISCONTINUE
SUB: 35677-65D00-000		 GASKET, LAMP UNIT LH 1 -
6 DISCONTINUE
SUB: 35653-65D00-000		 SEAL, LAMP UNIT 2 -
7 09471-12192-000 BULB (12V,21/5W) 2 Rp56.000
8 09471-12191-000 BULB (12V,21W) 4 Rp52.500
9 35658-65D00-000 SOCKET & CORD ASSY 2 Rp373.000
10 02142-0616B-000
SUB: 02142B06163N000		 SCREW 4 Rp5.500
11 35910-81K00-000
SUB: 35910-75F11-000		 LAMP ASSY, LICENSE 2 Rp38.500
12 09471-12216-000
SUB: 09471B12216N000		 •BULB (12V,5W) 2 Rp15.000
13 DISCONTINUE
SUB: 36843-65D00-000		 WIRE, LICENSE LAMP 1 -
14 DISCONTINUE
SUB: 09308-06009-000		 GROMMET 1 -
15 DISCONTINUE
SUB: 35810-82D10-000		 LAMP ASSY, HIGH MOUNT STOP 1 -
16 03242-0416B-000
SUB: 03242-04163-000		 SCREW 2 Rp33.500
17 DISCONTINUE
SUB: 36842-65D00-000		 WIRE, HIGH MOUNT STOP LAMP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
