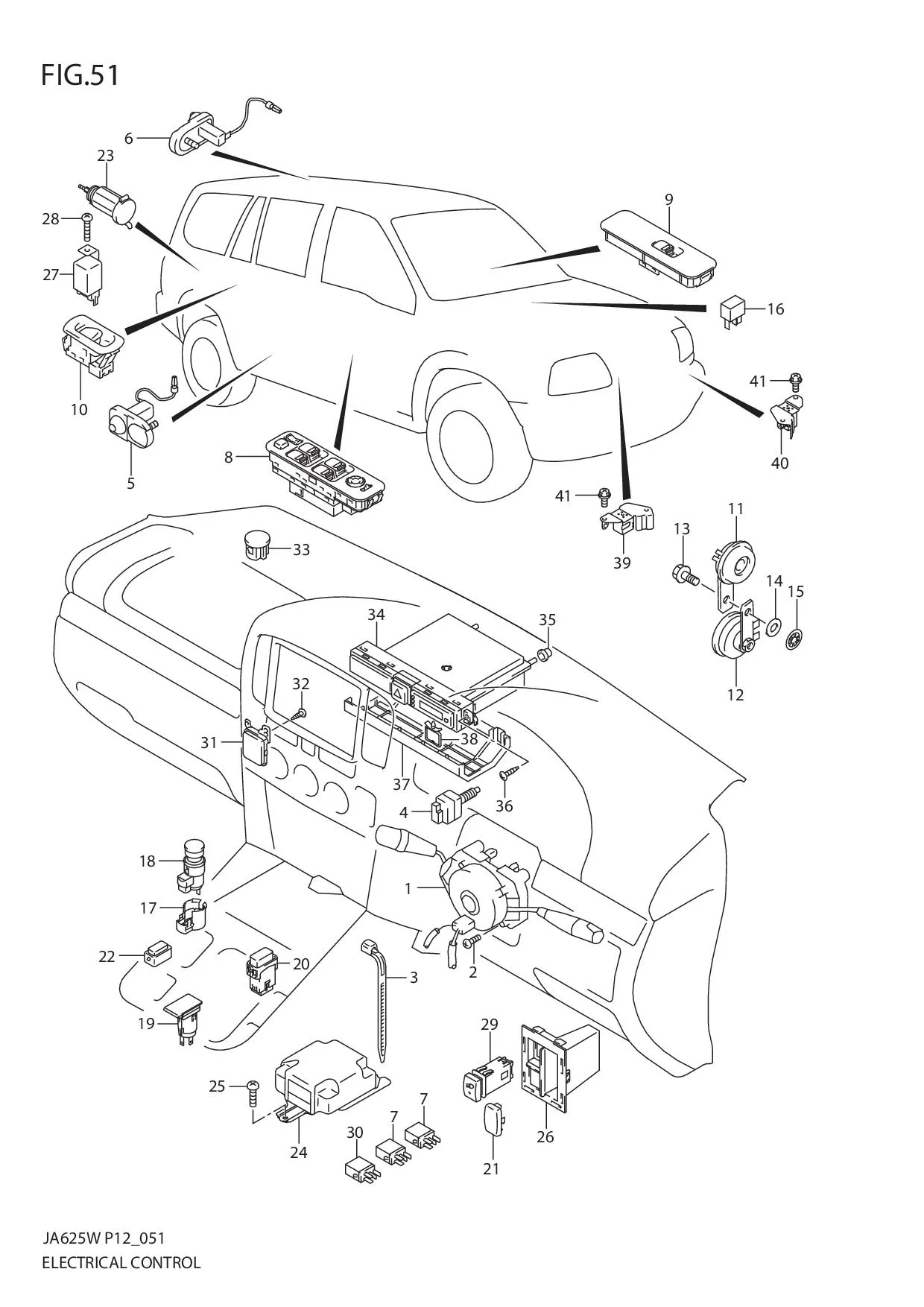

FIG.51 ELECTRICAL CONTROL

No	No. Part	Description	Qty	Price Per Pcs
1	37400-50J00-000	SWITCH ASSY, COMBINATION	1	Rp3.713.500
2	02112-0512A-000 SUB: 02112B05123N000	SCREW	3	Rp2.500
3	DISCONTINUE SUB: 09407-25401L000	CLAMP (L:235)	1	-
4	37740-61J10-000 SUB: 37740-75H20-000	SWITCH ASSY, STOP LAMP	1	Rp59.000
5	37670-65D01-000 SUB: 37670-65D00-000	SWITCH ASSY, DOOR	4	Rp109.000
6	37670-65D01-000 SUB: 37670-65D00-000	SWITCH ASSY, BACK DOOR	1	Rp109.000
7	38860-76F01-000 SUB: 38860B76F01N000	RELAY, HEAD & SIDE LAMP	2	Rp47.000
8	DISCONTINUE SUB: 37990-52J00-R9S	SWITCH ASSY, POWER WINDOW MASTER (WOOD BROWN)	1	-
9	37995-50J00-R9S	SWITCH ASSY, POWER WINDOW SUB (WOOD BROWN)	1	Rp812.000
10	37995-75F00-R8H	SWITCH ASSY, POWER WINDOW REAR (BEIGE)	2	Rp830.000
11	DISCONTINUE SUB: 38500-65D20L000	HORN ASSY, HIGH PITCHED	1	-
12	DISCONTINUE SUB: 38500-65D10L000	HORN ASSY, LOW PITCHED	1	-
13	01570-0820B-000 SUB: 01570-08203-000	BOLT	1	Rp31.000
14	DISCONTINUE SUB: 09160-08501-000	WASHER (8.5X24X2.3)	1	-
15	DISCONTINUE SUB: 38570-65D00-000	STOPPER, HORN	1	-
16	38860-76F01-000 SUB: 38860B76F01N000	RELAY, HORN	1	Rp47.000
17	39430-50J00-000	COVER, LIGHTER	1	Rp95.500
18	DISCONTINUE SUB: 39400-50J00-000	LIGHTER ASSY, CIGARETTE	1	-
19	DISCONTINUE SUB: 39410-50J00-R8H	SOCKET ASSY (BEIGE)	1	-
20	DISCONTINUE SUB: 37865-50J00-000	SWITCH ASSY, AT	1	-
21	37285-75F30-000 SUB: 37285-75F10-000	CAP, OPTION SWITCH HOLE	1	Rp37.500
22	DISCONTINUE SUB: 37285-50J00-000	CAP, OPTION SWITCH HOLE	2	-
23	DISCONTINUE SUB: 39410-60A01-000	SOCKET ASSY	1	-
24	DISCONTINUE SUB: 38910-54J00-000	CONTROLLER ASSY, AIR BAG	1	-
25	DISCONTINUE SUB: 09115-06003-000	BOLT (6X16)	1	-
26	DISCONTINUE SUB: 37211-50J10-000	BRACKET, OPTION SWITCH	1	-
27	DISCONTINUE SUB: 38860-50J00-000	RELAY, REAR WIPER	1	-
28	03141-0508A-000	SCREW	1	-
29	DISCONTINUE SUB: 37270-50J00-000	SWITCH ASSY, FRONT FOG	1	-
30	38860-76F01-000 SUB: 38860B76F01N000	RELAY, FOG LAMP	1	Rp47.000
31	DISCONTINUE SUB: 74522-54J10-5PK	CAP, RR FAN SWITCH (BLACK)	1	-
32	03541-0512A-000 SUB: 03541-05123L000	SCREW	1	Rp3.500
33	DISCONTINUE SUB: 74523-54J00-R8R	CAP, AUTO LIGHT SENSOR (BROWN)	1	-
34	36770-50J40-000	CONTROLLER ASSY, BODY ELECTRIC	1	Rp3.998.000
35	DISCONTINUE SUB: 34955-60E00-000	BUSH	2	-
36	03541-0516A-000 SUB: 03541B05163N000	SCREW	2	Rp3.500
37	DISCONTINUE SUB: 36781-50J00-000	COVER, HARNESS	1	-
38	DISCONTINUE SUB: 09403-23302-000	CLAMP	1	-
39	DISCONTINUE SUB: 38930-52D00-000	SENSOR ASSY, FORWARD RIGHT	1	-
40	DISCONTINUE SUB: 38930-52D10-000	SENSOR ASSY, FORWARD LEFT	1	-
41	DISCONTINUE SUB: 09116-06174-000	BOLT (6X16)	4	-
