  5. FIG.41 ENGINE ELECTRICAL

GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.41 ENGINE ELECTRICALFIG.42 STARTING MOTORFIG.43 GENERATORFIG.44 BATTERYFIG.45 SPEEDOMETERFIG.46 HEADLAMPFIG.47 FOG LAMPFIG.48 ROOM LAMPFIG.49 REAR LAMPFIG.50 WIRING HARNESSFIG.51 ELECTRICAL CONTROLFIG.52 LOCK SETFIG.53 FRONT WINDOW WIPERFIG.54 WINDOW WASHERFIG.55 REAR WINDOW WIPERFIG.56 RADIO

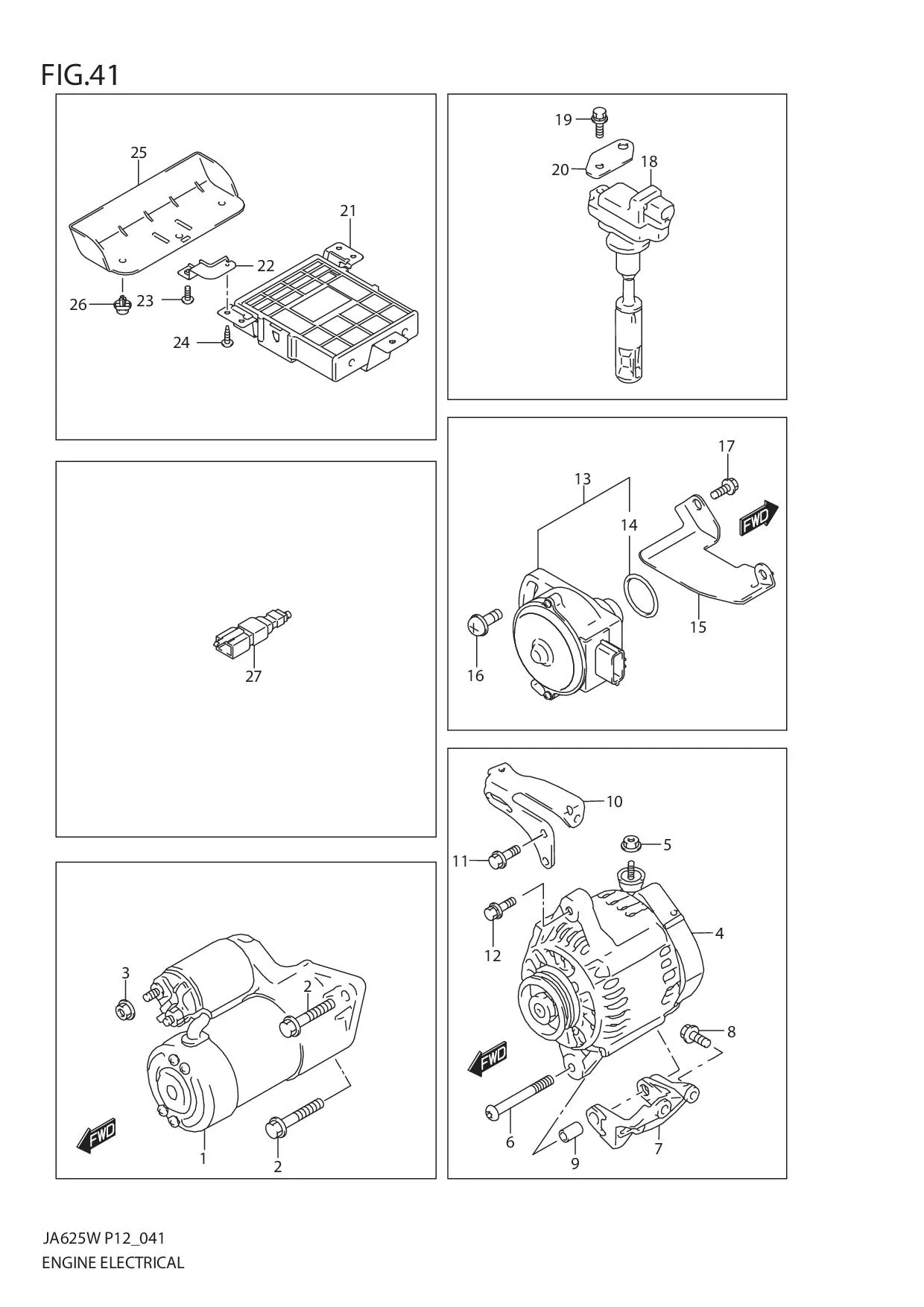

FIG.41 ENGINE ELECTRICAL

FIG.41 ENGINE ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31100-77E11-000 MOTOR ASSY, STARTING 1 Rp7.713.000
2 01550-1050B-000
SUB: 01550-10503-000		 BOLT 2 Rp24.000
3 08316-1008A-000
SUB: 08316B10083N000		 NUT 1 Rp3.500
4 31400-52D11-000
SUB: 31400-52D00-000		 GENERATOR ASSY 1 Rp10.617.000
5 08316-1006A-000
SUB: 08316-10063L000		 NUT 1 Rp2.000
6 09139-10002-000 SCREW (10X85) 1 Rp43.000
7 DISCONTINUE
SUB: 11551-77E00-000		 BRACKET, GENERATOR 1 -
8 01550-0825A-000
SUB: 01550-08253-000		 BOLT 3 Rp3.500
9 11555M60G00-000 BUSH, GENERATOR MOUNTING 1 Rp6.500
10 DISCONTINUE
SUB: 11560-67D00-000		 ARM, GENERATOR ADJUSTING 1 -
11 01550-1020A-000
SUB: 01550-10203-000		 BOLT 3 Rp21.000
12 09118M08174-000
SUB: 09118-08107-000		 BOLT (8X25) 1 Rp19.500
13 33100-77E10-000 SENSOR ASSY, CRANK ANGLE 1 Rp9.253.500
14 33278-77E10-000 •O RING 1 Rp57.500
15 DISCONTINUE
SUB: 33328-77E00-000		 COVER, SENSOR 1 -
16 09138-08003-000 SCREW (8X30) 1 Rp31.000
17 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
18 33410-77E22-000
SUB: 33410-77E21-000		 COIL ASSY, IGNITION 6 Rp1.947.000
19 01580-0520B-000
SUB: 01580-05203-000		 SCREW 6 Rp22.000
20 DISCONTINUE
SUB: 36995-77E90-000		 BRACKET, ENGINE HARNESS 4 -
21 DISCONTINUE
SUB: 33920-52J80-000		 CONTROLLER, FUEL INJECTION 1 -
22 DISCONTINUE
SUB: 33924-50J20-000		 BRACKET, CONTROLLER 1 -
23 02142-0510A-000
SUB: 02142-05103-000		 SCREW 1 Rp4.000
24 03541-0512A-000
SUB: 03541-05123L000		 SCREW 3 Rp3.500
25 DISCONTINUE
SUB: 33925-50J10-000		 COVER, FUEL INJECTION CONT 1 -
26 09409M07L01-000
SUB: 09409M07332-000		 CLIP 2 Rp5.000
27 33926-60G10-000 RESISTOR, CO ADJUSTER 1 Rp703.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
