GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.41 ENGINE ELECTRICAL FIG.42 STARTING MOTOR FIG.43 GENERATOR FIG.44 BATTERY FIG.45 SPEEDOMETER FIG.46 HEADLAMP FIG.47 FOG LAMP FIG.48 ROOM LAMP FIG.49 REAR LAMP FIG.50 WIRING HARNESS FIG.51 ELECTRICAL CONTROL FIG.52 LOCK SET FIG.53 FRONT WINDOW WIPER FIG.54 WINDOW WASHER FIG.55 REAR WINDOW WIPER FIG.56 RADIO

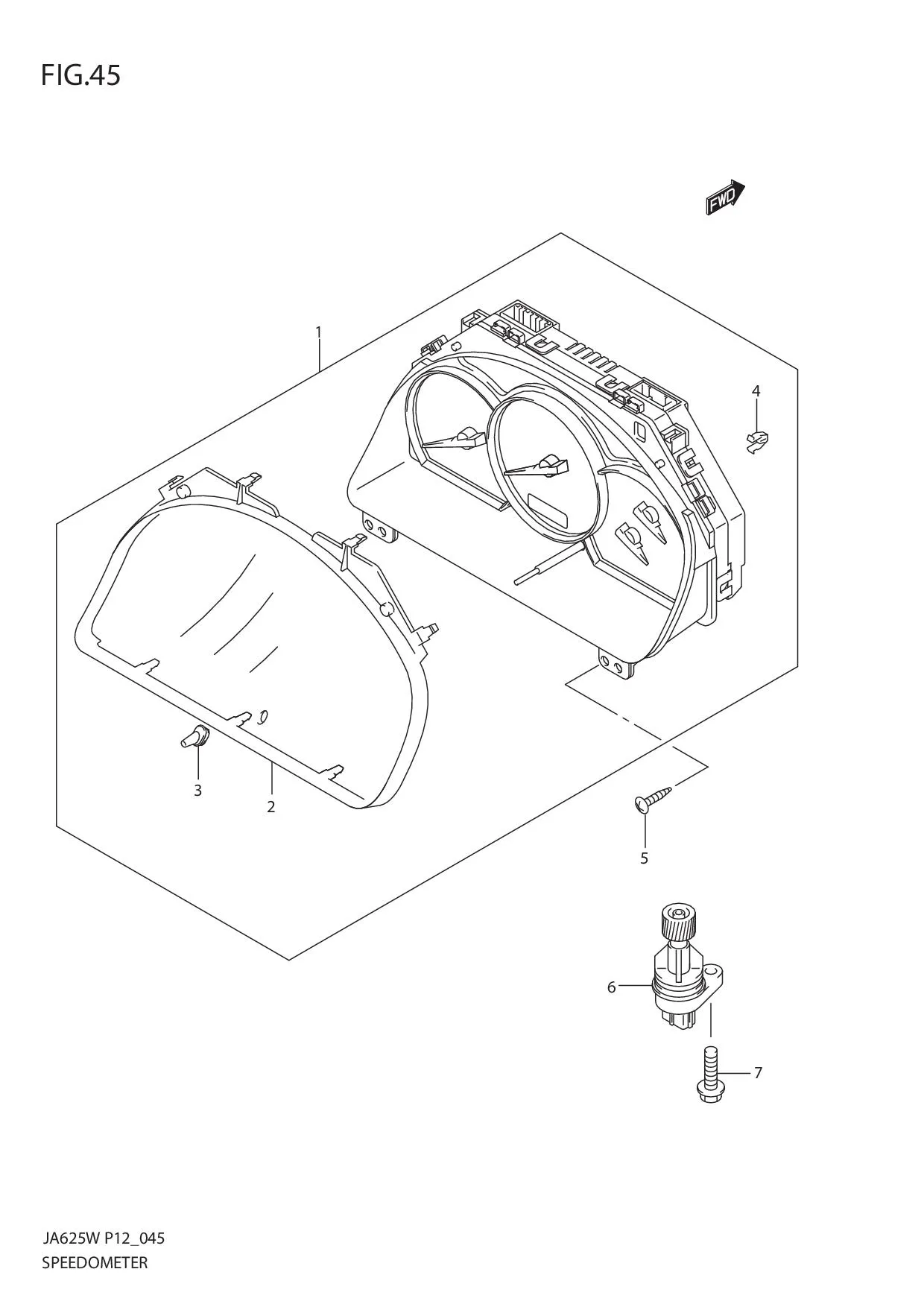

FIG.45 SPEEDOMETER

FIG.45 SPEEDOMETER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	34100-52JD2-000	SPEEDOMETER ASSY	1	-
2	DISCONTINUE SUB: 34112-50J00-000	•GLASS, METER WINDOW	1	-
3	34145-65D00-000	•COVER, TRIP KNOB	1	Rp52.500
4	09409-08326-000 SUB: 09409B08326N000	•CLIP	2	Rp8.000
5	03541-0516A-000 SUB: 03541B05163N000	SCREW	2	Rp3.500
6	34910-65D61-000 SUB: 34910-65D60-000	SENSOR ASSY, SPEED	1	Rp1.850.500
7	01550-0816A-000 SUB: 01550M08163-000	SCREW	1	Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
