GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.41 ENGINE ELECTRICALFIG.42 STARTING MOTORFIG.43 GENERATORFIG.44 BATTERYFIG.45 SPEEDOMETERFIG.46 HEADLAMPFIG.47 FOG LAMPFIG.48 ROOM LAMPFIG.49 REAR LAMPFIG.50 WIRING HARNESSFIG.51 ELECTRICAL CONTROLFIG.52 LOCK SETFIG.53 FRONT WINDOW WIPERFIG.54 WINDOW WASHERFIG.55 REAR WINDOW WIPERFIG.56 RADIO

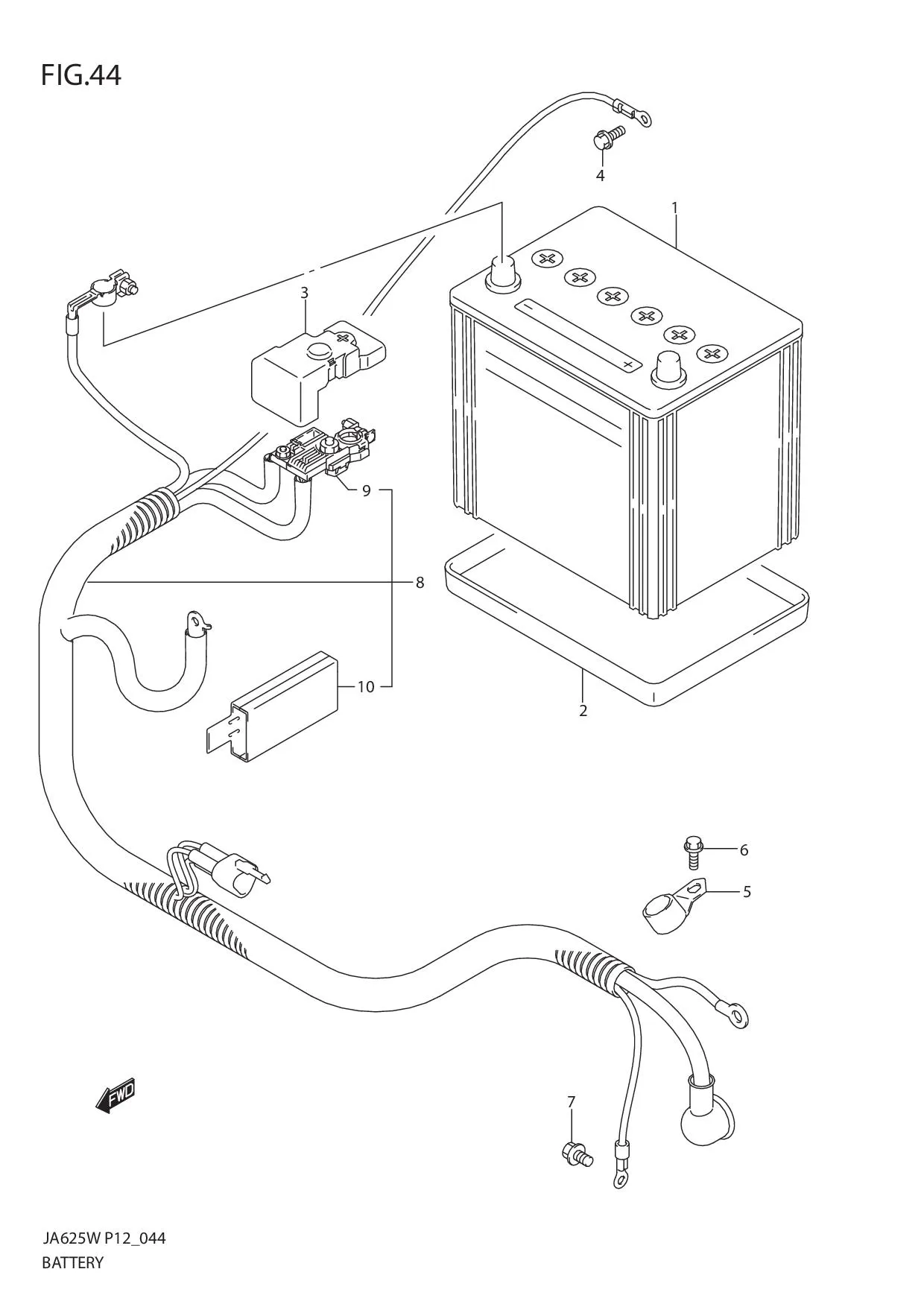

FIG.44 BATTERY

FIG.44 BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 33610-77EV8-000		 BATTERY ASSY (FB) (55D23L-MF,12V48AH/5HR) 1 -
2 33660-60G40-000 TRAY, BATTERY 1 -
3 36694-50J00-000 COVER, BATTERY TERMINAL 1 Rp132.000
4 09115-06005-000
SUB: 09115-06001-000		 BOLT, GROUND (6X16) 1 Rp14.000
5 DISCONTINUE
SUB: 36649-67D00-000		 CLAMP, HARNESS 1 -
6 01550-0616A-000
SUB: 01550-06163-000		 BOLT 1 Rp3.500
7 01550-0816A-000
SUB: 01550M08163-000		 BOLT, GROUND 1 Rp6.000
8 DISCONTINUE
SUB: 33800-52J10-000		 CABLE ASSY, BATTERY 1 -
9 36739-52J00-000 •FUSE, BATTERY CABLE 1 Rp178.500
10 DISCONTINUE
SUB: 36992-65D20-000		 PROTECTOR, BATTERY CABLE 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
