GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.41 ENGINE ELECTRICALFIG.42 STARTING MOTORFIG.43 GENERATORFIG.44 BATTERYFIG.45 SPEEDOMETERFIG.46 HEADLAMPFIG.47 FOG LAMPFIG.48 ROOM LAMPFIG.49 REAR LAMPFIG.50 WIRING HARNESSFIG.51 ELECTRICAL CONTROLFIG.52 LOCK SETFIG.53 FRONT WINDOW WIPERFIG.54 WINDOW WASHERFIG.55 REAR WINDOW WIPERFIG.56 RADIO

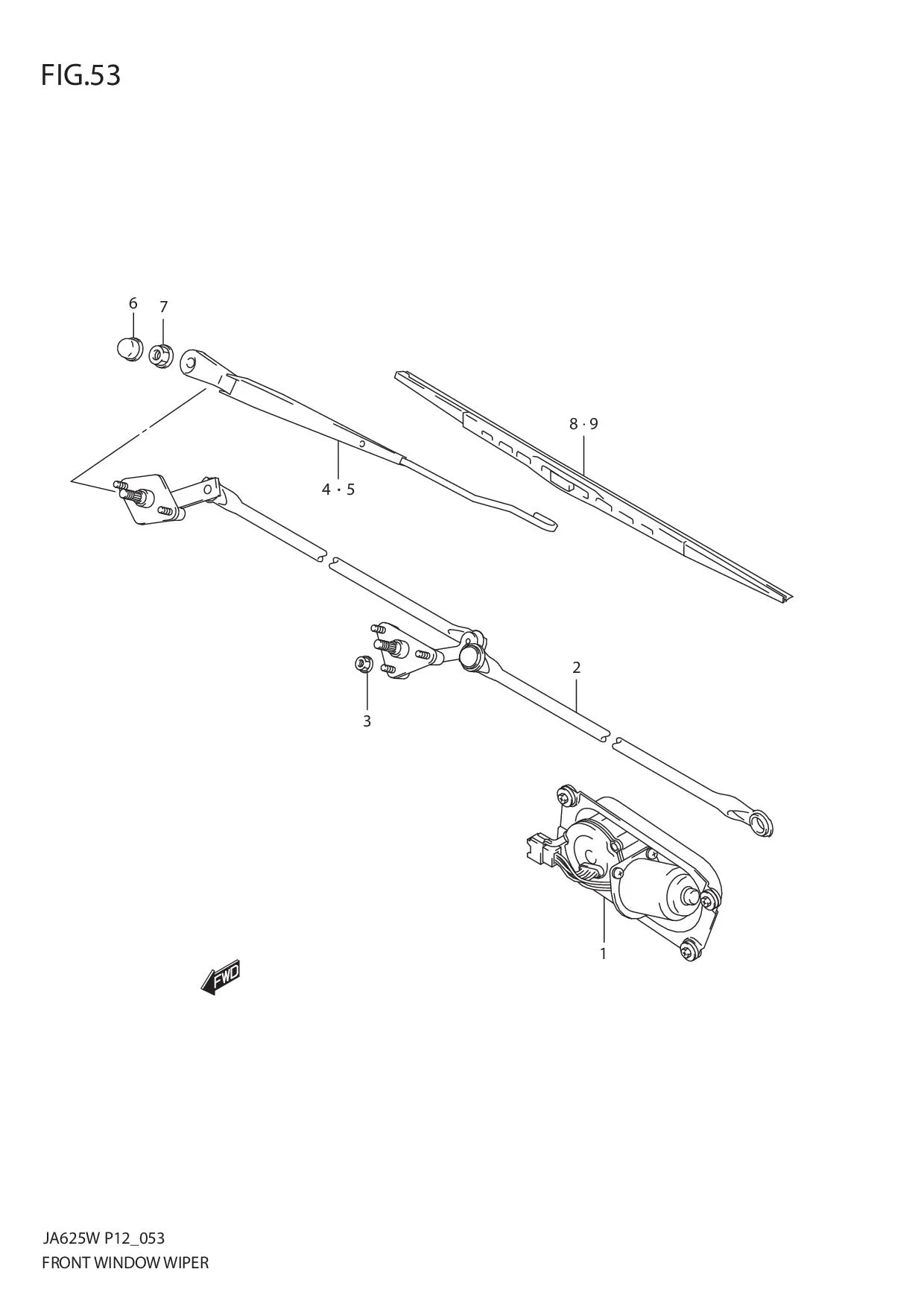

FIG.53 FRONT WINDOW WIPER

FIG.53 FRONT WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 38101-65D10-000		 MOTOR & BRACKET ASSY, WIPER 1 -
2 38102-65D10-000 LINK ASSY, WIPER 1 Rp1.073.500
3 08316-1006A-000
SUB: 08316-10063L000		 NUT 5 Rp2.000
4 38310-65D10-000 ARM ASSY, WIPER RH 1 Rp589.000
5 38330-65D10-000 ARM ASSY, WIPER LH 1 Rp592.000
6 38315-67L10-000
SUB: 38315M60B10-000		 CAP 2 Rp4.500
7 DISCONTINUE
SUB: 08310B00083N000		 NUT 2 -
8 38340-65D21-000 BLADE ASSY, WIPER RH 1 Rp214.000
9 38346-65D11-000 •BLADE, RH 1 Rp122.500
10 38340-65D31-000 BLADE ASSY, WIPER LH 1 Rp214.000
11 38346-65D11-000 •BLADE, LH 1 Rp122.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
