GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.41 ENGINE ELECTRICALFIG.42 STARTING MOTORFIG.43 GENERATORFIG.44 BATTERYFIG.45 SPEEDOMETERFIG.46 HEADLAMPFIG.47 FOG LAMPFIG.48 ROOM LAMPFIG.49 REAR LAMPFIG.50 WIRING HARNESSFIG.51 ELECTRICAL CONTROLFIG.52 LOCK SETFIG.53 FRONT WINDOW WIPERFIG.54 WINDOW WASHERFIG.55 REAR WINDOW WIPERFIG.56 RADIO

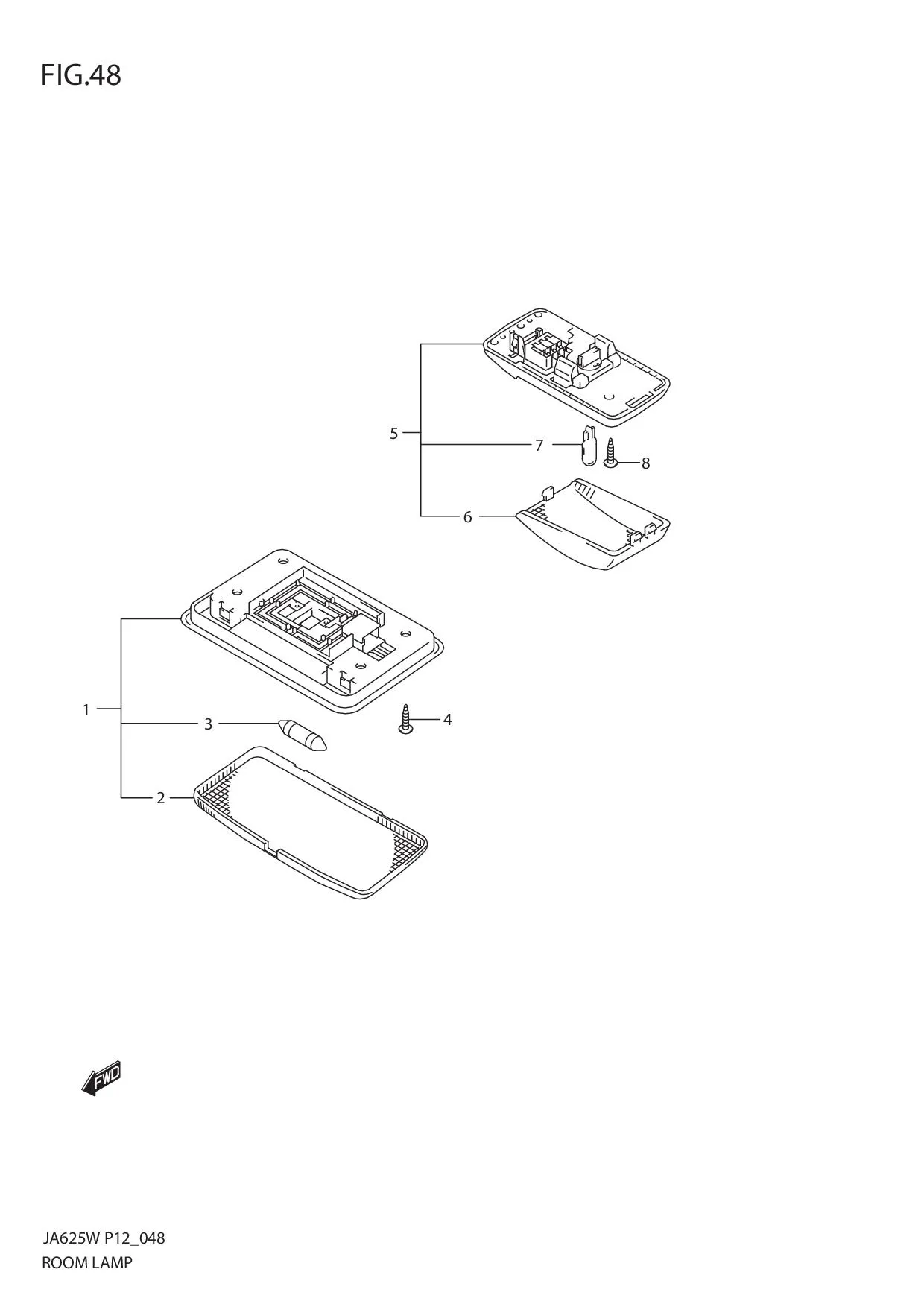

FIG.48 ROOM LAMP

FIG.48 ROOM LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 36210-60G01-R8H LAMP ASSY, ROOM (BEIGE) 1 Rp601.000
2 DISCONTINUE
SUB: 36212-60G00-000		 •LENS, ROOM LAMP 1 -
3 09471-12L04-000
SUB: 09471B12181N000		 •BULB (12V,10W) 1 Rp30.500
4 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500
5 DISCONTINUE
SUB: 36210-74F02-R8H		 LAMP ASSY, REAR ROOM (BEIGE) 1 -
6 36212-74F00-000 •LENS, REAR ROOM LAMP 1 Rp43.500
7 09471-12216-000
SUB: 09471B12216N000		 •BULB (12V,5W) 1 Rp15.000
8 03241-0516A-000
SUB: 03242-05163-000		 SCREW 1 Rp17.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
