GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.41 ENGINE ELECTRICALFIG.42 STARTING MOTORFIG.43 GENERATORFIG.44 BATTERYFIG.45 SPEEDOMETERFIG.46 HEADLAMPFIG.47 FOG LAMPFIG.48 ROOM LAMPFIG.49 REAR LAMPFIG.50 WIRING HARNESSFIG.51 ELECTRICAL CONTROLFIG.52 LOCK SETFIG.53 FRONT WINDOW WIPERFIG.54 WINDOW WASHERFIG.55 REAR WINDOW WIPERFIG.56 RADIO

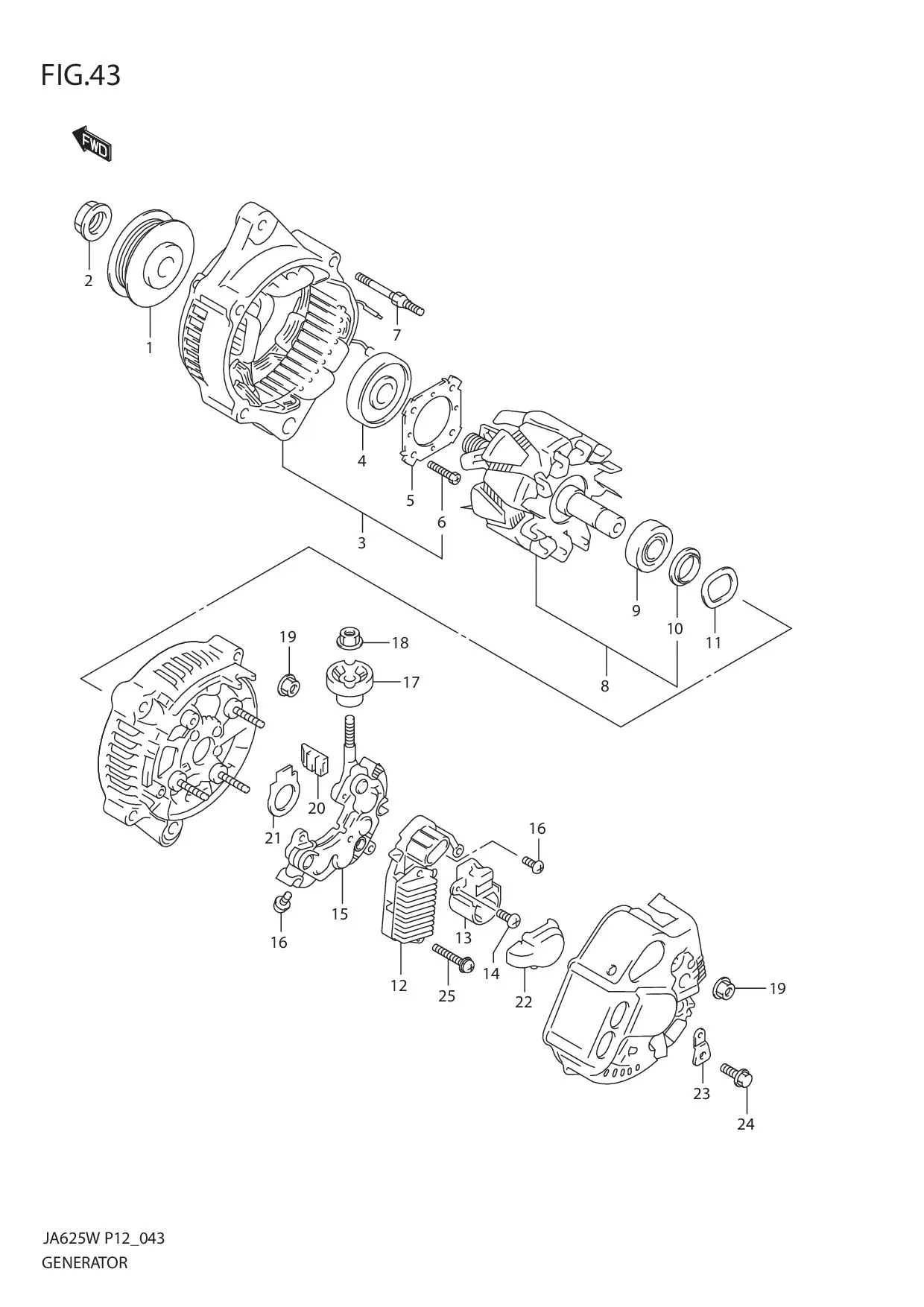

FIG.43 GENERATOR

FIG.43 GENERATOR
No No. Part Description Qty Price Per Pcs Remarks
31400-52D11-000
SUB: 31400-52D00-000		 GENERATOR ASSY 1 Rp10.617.000
1 DISCONTINUE
SUB: 31171-77E10-000		 •PULLEY 1 -
2 31775-86510-000
SUB: 31775B86510N000		 •NUT 1 Rp14.000
3 DISCONTINUE
SUB: 31580-52D00-000		 •FRAME ASSY, DRIVE END 1 -
4 31582-77E11-000
SUB: 31582-77E10-000		 ••BEARING 1 Rp390.000
5 DISCONTINUE
SUB: 31585-77E10-000		 ••RETAINER, BEARING 1 -
6 DISCONTINUE
SUB: 31586-77E10-000		 ••SCREW 4 -
7 DISCONTINUE
SUB: 31587-82110-000		 ••BOLT 4 -
8 DISCONTINUE
SUB: 31710-52D00-000		 •ROTOR ASSY 1 -
9 31612-77E11-000
SUB: 31612-77E10-000		 ••BEARING 1 Rp235.000
10 DISCONTINUE
SUB: 31613-82610L000		 ••COVER, BEARING 1 -
11 DISCONTINUE
SUB: 31615-77E10-000		 •WASHER 1 -
12 DISCONTINUE
SUB: 32500-52D00-000		 •REGULATOR ASSY 1 -
13 31656-77E10-000 •HOLDER ASSY, BRUSH 1 Rp436.500
14 DISCONTINUE
SUB: 02112-04063-000		 •SCREW 3 -
15 31621-77E10-000 •RECTIFIER ASSY 1 Rp2.457.000
16 DISCONTINUE
SUB: 31516-77E10-000		 •SCREW 4 -
17 DISCONTINUE
SUB: 31514-77E11-000		 •INSULATOR 1 -
18 08361-1506A-000
SUB: 08361-15063-000		 •NUT 1 Rp13.000
19 08316-1005A-000
SUB: 08316-10053-000		 •NUT 7 Rp2.500
20 DISCONTINUE
SUB: 31622-77E10-000		 •INSULATOR 4 -
21 DISCONTINUE
SUB: 31619-77E10-000		 •SEAL RING 1 -
22 DISCONTINUE
SUB: 31620-77E10-000		 •SEAL RING 1 -
23 DISCONTINUE
SUB: 31512-77E10-000		 •PLATE, TERMINAL 1 -
24 DISCONTINUE
SUB: 31515-77E10-000		 •SCREW 1 -
25 32642-80G10-000
SUB: 02112-74253-000		 •SCREW 2 Rp30.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
