Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT STABILIZERFRONT DRIVE SHAFT (6AT:2WD)FRONT SUSPENSION FRAMEREAR SUSPENSION (2WD)ROAD WHEEL/TIRE (N/TPMS)STEERING WHEEL (SEE NOTE 1)STEERING WHEEL (SEE NOTE 1)STEERING COLUMN STEERING UNIT PEDAL/PEDAL BRACKET BRAKE MASTER CYLINDER FRONT BRAKE PIPING REAR BRAKE PIPINGANTI LOCK BRAKE SYSTEM (2WD)FRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

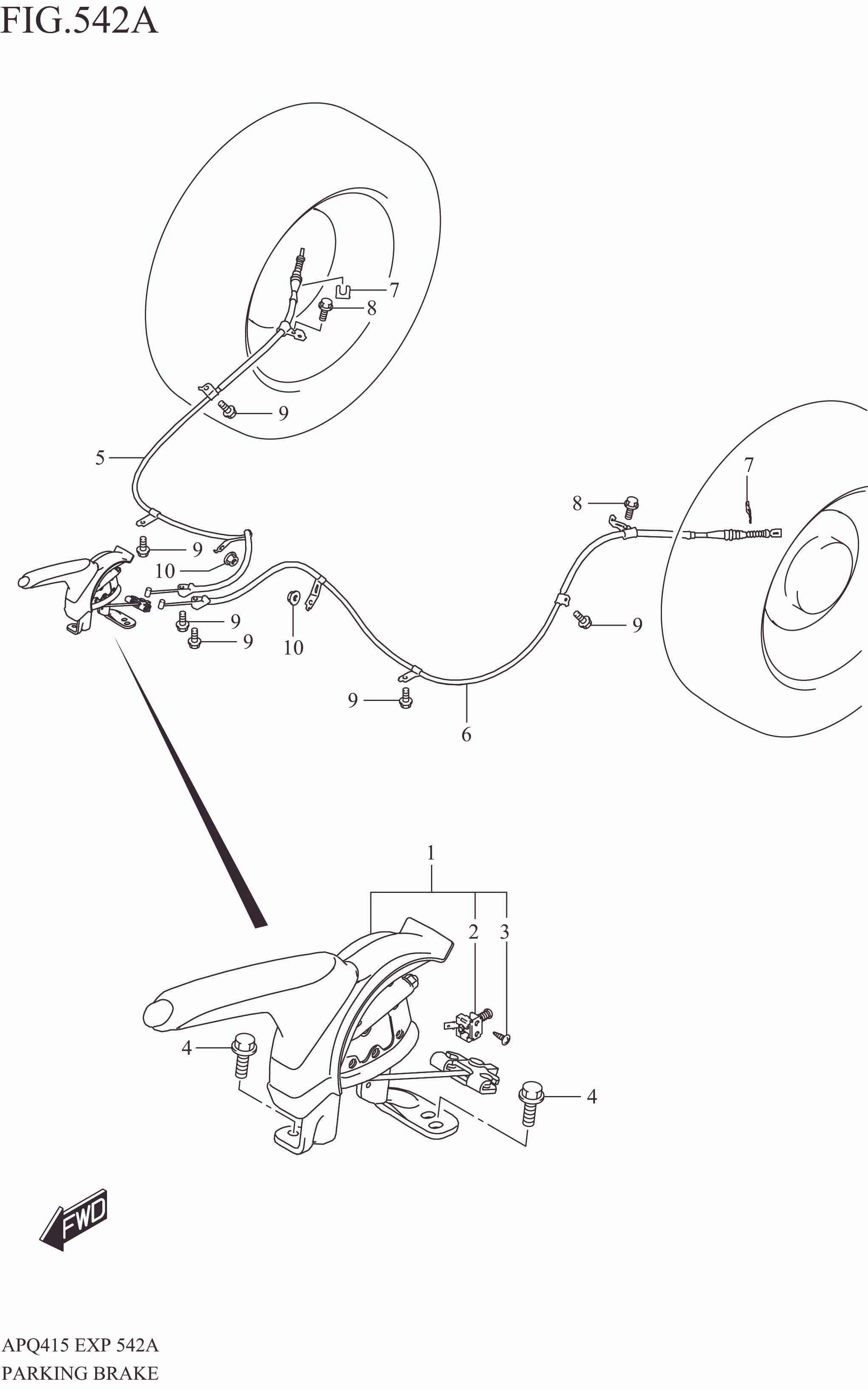

PARKING BRAKE

PARKING BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 54100M76M00-C48 LEVER ASSY, PARKING BK (CHROME/BLACK) 1 Rp493.000
2 37940-76G00-000 .SWITCH ASSY, PARKING BK 1 Rp75.500
3 54115-76G00-000 .SCREW 1 Rp16.000
4 01551-0820A-000 BOLT 2 Rp17.500
5 54401M76T00-000 CABLE, PARKING BRAKE RH 1 Rp283.500
6 54402M76T00-000 CABLE, PARKING BRAKE LH 1 Rp283.500
7 09383M13005-000 E-RING 2 Rp7.000
8 02162-0612A-000 SCREW 2 Rp11.000
9 02162-0616A-000 SCREW 6 Rp3.000
10 08316-1006A-000 NUT 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
