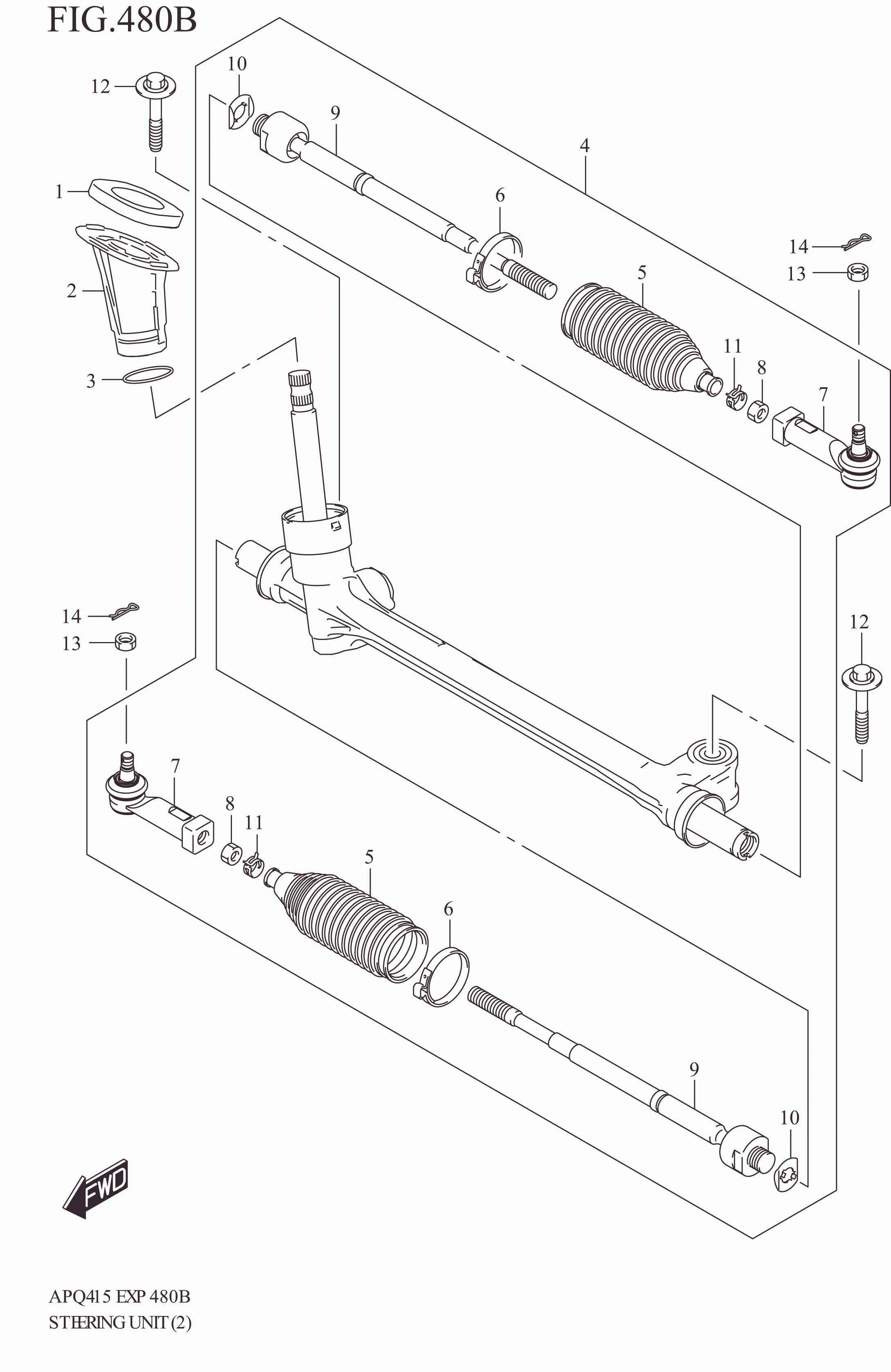

STEERING UNIT

STEERING UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 48451M61M00-000 PACKING, STRG GEAR 1 Rp51.500
2 48452M61M00-000 COVER, STRG GEAR 1 Rp68.500
3 09280-46002-000 O RING (D:2.4,ID:46.0) 1 Rp72.500
4 48500M76T00-000 BOX ASSY, STRG GEAR 1 Rp4.599.000
5 48571M74L00-000 .BOOT, STRG 2 Rp351.000
6 48575M74L00-000 .CLAMP 2 Rp57.000
7 48810M76T00-000 .END, STRG TIE-ROD 2 Rp890.500
8 48817M74L00-000 .NUT 2 Rp18.500
9 48830M76T00-000 .TIE-ROD, STRG 2 Rp1.193.000
10 48841M74L00-000 .WASHER 2 Rp17.500
11 48871M74L00-000 .CLIP 2 Rp19.000
12 09116-12010-000 BOLT (12X77) 2 Rp60.000
13 09140-12039-000 NUT (M12) 2 Rp6.500
14 09385-12002-000 PIN 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
