Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT STABILIZERFRONT DRIVE SHAFT (6AT:2WD)FRONT SUSPENSION FRAMEREAR SUSPENSION (2WD)ROAD WHEEL/TIRE (N/TPMS)STEERING WHEEL (SEE NOTE 1)STEERING WHEEL (SEE NOTE 1)STEERING COLUMN STEERING UNIT PEDAL/PEDAL BRACKET BRAKE MASTER CYLINDER FRONT BRAKE PIPING REAR BRAKE PIPINGANTI LOCK BRAKE SYSTEM (2WD)FRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

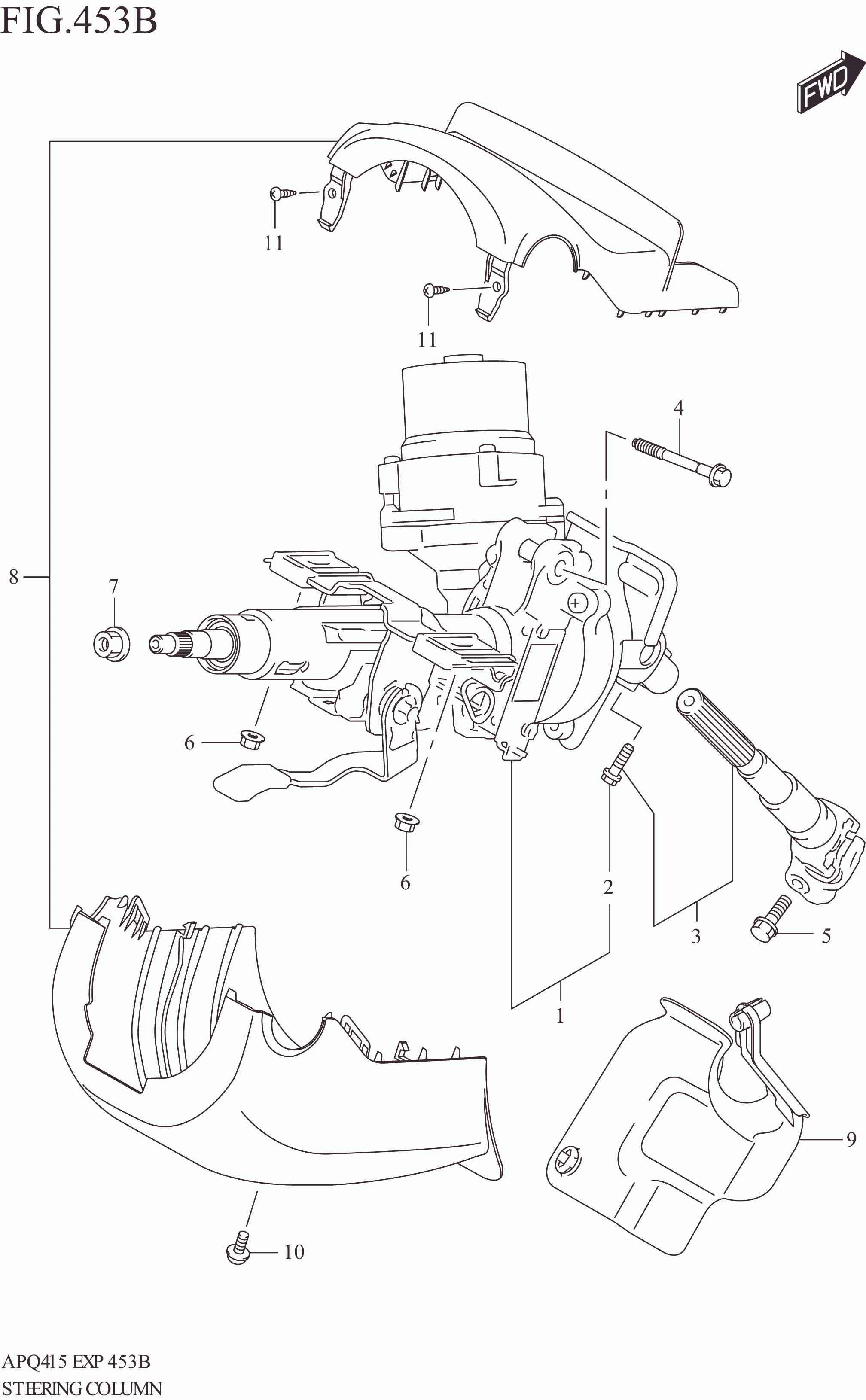

STEERING COLUMN

STEERING COLUMN
No No. Part Description Qty Price Per Pcs Remarks
1 48210M76T40-000 SHAFT ASSY, STRG COLUMN UPR 1 Rp15.087.000
2 48218M61M00-000 .PINCH BOLT 1 Rp16.000
3 48220M76T00-000 SHAFT ASSY, STRG COLUMN LWR 1 Rp1.795.000
4 48215M66T00-000 BOLT, STEERING COLUMN LOWER 1 Rp20.000
5 09117-08106-000 BOLT (8X30) 1 Rp23.500
6 08316-1008A-000 NUT 2 Rp3.500
7 08316-1012A-000 NUT 1 Rp6.500
8 48400M55T30-5PK COVER ASSY, STRG COLUMN (BLACK) 1 Rp158.000
9 48481M66T00-000 COVER, STEERING JOINT 1 Rp21.000
10 09136M05030-000 SCREW (5X12) 1 Rp4.500
11 03241M0512A-000 SCREW 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
