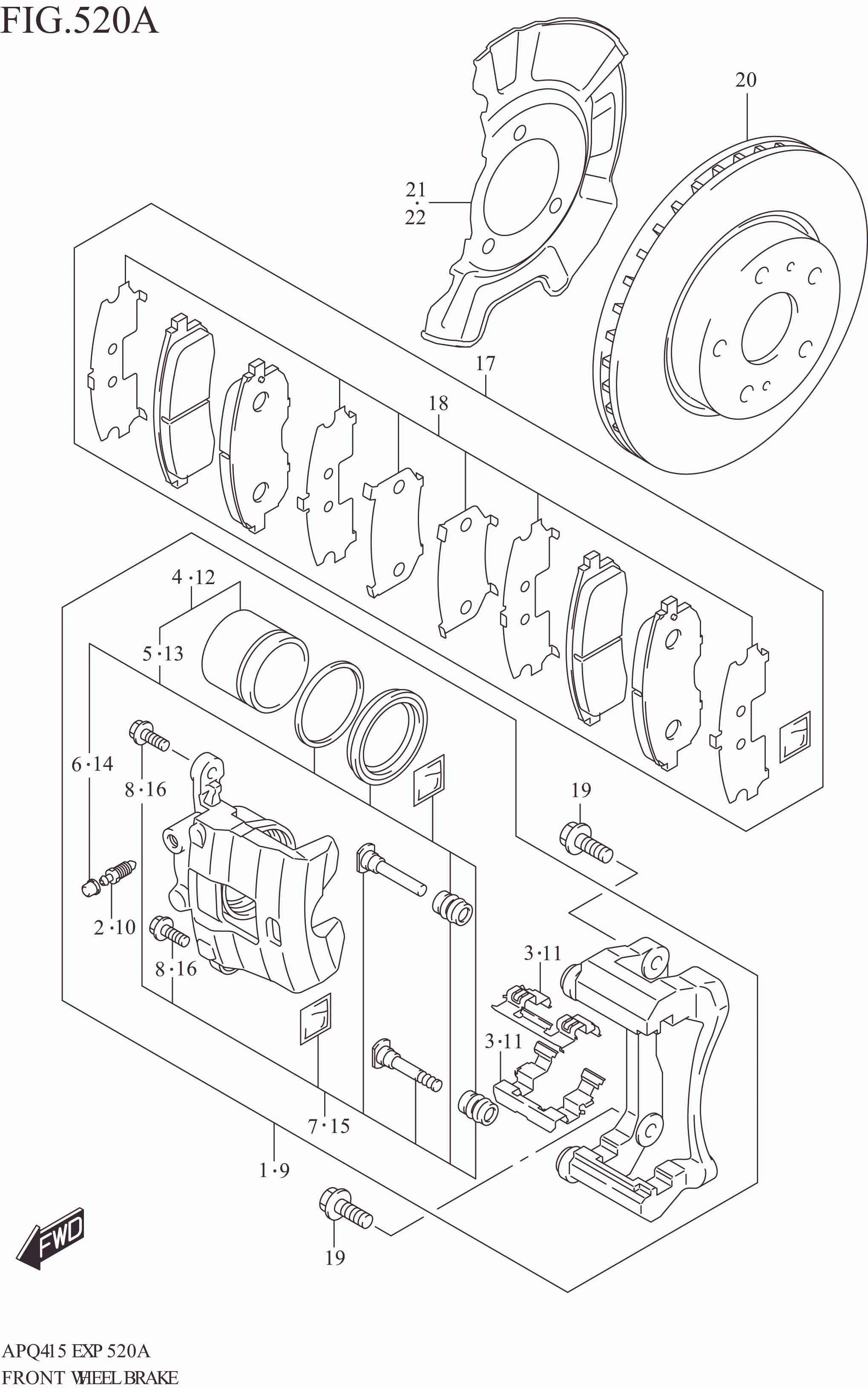

FRONT WHEEL BRAKE

FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 55101M76T00-999 CALIPER ASSY, FR BRAKE RH 1 Rp3.004.500
2 55151M55K00-000 .PLUG, BLEEDER 1 Rp11.500
3 55234M55K00-000 .SPRING, PAD 2 Rp75.500
4 55830M76T00-000 .PISTON /SEAL SET 1 Rp161.000
5 55840M76T00-000 ..SEAL SET 1 Rp73.500
6 55156M55K00-000 ...CAP, BLEEDER PLUG 1 Rp5.500
7 55850M76T00-000 .SLIDING PIN SET 1 Rp149.500
8 55206M76G00-000 ..BOLT, PIN 2 Rp21.000
9 55102M76T00-999 CALIPER ASSY, FR BRAKE LH 1 Rp3.004.500
10 55151M55K00-000 .PLUG, BLEEDER 1 Rp11.500
11 55234M55K00-000 .SPRING, PAD 2 Rp75.500
12 55830M76T00-000 .PISTON /SEAL SET 1 Rp161.000
13 55840M76T00-000 ..SEAL SET 1 Rp73.500
14 55156M55K00-000 ...CAP, BLEEDER PLUG 1 Rp5.500
15 55850M76T00-000 .SLIDING PIN SET 1 Rp149.500
16 55206M76G00-000 ..BOLT, PIN 2 Rp21.000
17 55810M76T00-000 PAD SET 1 Rp1.001.500
18 55820M55K01-000 .SHIM SET 1 Rp119.000
19 55164M74L00-000 BOLT, BRAKE CALIPER 4 Rp17.000
20 55311M55K01-000 DISC, FR BRAKE 2 Rp613.000
21 55321M76T00-000 COVER, BRAKE DISC DUST RH 1 Rp72.500
22 55322M76T00-000 COVER, BRAKE DISC DUST LH 1 Rp72.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
