Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT STABILIZERFRONT DRIVE SHAFT (6AT:2WD)FRONT SUSPENSION FRAMEREAR SUSPENSION (2WD)ROAD WHEEL/TIRE (N/TPMS)STEERING WHEEL (SEE NOTE 1)STEERING WHEEL (SEE NOTE 1)STEERING COLUMN STEERING UNIT PEDAL/PEDAL BRACKET BRAKE MASTER CYLINDER FRONT BRAKE PIPING REAR BRAKE PIPINGANTI LOCK BRAKE SYSTEM (2WD)FRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

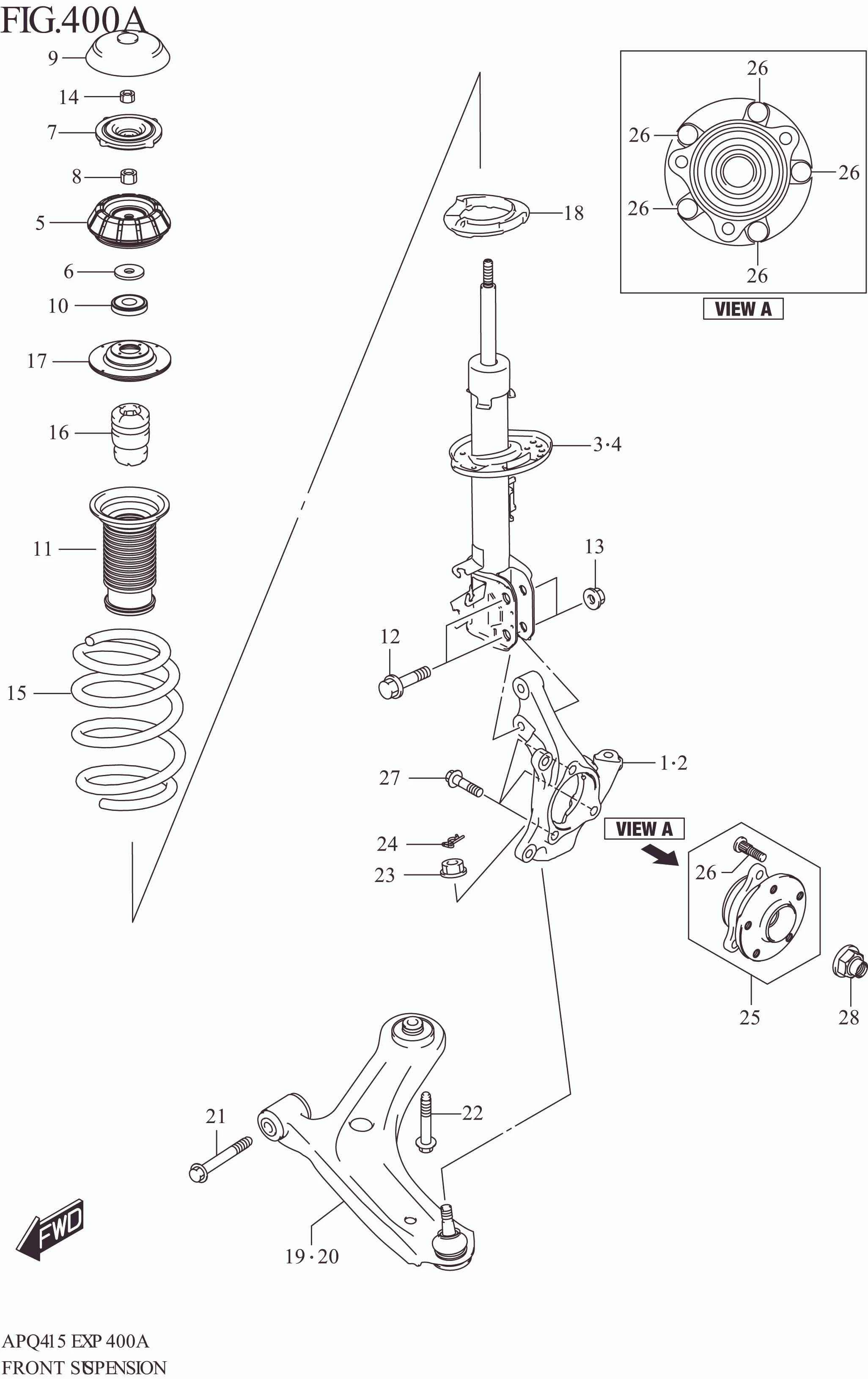

FRONT SUSPENSION

FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45111M76T00-000 KNUCKLE, STEERING RH 1 Rp1.016.000
2 45151M76T00-000 KNUCKLE, STEERING LH 1 Rp1.016.000
3 41601M76T00-000 STRUT ASSY, FRONT SPNSN RH 1 Rp1.117.000
4 41602M76T00-000 STRUT ASSY, FRONT SPNSN LH 1 Rp1.117.000
5 41710M82P00-000 SUPPORT, FR STRUT 2 Rp209.000
6 41711-66M00-000 PLATE, STRUT BEARING 2 Rp91.500
7 41720M55K00-000 STOPPER, FR STRUT REBOUND 2 Rp123.000
8 09140-12050-000 NUT (M12) 2 Rp21.000
9 41724M63J00-000 CAP, STRUT ROD 2 Rp34.500
10 41742M57K10-000 BEARING, FR STRUT 2 Rp81.000
11 41931M65M00-000 COVER, STRUT DUST 2 Rp133.500
12 09103-14032-000 BOLT (14X54) 4 Rp47.500
13 09159-14031-000 NUT (M14) 4 Rp37.000
14 08310M0012A-000 NUT 2 Rp5.000
15 41111M76T10-000 SPRING, FRONT COIL 2 Rp459.500
16 42111M65M00-000 STOPPER, FR BUMP 2 Rp240.500
17 41230M66M00-000 SEAT, FR SPRING UPR 2 Rp102.500
18 41212M65M00-000 SEAT, FR SPRING LWR 2 Rp91.500
19 45201M76T00-000 ARM ASSY, FRONT SUSPENSION RH 1 Rp723.500
20 45202M76T00-000 ARM ASSY, FRONT SUSPENSION LH 1 Rp723.500
21 45264-61M20-000 BOLT, SPNSN ARM FR BUSHING 2 Rp87.000
22 09135-14018-000 BOLT (14X85) 2 Rp70.500
23 09159-14033-000 NUT (M14) 2 Rp25.500
24 09385M14001-000 PIN 2 Rp8.000
25 43401M76T00-000 HUB ASSY, FRONT WHEEL 2 Rp1.663.000
26 43423M62S00-000 .BOLT, HUB 10 Rp19.000
27 43458M68P00-000 BOLT, WHEEL HUB HOUSING 6 Rp25.000
28 43459-68R00-000 NUT (M22) 2 Rp125.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
