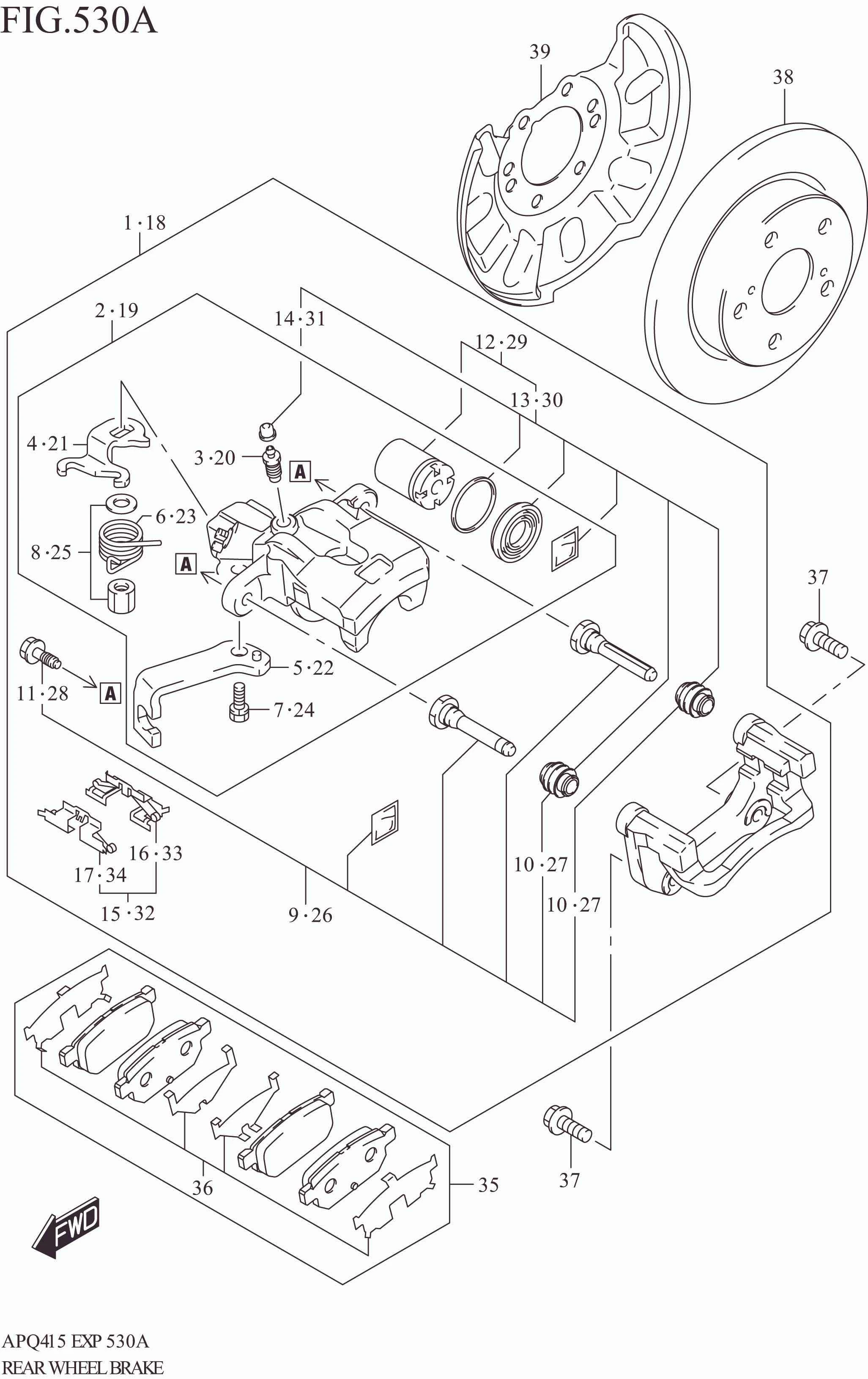

REAR WHEEL BRAKE

No	No. Part	Description	Qty	Price Per Pcs
1	55401M76T00-999	CALIPER ASSY, RR BRAKE RH	1	Rp4.387.000
2	55403M76T00-000	.HOUSING ASSY RH	1	Rp2.359.000
3	55151M55K00-000	..PLUG, BLEEDER	1	Rp11.500
4	55405M76T00-000	..LEVER	1	Rp44.500
5	55407M76T00-000	..GUIDE CABLE	1	Rp110.500
6	55409M68P00-000	..SPRING RETURN	1	Rp37.500
7	55411M68P00-000	..BOLT GUIDE	1	Rp35.500
8	55970M68P00-000	..NUT SET	1	Rp24.500
9	55850M72R00-000	.PIN/BOOT, SLIDING	1	Rp146.500
10	55201M60M00-000	..BOOT, PIN	2	Rp23.000
11	55206M76G00-000	..BOLT, PIN	2	Rp21.000
12	55940M76T00-000	.PISTON SET	1	Rp630.000
13	55930M76T00-000	..SEAL SET	1	Rp82.500
14	55156M66310-000	...CAP, BLEEDER PLUG (M10X1)	1	Rp23.500
15	55960M68P00-000	.CLIP SET	1	Rp90.500
16	55534M68P00-000	..CLIP	1	Rp47.500
17	55535M68P00-000	..CLIP	1	Rp45.500
18	55402M76T00-999	CALIPER ASSY, RR BRAKE LH	1	Rp4.387.000
19	55404M76T00-000	.HOUSING ASSY LH	1	Rp2.359.000
20	55151M55K00-000	..PLUG, BLEEDER	1	Rp11.500
21	55406M76T00-000	..LEVER	1	Rp44.500
22	55408M76T00-000	..GUIDE CABLE	1	Rp110.500
23	55410M68P00-000	..SPRING RETURN	1	Rp37.500
24	55411M68P00-000	..BOLT GUIDE	1	Rp35.500
25	55970M68P00-000	..NUT SET	1	Rp24.500
26	55850M72R00-000	.PIN/BOOT, SLIDING	1	Rp146.500
27	55201M60M00-000	..BOOT, PIN	2	Rp23.000
28	55206M76G00-000	..BOLT, PIN	2	Rp21.000
29	55940M76T00-000	.PISTON SET	1	Rp630.000
30	55930M76T00-000	..SEAL SET	1	Rp82.500
31	55156M66310-000	...CAP, BLEEDER PLUG (M10X1)	1	Rp23.500
32	55960M68P00-000	.CLIP SET	1	Rp90.500
33	55534M68P00-000	..CLIP	1	Rp47.500
34	55535M68P00-000	..CLIP	1	Rp45.500
35	55910M76T00-000	PAD SET	1	Rp738.500
36	55920M68P00-000	.SHIM SET	1	Rp58.000
37	55464M76T00-000	BOLT, BRAKE CALIPER	4	Rp46.500
38	55611M76T00-000	DISC, REAR BRAKE	2	Rp1.034.000
39	55621M65M00-000	COVER, RR BK DISC DUST	2	Rp72.500
