Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT STABILIZERFRONT DRIVE SHAFT (6AT:2WD)FRONT SUSPENSION FRAMEREAR SUSPENSION (2WD)ROAD WHEEL/TIRE (N/TPMS)STEERING WHEEL (SEE NOTE 1)STEERING WHEEL (SEE NOTE 1)STEERING COLUMN STEERING UNIT PEDAL/PEDAL BRACKET BRAKE MASTER CYLINDER FRONT BRAKE PIPING REAR BRAKE PIPINGANTI LOCK BRAKE SYSTEM (2WD)FRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

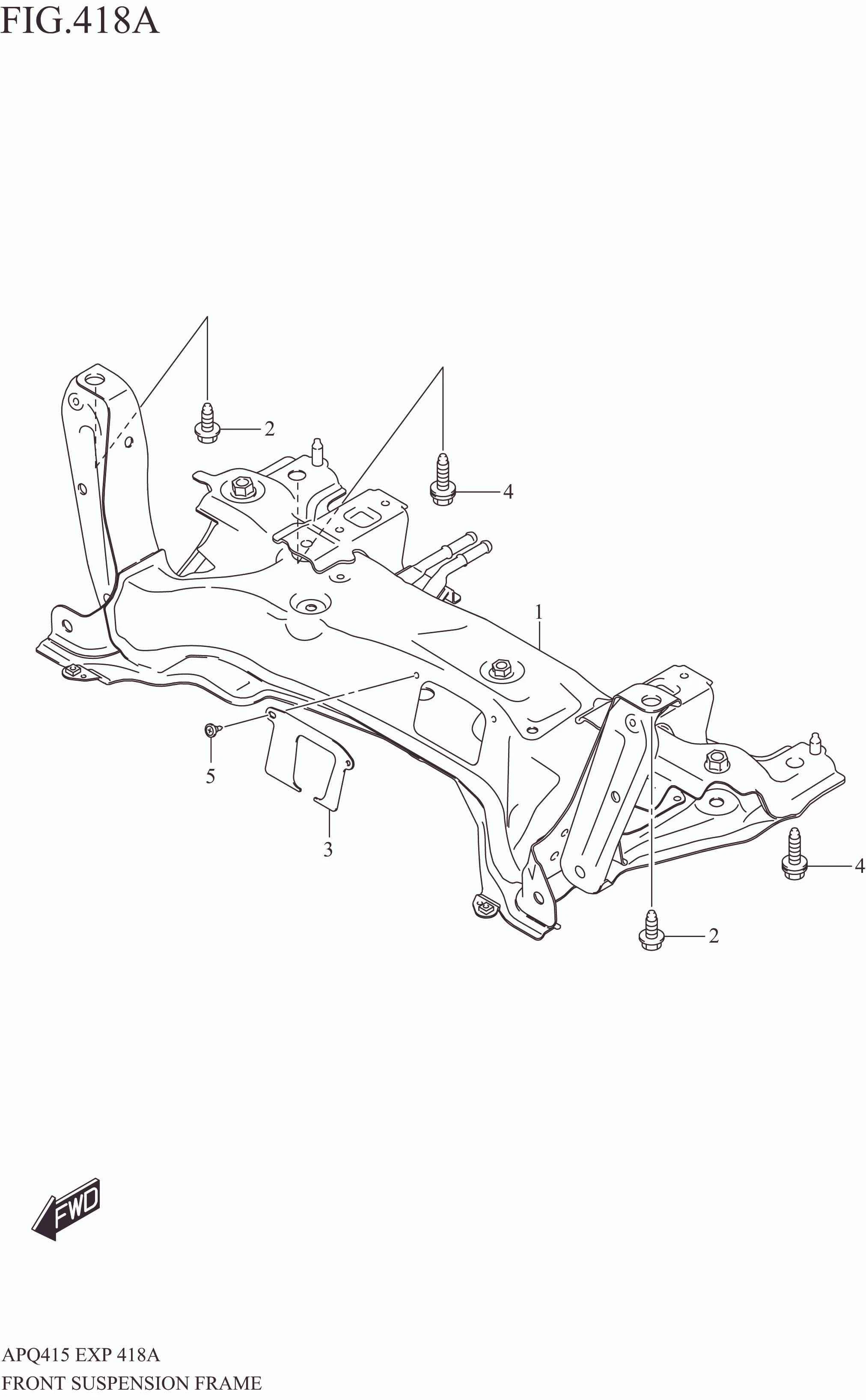

FRONT SUSPENSION FRAME

FRONT SUSPENSION FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 45810M76T00-000 FRAME, FRONT SUSPENSION 1 Rp4.186.500
2 45849-61M00-000 BOLT, FR SPNSN FRAME 2 Rp42.000
3 45851M76T00-000 COVER, TORQUE ROD 1 Rp10.500
4 09135-14017-000 BOLT (14X48) 2 Rp54.500
5 09409-06322-5PK CLIP 2 Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
