Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT STABILIZERFRONT DRIVE SHAFT (6AT:2WD)FRONT SUSPENSION FRAMEREAR SUSPENSION (2WD)ROAD WHEEL/TIRE (N/TPMS)STEERING WHEEL (SEE NOTE 1)STEERING WHEEL (SEE NOTE 1)STEERING COLUMN STEERING UNIT PEDAL/PEDAL BRACKET BRAKE MASTER CYLINDER FRONT BRAKE PIPING REAR BRAKE PIPINGANTI LOCK BRAKE SYSTEM (2WD)FRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

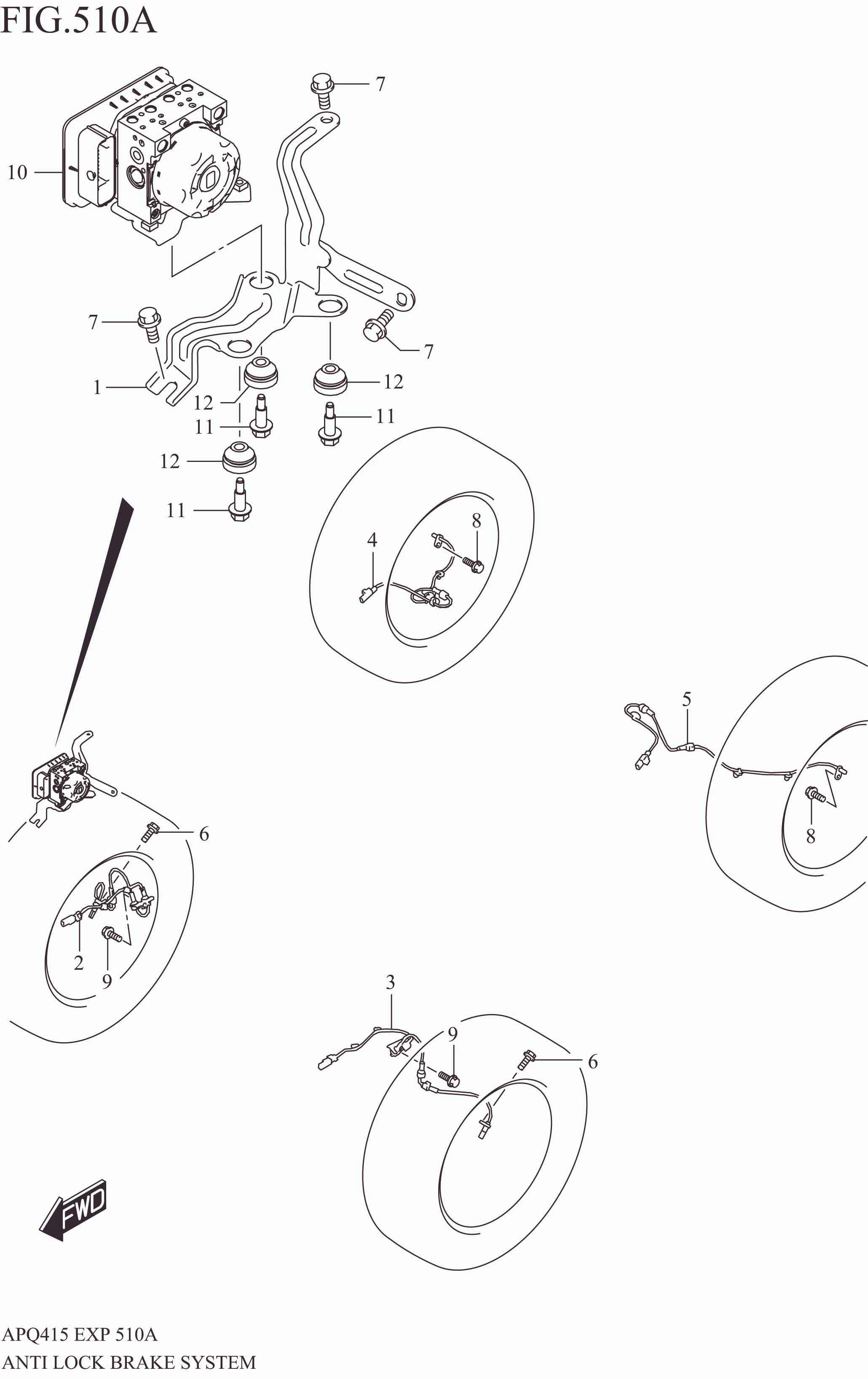

ANTI LOCK BRAKE SYSTEM (2WD)

ANTI LOCK BRAKE SYSTEM (2WD)
No No. Part Description Qty Price Per Pcs Remarks
1 56160M66T50-000 BRACKET, ACTUATOR 1 Rp82.500
2 56210M76T00-000 SENSOR, FR WHEEL RH 1 Rp231.000
3 56220M76T00-000 SENSOR, FR WHEEL LH 1 Rp231.000
4 56310M76T00-000 SENSOR, RR WHEEL RH 1 Rp199.500
5 56320M76T00-000 SENSOR, RR WHEEL LH 1 Rp199.500
6 01550M0612A-000 BOLT 2 Rp5.000
7 01551-0816C-000 BOLT 3 Rp13.500
8 02162-0612A-000 SCREW 2 Rp11.000
9 02162-0616A-000 SCREW 2 Rp3.000
10 56130M76TB0-000 ACTUATOR ASSY, ESP 1 Rp11.276.000
11 56111-75F00-000 BOLT, ACTUATOR MOUNT 3 Rp42.500
12 56112-75F00-000 DAMPER, ACTUATOR MOUNT 3 Rp40.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
