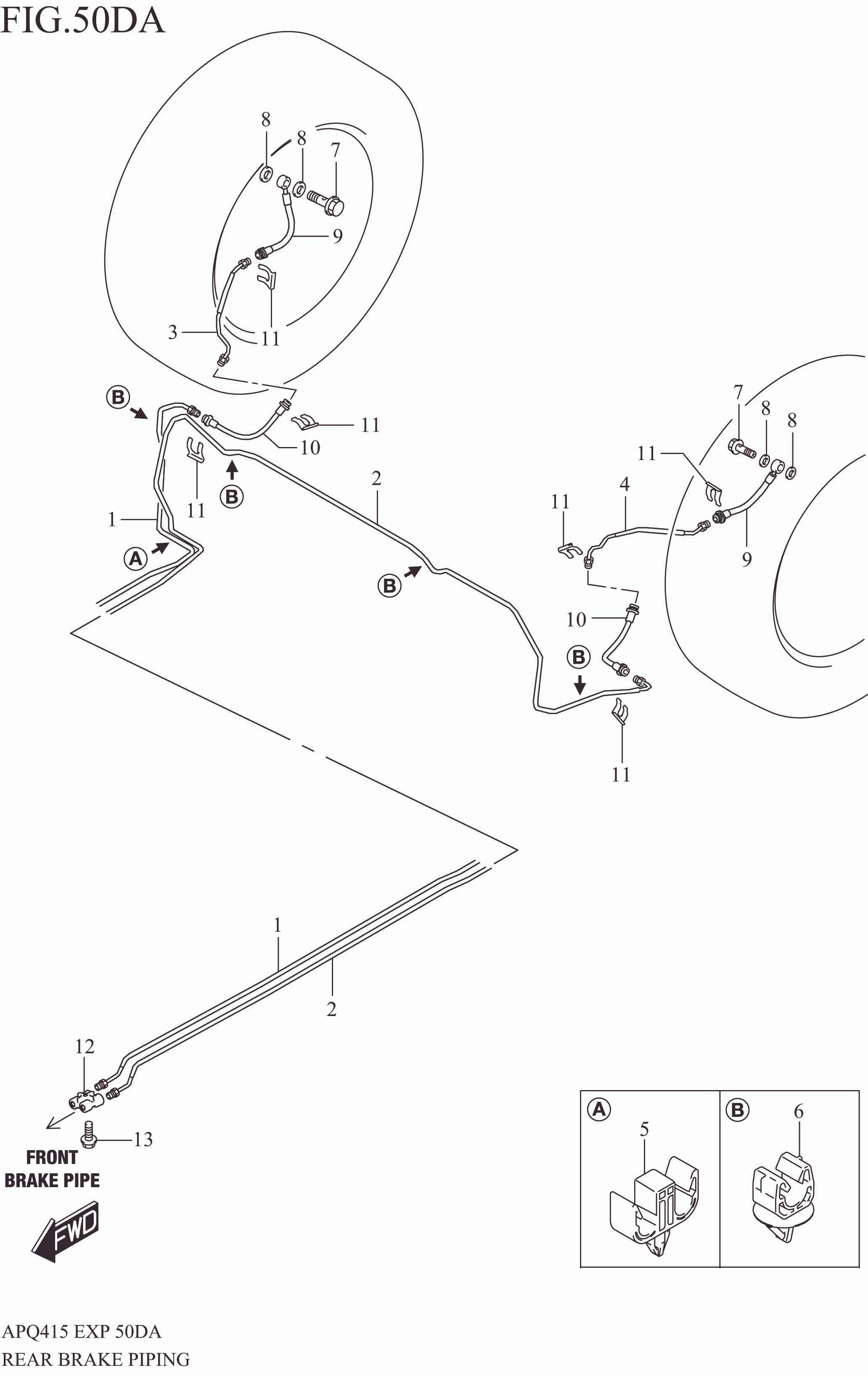

REAR BRAKE PIPING

REAR BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 51470M76T00-000 PIPE, JOINT TO RR BK HOSE RH 1 Rp120.500
2 51480M76T00-000 PIPE, JOINT TO RR BK HOSE LH 1 Rp193.500
3 51510M76T00-000 PIPE, RR BK HOSE TO CLPR HOSE RH 1 Rp39.000
4 51520M76T00-000 PIPE, RR BK HOSE TO CLPR HOSE LH 1 Rp39.000
5 51761M55K00-000 CLAMP, BK PIPE RR FL DOUBLE 1 Rp13.500
6 51761M60M20-000 CLAMP, BK PIPE 4 Rp5.500
7 51561M55K00-000 BOLT, FR DISC FLEXIBLE HOSE 2 Rp8.500
8 51562M55K00-000 WASHER, FR DISC FLEXIBLE HOSE (10X15X1.5) 4 Rp8.500
9 51570M76TA0-000 HOSE, RR DISC FLEXIBLE 2 Rp100.500
10 51570M76T00-000 HOSE, RR BRAKE FLEXIBLE 2 Rp92.500
11 09383M13004-000 E-RING 6 Rp7.000
12 51630M70F00-000 JOINT, 4WAY BRAKE 1 Rp122.000
13 02162-0625A-000 SCREW 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
