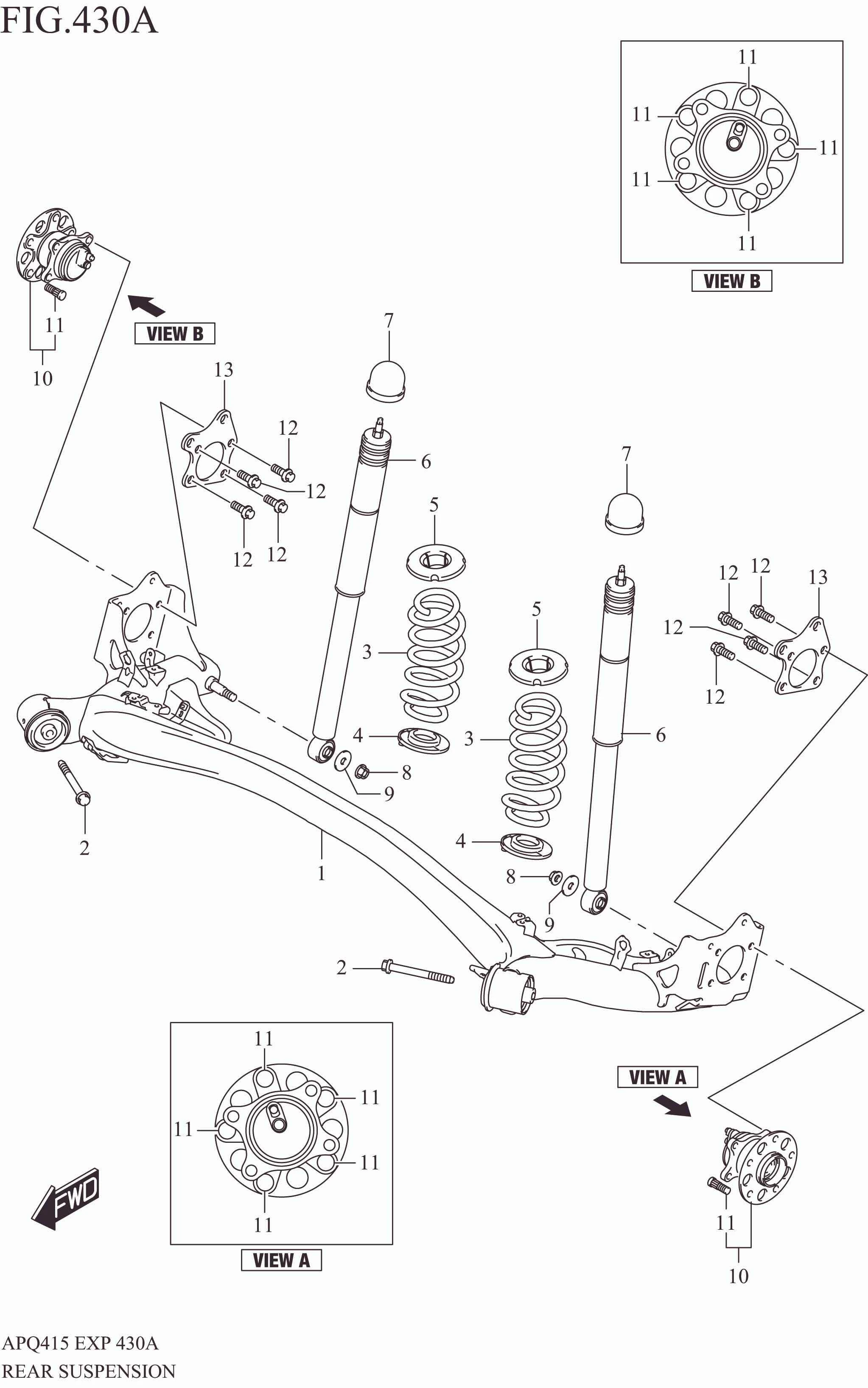

REAR SUSPENSION (2WD)

REAR SUSPENSION (2WD)
No No. Part Description Qty Price Per Pcs Remarks
1 46500M76T00-000 BEAM ASSY, REAR SPNSN 1 Rp12.151.000
2 09135M12020-000 BOLT (12X113) 2 Rp92.500
3 41311M76T00-000 SPRING, REAR COIL 2 Rp575.500
4 41312M82P00-000 SEAT, RR SPRING LOWER 2 Rp20.500
5 41341M60M00-000 SEAT, RR SPRING UPR 2 Rp50.500
6 41800M76T00-000 ABSORBER ASSY, REAR SHOCK 2 Rp950.000
7 41951M61M00-000 CAP, RR SHOCK ABSORBER 2 Rp21.500
8 46291M65M00-000 NUT, RR SHK ABS LWR 2 Rp18.500
9 09160-12109-000 WASHER (12.5X38X3.2) 2 Rp30.500
10 43402M76T00-000 HUB ASSY, REAR WHEEL 2 Rp1.650.000
11 43423M62S00-000 .BOLT, HUB 10 Rp19.000
12 43413M76T00-000 BOLT, REAR HUB MOUNTING 8 Rp30.000
13 46527M76T00-000 REINFORCEMENT, HUB CARRIER 2 Rp174.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
