GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body

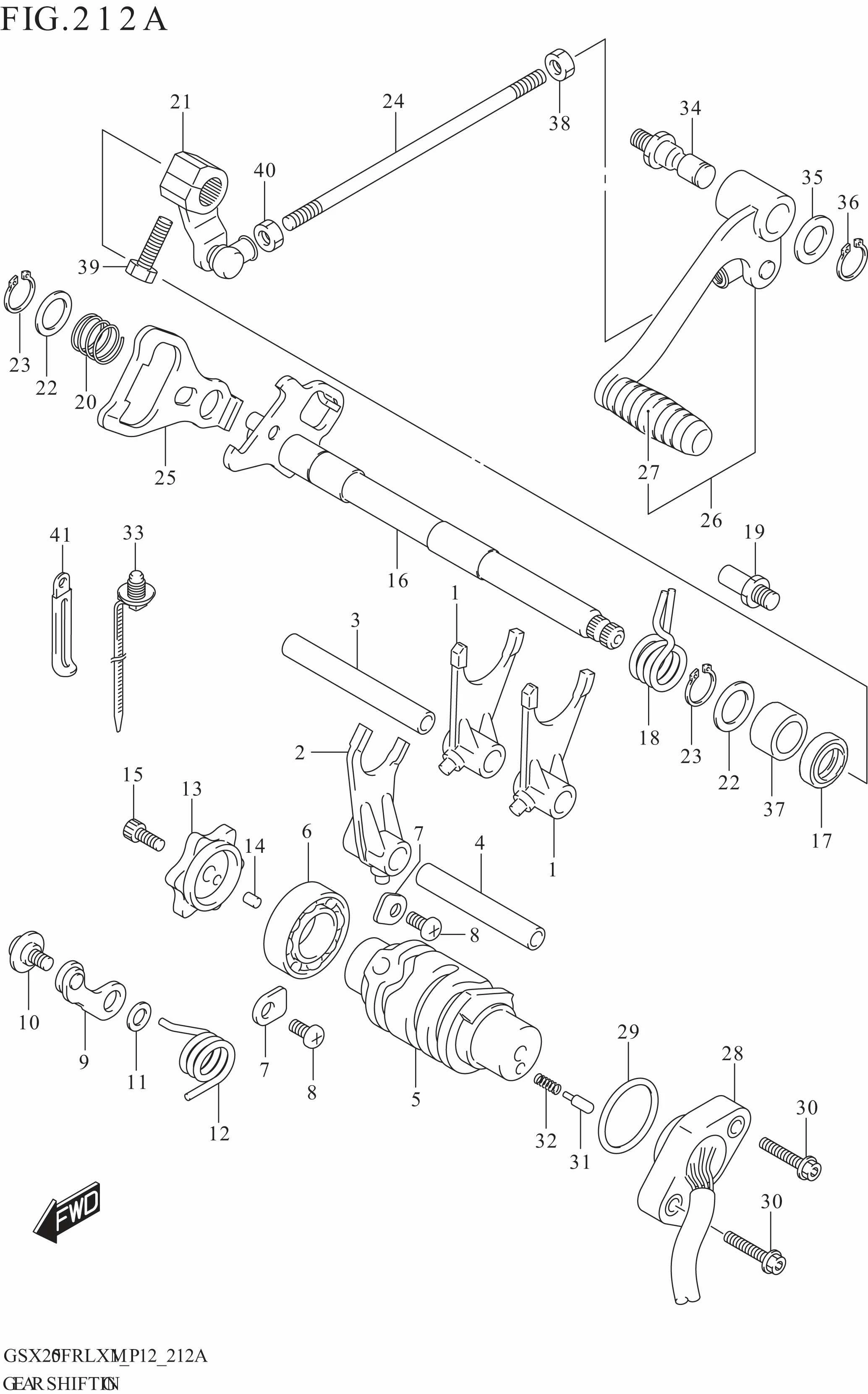

GEAR SHIFTING

No	No. Part	Description	Qty	Price Per Pcs
1	25211-14D10-000	FORK,GEAR SHIFT NO.1	2	Rp99.500
2	25231-14D10-000	FORK,GEAR SHIFT NO.3	1	Rp106.000
3	25411-48H00-000	SHAFT,GEAR SHIFT FORK NO.1	1	Rp48.500
4	25421-14D10-000	SHAFT,GEAR SHIFT FORK NO.2	1	Rp20.500
5	25311-41K00-000	CAM,GEAR SHIFT	1	Rp156.500
6	08110-6905A-000	BEARING	1	Rp77.000
7	24741-20A10-000	RETAINER,SHIFT CAM R BEARING	2	Rp3.500
8	02112-0612A-000	SCREW	2	Rp3.500
9	25350-34J20-000	STOPPER,GEAR SHIFT CAM	1	Rp49.500
10	25357-34J00-000	BOLT (6X14.3)	1	Rp6.500
11	08211-06121-000	WASHER	1	Rp7.500
12	25355-34J10-000	SPRING,GEAR SHIFT CAM STOPPER	1	Rp6.500
13	25381-34J00-000	PLATE,GEAR SHIFT CAM	1	Rp118.500
14	04221-04089-000	PIN	1	Rp3.500
15	07130-0616A-000	BOLT	1	Rp3.500
16	25510-41K00-000	SHAFT,GEAR SHIFT	1	Rp124.500
17	09283-14011-000	OIL SEAL (14X22X6)	1	Rp10.500
18	25518-34J00-000	SPRING,SHIFT SHAFT RETURN	1	Rp15.500
19	25671-28G00-000	STOPPER,GEAR SHIFT ARM	1	Rp8.500
20	25515-34J00-000	SPRING,GEAR SHIFT PLATE RETURN	1	Rp89.500
21	25520-41K00-000	ARM,GEAR SHIFT LINK	1	Rp144.500
22	09181-14167-000	SHIM (14X22X1.0)	2	Rp13.000
23-2	08331-3114A-000	CIRCLIP	2	Rp12.500
23-1	08331-31149-000	CIRCLIP	2	Rp7.500
24	25525-41K00-000	ROD,GEAR SHIFT LINK	1	Rp27.000
25	25512-28G10-000	PLATE,GEAR SHIFT CAM DRIVE	1	Rp33.000
26	25600-41K00-000	LEVER ASSY,GEAR SHIFT	1	Rp206.500
27	25652-05J00-000	.RUBBER,GEAR SHIFT LEVER	1	Rp11.500
28	37720-41K00-000	BASE ASSY,GEAR SHIFT TERM	1	Rp271.500
29	09280-26005-000	O-RING (D:2.4,ID:26.2)	1	Rp3.000
30	07130-0520A-000 SUB: 07120-0520A-000	BOLT	2	Rp5.500
31	09209-05011-000	PIN (5X15.5)	2	Rp5.500
32	09440-04010-000	SPRING	2	Rp3.000
33	09407-15L01-000	CLAMP (L:170)	1	Rp14.500
34	25617-03F20-000	SHAFT,GEAR SHIFT LEVER	1	Rp85.500
35	09160-12011-000	WASHER (12.5X20X1.0)	1	Rp10.500
36	08331-3112A-000	CIRCLIP	1	Rp13.000
37	09263-14036-000	BEARING,GEAR SHIFT SHAFT	1	Rp44.000
38	09140-06025-000	NUT	1	Rp7.000
39	01500-0620B-000	BOLT	1	Rp3.000
40	08310-0006A-000	NUT	1	Rp2.500
41	09404-06429-000	CLAMP (L:45)	1	Rp15.000
