GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL COVER,CYLINDER HEADCYLINDER HEADCYLINDERCRANKCASECRANKCASE COVERCRANKSHAFTSTARTER CLUTCHCRANK BALANCERCAMSHAFT/VALVEMUFFLEROIL PUMPCAM CHAINTHROTTLE BODYAIR CLEANERFUEL PUMPOIL COOLERCLUTCHTRANSMISSIONGEAR SHIFTING

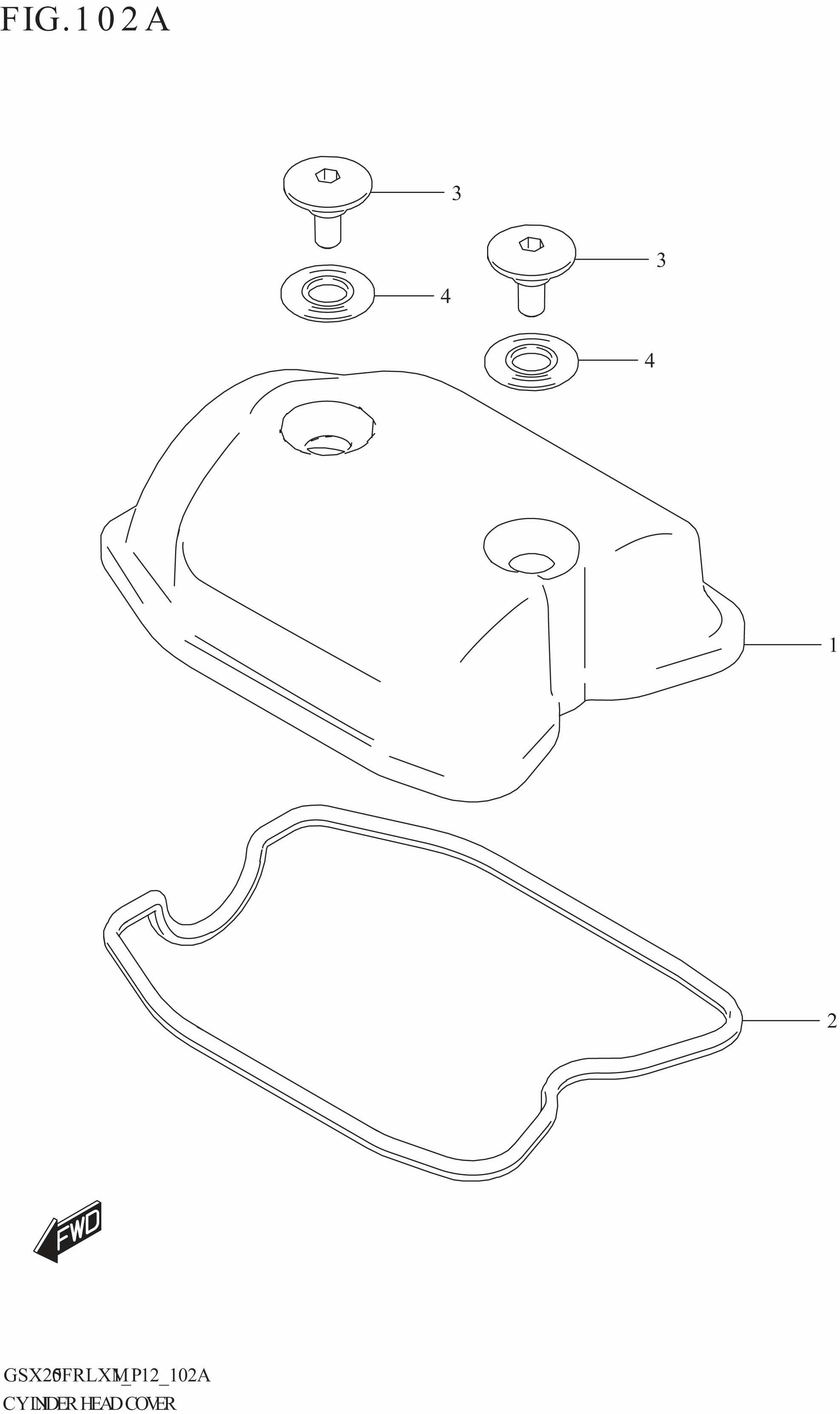

COVER,CYLINDER HEAD

COVER,CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11171-41K00-000 COVER,CYLINDER HEAD 1 Rp275.000
2 11173-41K00-000 GASKET,CYL HEAD COVER 1 Rp23.500
3 09106-07027-000 BOLT,CYL HEAD COVER 2 Rp23.000
4-1 11191-27E00-000 WASHER,CYL HEAD COVER (L:5.5) 2 Rp30.500
4-2 11191-27E70-000 WASHER,HEAD COVER BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
