Preview Engine Transmission Electrical Suspension Body

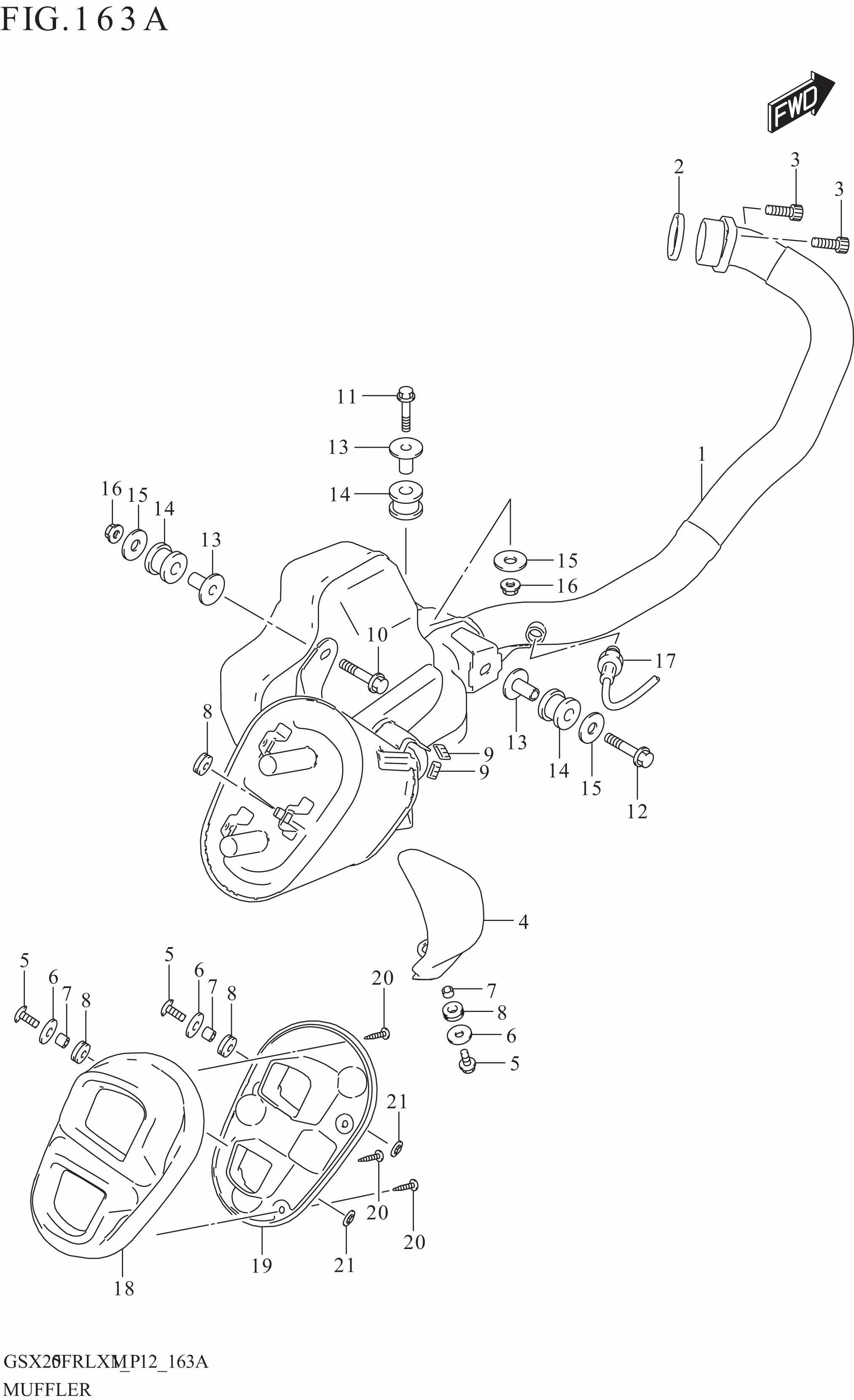

No	No. Part	Description	Qty	Price Per Pcs
1	14310-41K01-000 SUB: 14310-41K00-000	BODY,MUFFLER	1	Rp7.880.500
2	14181-14D10-000	GASKET,EXHAUST PIPE (NA)	1	Rp30.500
3	07130-0825A-000	BOLT	2	Rp4.000
4	14780-41K00-000	COVER,MUFFLER	1	Rp201.500
5	09139-06198-000	SCREW,MUF COVER (6X16)	3	Rp15.500
6	DISCONTINUE SUB: 09160-06503-000	WASHER (6.5X22X1.6)	3	-
7	09180-06256-000	SPACER (6.5X9X5.7)	3	Rp3.000
8	09320-08504-000	CUSHION,MUF COVER	4	Rp9.500
9	14795-10FA0-000	GROMMET	2	Rp5.500
10	01550-0845B-000	BOLT	1	Rp6.500
11	01550-0845B-000	BOLT	1	Rp6.500
12	09103-08558-000	BOLT,MUF SPRT RH	1	Rp21.500
13	09180-10164-000	SPACER,MUF SPRT	3	Rp22.000
14	09320-14027-000	CUSHION,MUF SPRT	3	Rp33.000
15	09160-08174-000	WASHER,MUF SPRT	3	Rp92.500
16	08319-3108A-000	NUT	2	Rp4.000
17	18213-41K01-000	SENSOR,OXYGEN	1	Rp1.233.500
18	14791-41K00-000	COVER,MUF RR NO.1	1	Rp700.500
19	14792-41K00-000	COVER,MUF RR NO.2	1	Rp115.500
20	03241-0412B-000	SCREW	3	Rp15.500
21	09148-05083-000	NUT	2	Rp16.000
