GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL COVER,CYLINDER HEADCYLINDER HEADCYLINDERCRANKCASECRANKCASE COVERCRANKSHAFTSTARTER CLUTCHCRANK BALANCERCAMSHAFT/VALVEMUFFLEROIL PUMPCAM CHAINTHROTTLE BODYAIR CLEANERFUEL PUMPOIL COOLERCLUTCHTRANSMISSIONGEAR SHIFTING

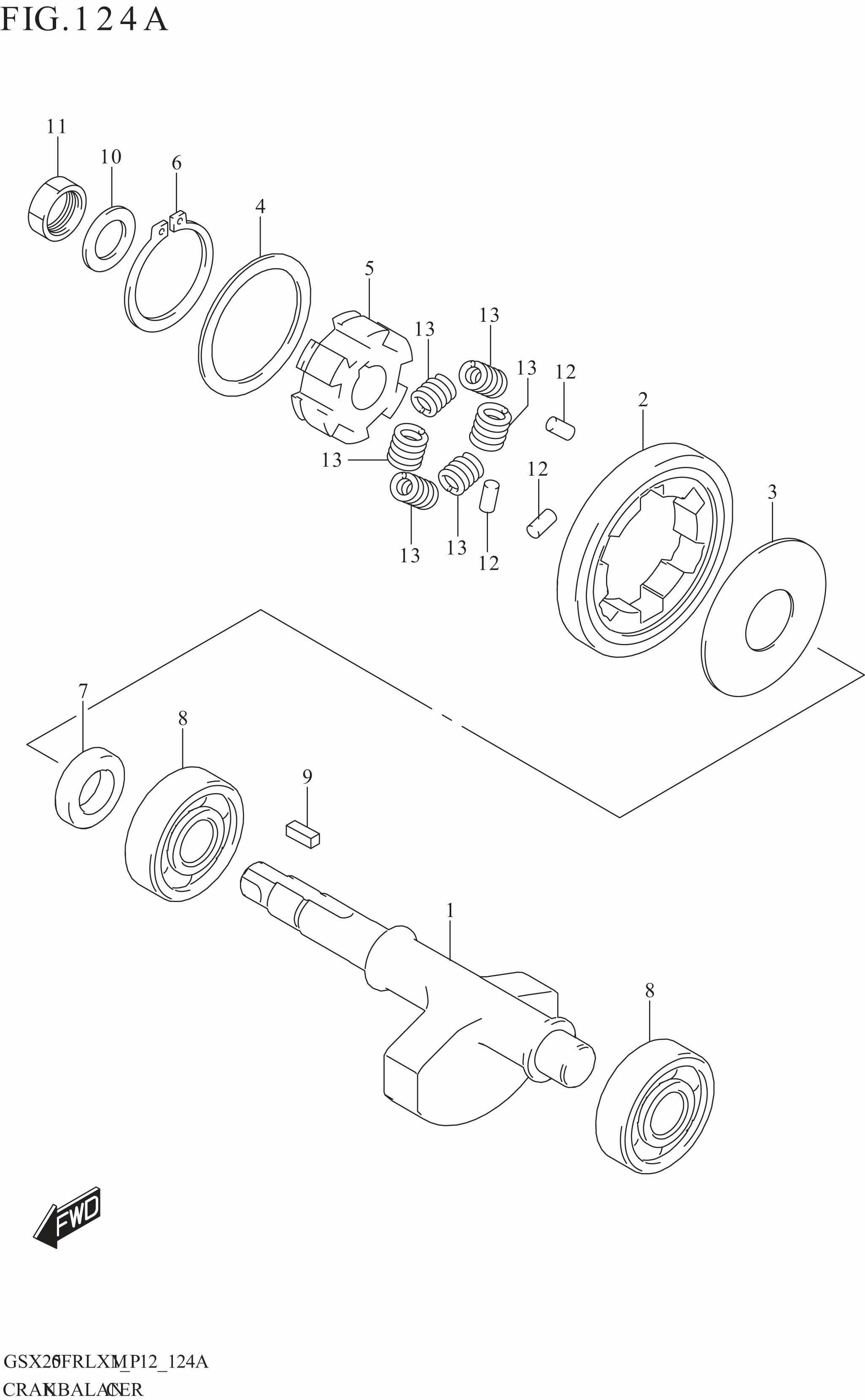

CRANK BALANCER

CRANK BALANCER
No No. Part Description Qty Price Per Pcs Remarks
1 12651-41K00-000 BALANCER,CRANK 1 Rp292.500
2 12666-41K00-000 GEAR,CRK BAL DRIVEN (NT:44) 1 Rp428.500
3 12662-41K00-000 WASHER,CRK BAL DRIVEN GR NO.1 1 Rp24.000
4 12662-41K10-000 WASHER,CRK BAL DRIVEN GR NO.2 1 Rp22.500
5 12669-41K00-000 RACE,CRK BAL DRIVEN GEAR INNER 1 Rp131.000
6 08331-31409-000 CIRCLIP 1 Rp9.000
7 12668-34J00-000 SPACER,DRIVEN GEAR (NT:19) 1 Rp21.000
8 09262-15060-000 BEARING 2 Rp209.000
9 09421-05011-000 KEY,CRANK BALANCER DRIVE GEAR 1 Rp14.500
10 08211-14242-000 WASHER (NT:24) 1 Rp5.500
11 09140-14022-000 NUT (NT:24) 1 Rp9.000
12 DISCONTINUE
SUB: 09202-04017-000		 PIN (4.5X9.5) 3 -
13 12663-41K00-000 SPRING,CRANK BAL DRIVEN GEAR 6 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
