GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body

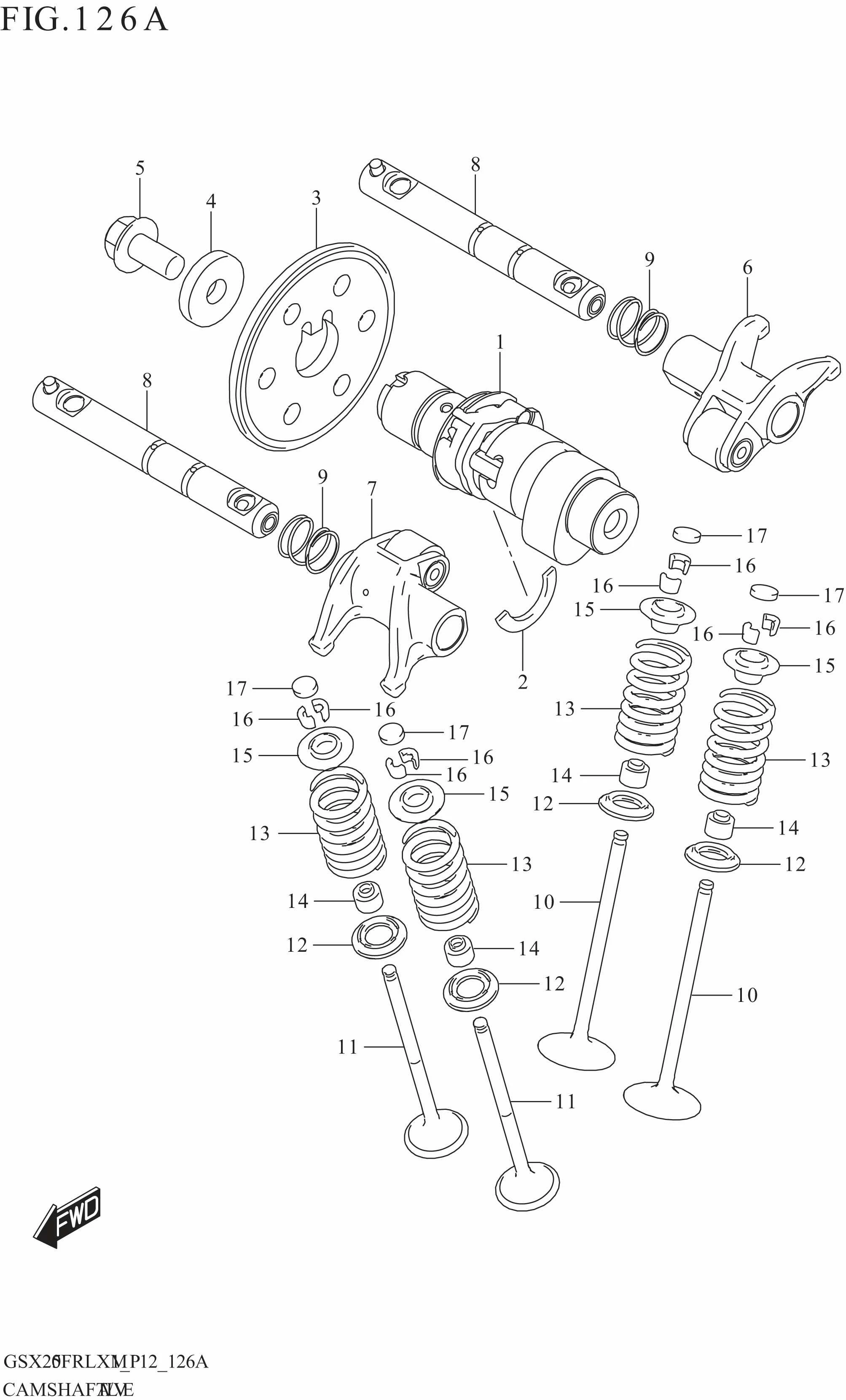

CAMSHAFT/VALVE

No	No. Part	Description	Qty	Price Per Pcs
1	12710-41K00-000	CAMSHAFT ASSY	1	Rp728.000
2	09390-22002-000	C RING	1	Rp11.500
3	12741-41K00-000	SPROCKET,CAMSHAFT (NT:34)	1	Rp55.000
4	09160-08176-000	WASHER,SPROCKET	1	Rp16.000
5	12742-41K00-000	BOLT,SPROCKET	1	Rp29.000
6	12841-41K00-000	ARM,VALVE ROCKER INTAKE	1	Rp213.000
7	12851-41K00-000	ARM,VALVE ROCKER EXHAUST	1	Rp213.000
8	12860-41K00-000	SHAFT,VALVE ROCKER ARM	2	Rp47.500
9	12867-41K00-000	SPRING,VALVE ROCKER ARM	2	Rp5.000
10	12911-41K00-000	VALVE,INTAKE	2	Rp66.000
11	12912-41K00-000	VALVE,EXHAUST	2	Rp107.000
12	12933-09G00-000	SEAT,VALVE SPRING	4	Rp9.000
13	12921-41K00-000	SPRING,VALVE	4	Rp30.000
14	09289-05019-000	OIL SEAL (4X10X8)	4	Rp39.000
15	12931-41K00-000	RETAINER,VALVE SPRING	4	Rp36.500
16	12932-09G00-000 SUB: 12932-09G10-000	COTTER,VALVE (NT:23)	8	Rp4.500
17-19	12892-35G00-195	SHIM,TAPPET (T:1.95)	4	Rp35.500
17-18	12892-35G00-192	SHIM,TAPPET (T:1.92)	4	Rp36.500
17-17	12892-35G00-190	SHIM,TAPPET (T:1.90)	4	Rp35.500
17-16	12892-35G00-188	SHIM,TAPPET (T:1.88)	4	Rp36.500
17-15	12892-35G00-185	SHIM,TAPPET (T:1.85)	4	Rp36.500
17-14	12892-35G00-182	SHIM,TAPPET (T:1.82)	4	Rp36.500
17-13	12892-35G00-180	SHIM,TAPPET (T:1.80)	4	Rp36.500
17-12	12892-35G00-178	SHIM,TAPPET (T:1.78)	4	Rp36.500
17-11	12892-35G00-175	SHIM,TAPPET (T:1.75)	4	Rp36.500
17-10	12892-35G00-172	SHIM,TAPPET (T:1.72)	4	Rp36.500
17-9	12892-35G00-170	SHIM,TAPPET (T:1.70)	4	Rp36.500
17-8	12892-35G00-168	SHIM,TAPPET (T:1.68)	4	Rp36.500
17-7	12892-35G00-165	SHIM,TAPPET (T:1.65)	4	Rp36.500
17-6	12892-35G00-162	SHIM,TAPPET (T:1.62)	4	Rp36.500
17-5	12892-35G00-160	SHIM,TAPPET (T:1.60)	4	Rp36.500
17-4	12892-35G00-158	SHIM,TAPPET (T:1.58)	4	Rp36.500
17-3	12892-35G00-155	SHIM,TAPPET (T:1.55)	4	Rp36.500
17-2	12892-35G00-152	SHIM,TAPPET (T:1.52)	4	Rp36.500
17-1	12892-35G00-150	SHIM,TAPPET (T:1.50)	4	Rp30.500
